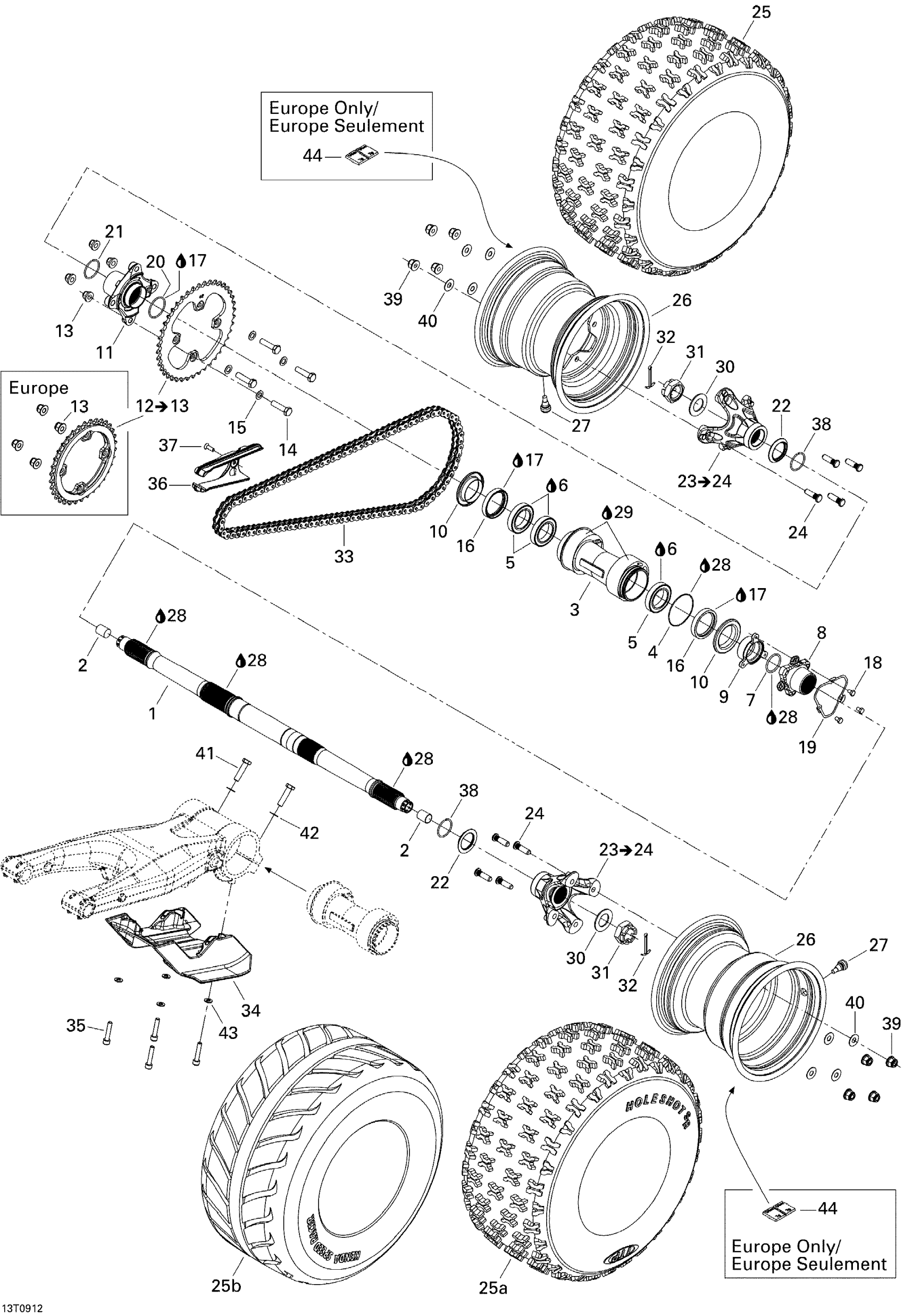

Can-Am DS 450 EFI, 2009 Drive System, Rear Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

705501079

$496.12

2

CAP - Call your local BRP dealership

293730044

$5.68

3

CHAIN TIGHTENER - Call your local BRP dealership

705501014

Unavailable

4

O-Ring

293300115

$2.63

5

Ball Bearing

293350053

$36.12

6

Loctite 609, 10 ml

413703100

$24.58

7

O-RING - Call your local BRP dealership

293300089

$6.52

8

Brake Disc Hub

705500646

$92.28

9

NUT M40 - Call your local BRP dealership

705500649

$23.82

10

Wear Ring

705500648

$16.89

11

Wheel Hub

705501161

$129.20

12

SPROCKET KIT, 42 TEETH - Call your local BRP dealership

715000592

Unavailable

12

Sprocket Kit, 34 Teeth

715000643

Unavailable

13

Hex. Flange Elastic Nut M10

233201414

$1.26

14

Hex. Screw M10 X 40

207004036

$1.56

15

Flat Washer

250200084

$2.76

16

Oil Seal

293250164

$13.83

17

Synthetic Grease, 400 G

293550010

Unavailable

18

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161034

Unavailable

19

LOCK WASHER - Call your local BRP dealership

705500669

$6.49

20

O-RING - Call your local BRP dealership

293300099

$4.86

21

RING RETAINER - Call your local BRP dealership

705500108

$5.52

22

SUPPORT RING - Call your local BRP dealership

705500663

Unavailable

23

Rear Wheel Hub Ass'y | Includes 23 to 24

705501075

$129.20

24

Wheel Stud

250000138

Unavailable

25a

TIRE_20X10R9 REAR - Call your local BRP dealership

705500787

Unavailable

25b

TIRE_20X11R9 REAR - Call your local BRP dealership

705500970

Unavailable

26

RIM_9 INCH X 8,5 - Call your local BRP dealership

705500668

$114.99

27

Rim Valve With Cap

705400193

$6.69

28

Graisse *Grease

293550062

$15.35

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

FLAT WASHER - Call your local BRP dealership

250200087

$6.88

31

Hex. Castlellated Nut M27

250100093

$10.00

32

COTTER PIN - Call your local BRP dealership

250400028

Unavailable

33

Chain

705500948

$106.12

33

CHAIN - Call your local BRP dealership

705501060

$92.28

34

Rear Skid Plate

705500660

$36.89

35

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

36

Chain Slider

705501422

$16.12

37

Socket Head Screw M6, Scotch Grip

205862034

$2.06

38

RING RETAINER - Call your local BRP dealership

705500065

$5.68

39

Flange Nut M10

250100105

$5.49

40

Flat Washer

250200080

$2.06

41

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

42

Flat Washer

250200084

$2.76

43

Flat Washer 8 mm

234081410

$0.69

44

Self Adhesive Weight, 5G 20mm

705502106

$4.35

44

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

$2.42
