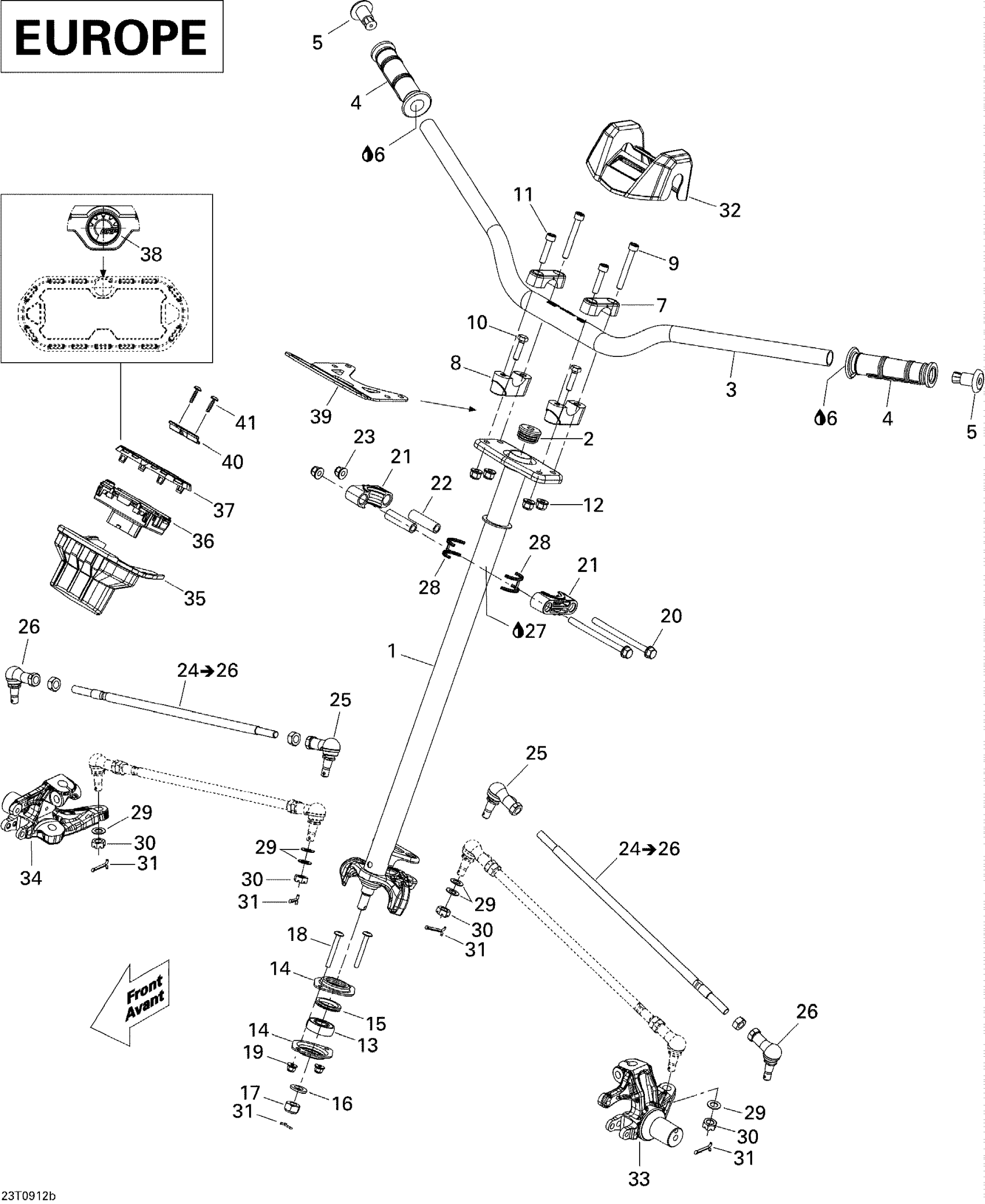

Can-Am DS 450 EFI, 2009 Steering Europe Diagram

#

Description
Price

1

STEERING COLUMN - Call your local BRP dealership

709400542

Unavailable

2

Cap

293730045

Unavailable

3

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

Unavailable

4

Handle Grip

709400493

$14.75

5

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Loctite 406, 7 Oz

293800100

$36.99

7

Support

709400496

$27.66

8

Lower Mounting Clamp

709402750

$27.66

9

SOCKET HEAD SCREW M8 X 60 - Call your local BRP dealership

205086044

$1.73

10

Hex. Screw M8 X 30

207183044

$0.92

11

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

12

Hex. Flange Elastic Nut M8

233281434

$1.74

13

Ball Bearing

709400439

$18.43

14

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

15

Seal

293250177

$7.37

16

Flat Washer

234021430

$2.06

17

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

18

Torx Screw M6 X 50

250000317

$2.06

19

Flange Elastic Nut M6

233261434

$3.61

20

Hex. Flange Screw M8 X 110

230681034

$4.28

21

Half Bushing

709400471

$13.59

22

BUSHING - Call your local BRP dealership

709400072

Unavailable

23

Hex. Flange Elastic Nut M8

233281434

$1.74

24

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

25

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

27

Synthetic Grease, 400 G

293550010

Unavailable

28

HALF-SEAL - Call your local BRP dealership

293300120

Unavailable

29

Flat Washer

250200084

$2.76

30

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

31

Cotter Pin

250400034

$2.06

32

STEERING COVER - Call your local BRP dealership

709400452

Unavailable

33

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

34

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

35

Speedometer Cover

709400514

$15.35

36

Calibrated Speedometer | Includes 16 to 17

710003288

$332.28

37

Trim Ring Ass'y

710001183

$18.43

38

BRP Logo13 mm

704904615

$9.66

39

INDICATOR SUPPORT - Call your local BRP dealership

709400671

Unavailable

40

Latch Indicator Cover

709400573

$10.98

41

Truss Head Torx Screw K50 X 20

250000297

$2.06
