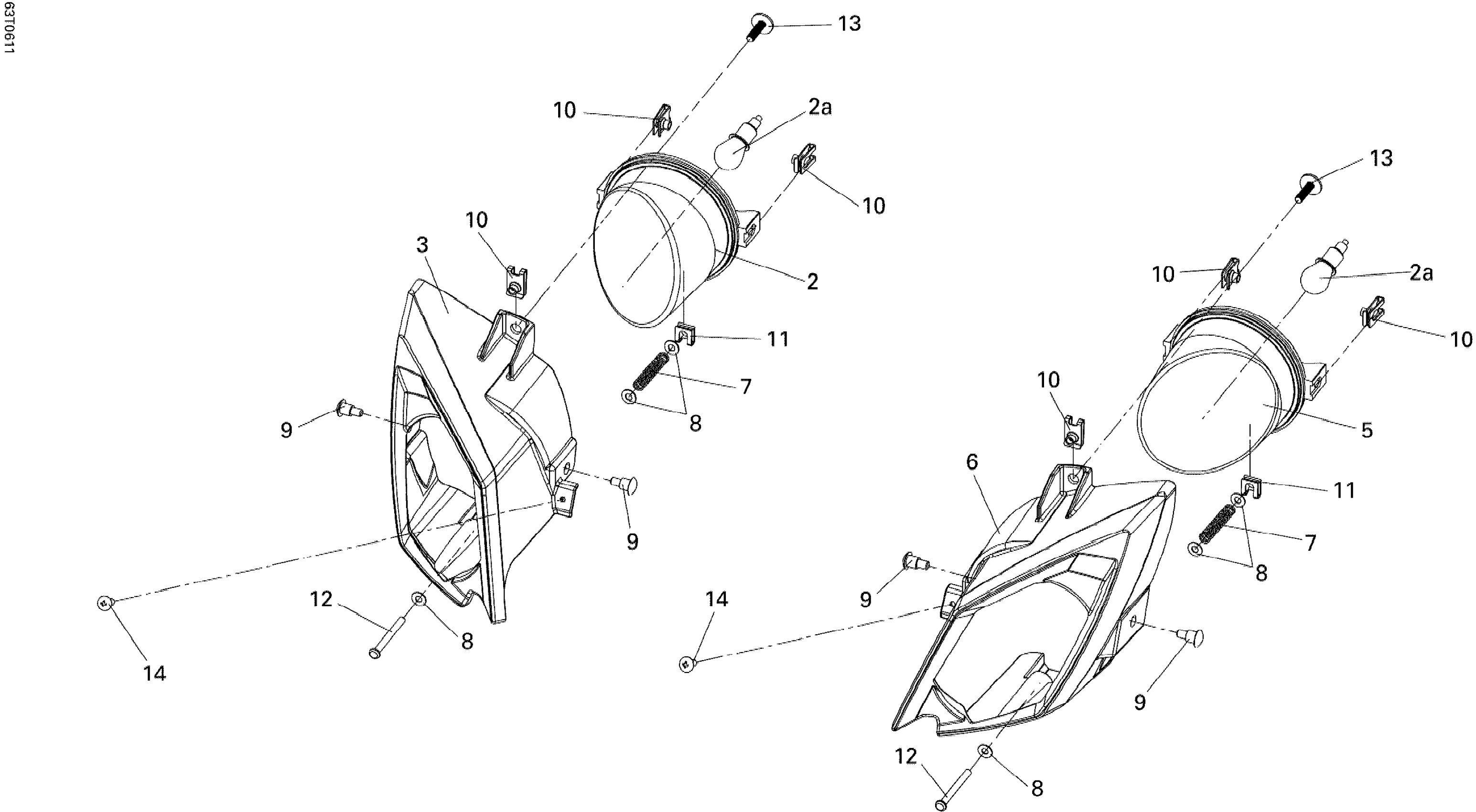

Can-Am DS 250 NA / Inter, 2006 Headlights Diagram

#

Description
Price

1

Rh Head Light Shroud | Not Shown

S63100RCA900JF

$16.12

1a

Lh Head Light Shroud Bk-002C

S63150RCA900JF

$17.66

2

RH HEAD LIGHT - Call your local BRP dealership

S33100RCB000

Unavailable

2a

BULB 12V/31.5W - Call your local BRP dealership

S34901RCB000

Unavailable

3

RH HEAD LIGHT SHROUD - Call your local BRP dealership

S63100RCB000

Unavailable

5

LH HEAD LIGHT ASS'Y - Call your local BRP dealership

S33150RCB000

Unavailable

6

LH Head Light Shroud

S63150RCB000

$10.98

7

Spring

S33101RCA000

$1.15

8

Washer 5 mm

S9410105700

$2.31

9

Special Bolt 6 mm

S90110RCA000

$0.74

10

Clip Nut

S90301RCA000

$2.31

11

Clip Nut

S90303RCA000

$2.31

12

PAN SCREW M5 X 55 - Call your local BRP dealership

S93500050550G

Unavailable

13

Washer Bolt M6 X 25

S934040602807

$0.40

14

Washer Screw

S90117H9A000

$0.91
