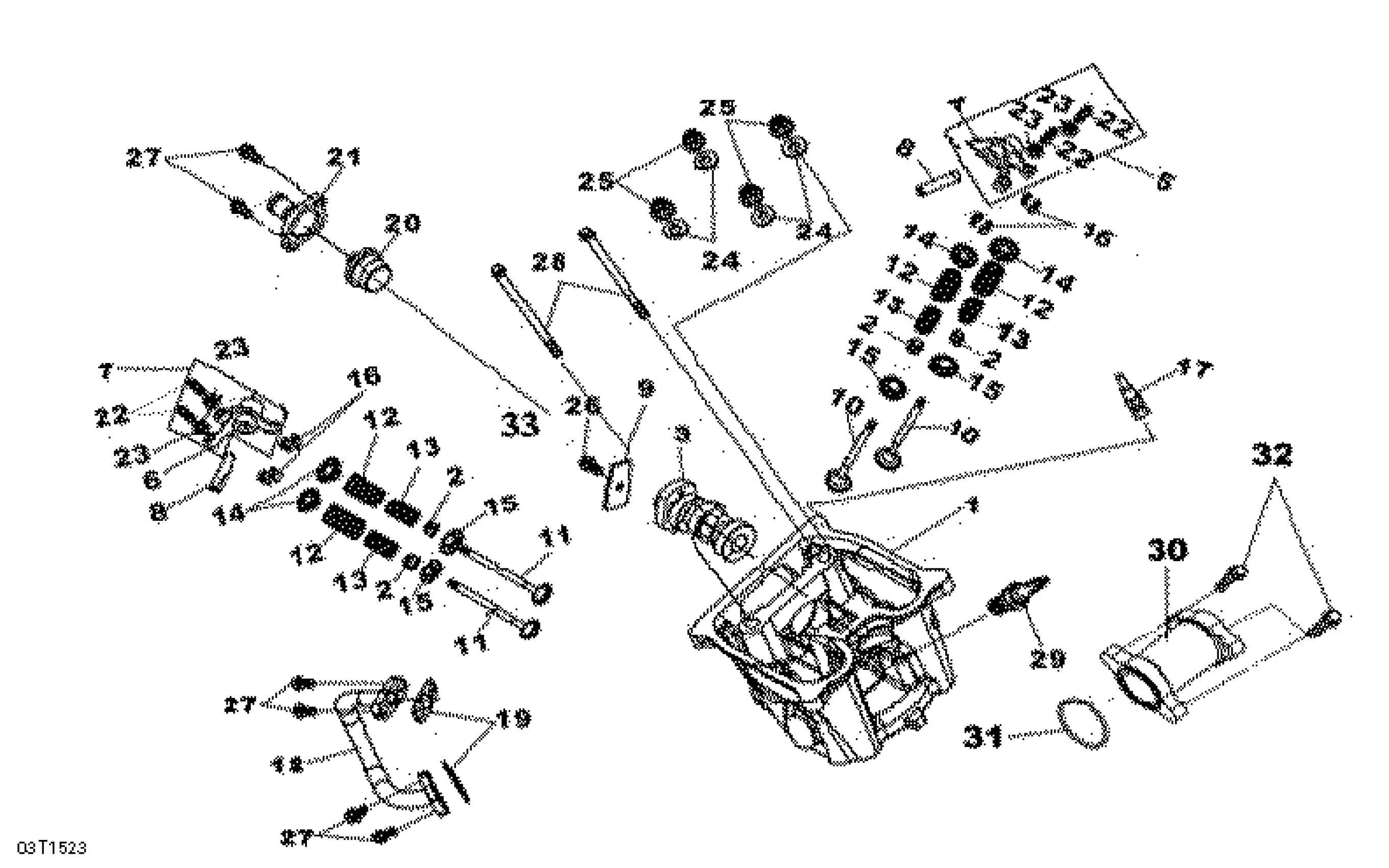

Can-Am DS 250 NA & INT, 2015 Cylinder Head Inter_03T1523 Diagram

#

Description
Price

1

Cylinder Head Ass'y

S12200RB1000

$553.49

2

Valve Stem Seal Cap

S12209H6B900M2

$12.64

3

Cam Shaft

S14100RB1000

$155.94

4

Rocker Intake

S14431RFA000

$116.39

5

Intake Valve Rocker Arm Ass'y | International

S1443ARFA000

$112.66

6

Rocker Exhaust

S14441RFA000

$130.57

7

Exhaust Valve Rocker Arm Ass'y | International

S1444ARFA000

$112.66

8

Rocker Arm Shaft

S14451HMA000

$17.88

9

Cam Shaft Setting Plate

S14457HMA000

$2.68

10

Intake Valve

S14711HMA000

$44.75

11

Exhaust Valve

S14721RFS000

$76.84

12

Valve Outer Spring

S14751HMA000

$7.21

13

Valve Inner Spring

S14761HMA000

$7.21

14

Valve Spring Retainer

S14771M8Q000

$8.24

15

Valve Spring Seat

S14777KN7670

$7.21

16

Valve Cotter

S14781M9Q000

$10.30

17

Temperature Sensor

S37750PC1004

$47.73

18

AIR PIPE COMP - Call your local BRP dealership

S18647RB1000

Unavailable

19

Air Pipe Gasket

S18654N14000

$3.29

20

Thermostat

S19300HMA000

$62.66

21

Thermostat Cover

S19315KJ9000

$35.04

22

Adjusting Screw

S90012HLK000

$5.90

23

Adjusting Nut

S90206HLK000

$3.51

24

Sealing Washer 10.5 mm

S90442RFS000

$6.16

25

Flanged Nut 10 mm

S9405010080

$0.76

26

Flanged Bolt M6 X 14

S960010601408

$0.39

27

Flanged Bolt M6 X 16

S960010601600

$0.39

28

Flanged Bolt M6 X 90

S960010609000

$0.72

29

Spark Plug

219703176

$10.21

30

Inner Pipe

S1711ARCA000

$32.06

31

O-ring

S91308HMA000

$7.64

32

Flanged Bolt M6 X 22

S960010602500

$0.84
