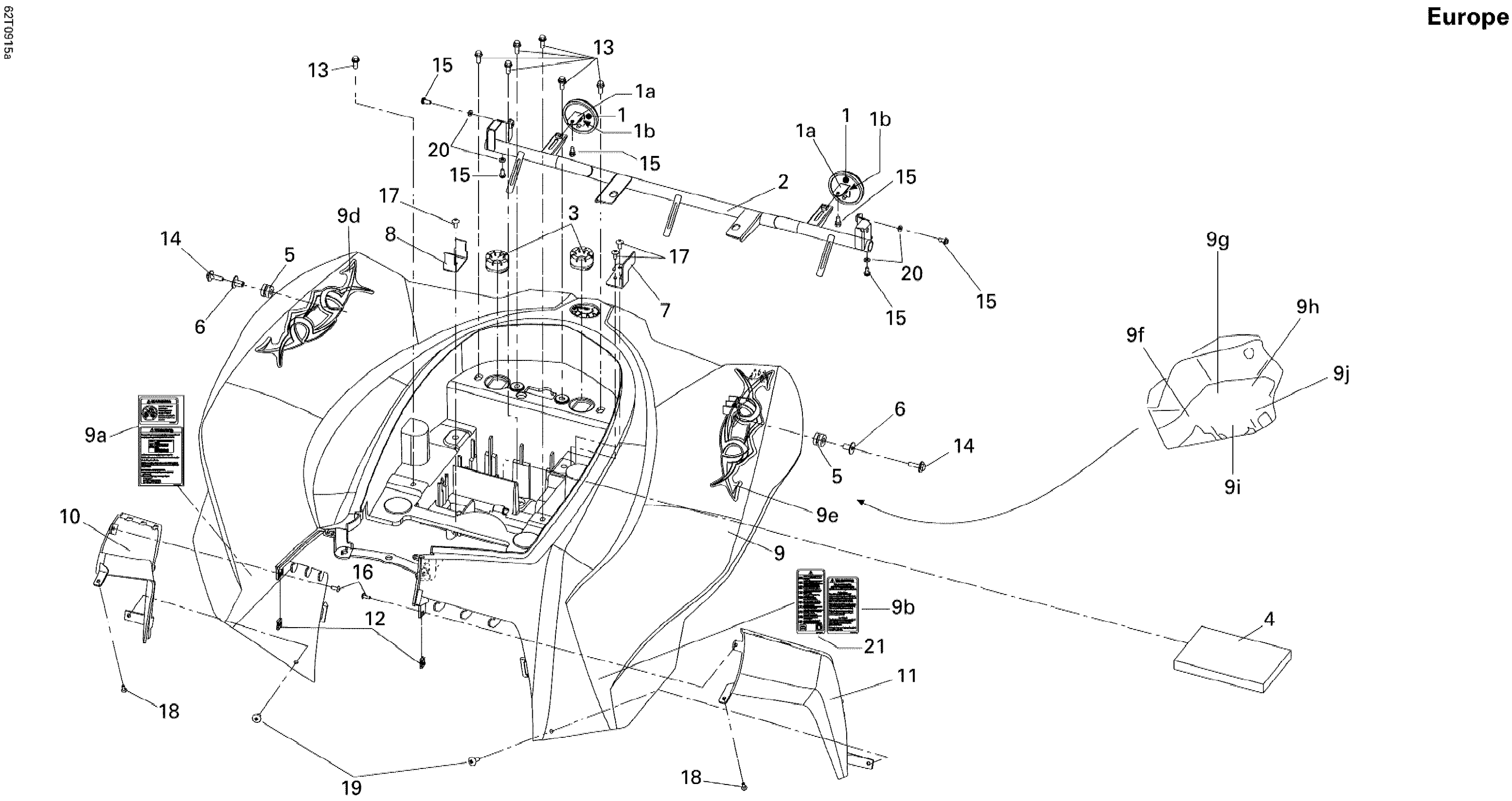

Can-Am DS 250 NA, CE & INT, 2009 Rear Fender Europe Diagram

#

Description
Price

1

REFLECTOR - Call your local BRP dealership

S33742TAP000

Unavailable

1a

Reflector Bracket

S50351RCA000

Unavailable

1b

Flanged Nut 6 mm

S9405006070

$0.45

2

REAR FENDER SUPPORT - Call your local BRP dealership

S50530RCA000

Unavailable

3

Rubber Cushion

S77212RCA000

$10.03

4

Sponge Rubber

S80108RCA000

$12.17

5

Rubber Washer

S80103X01000

$4.98

6

Fender Collar

S80104X01000

$4.98

7

CDI Stay

S80107RCA000

$7.62

8

Stay

S80109RB1000

$5.52

9

Rear Fender Ass'y (White)

S8010GRCA900

Unavailable

9a

Warning Decal B

S8750BRCA000

Unavailable

9b

INTERNATIONAL WARNING DECAL - Call your local BRP dealership | International

S87506RCA000

Unavailable

9d

LH Rear Fender Decal

S87133RCA900

$11.54

9e

RH Rear Fender Decal

S87132RCA900

$10.98

9f

Reflective Sheet A

S80111RCA000

$27.66

9g

Reflective Sheet B

S80112RCA000

$32.28

9h

Reflective Sheet C

S80113RCA000

$23.05

9i

Reflective Sheet D

S80114RCA000

$16.89

9j

Reflective Sheet E

S80115RCA000

$17.66

10

RH Side Cover

S83525RCA000JF

$20.74

11

LH Side Cover

S83625RCA000JF

$20.74

12

Clip Nut

S90302V02000

$0.51

13

Washer Bolt

S934040602007

$0.40

14

Washer Bolt

S934040602507

$0.40

15

Flanged Bolt M5 X 12

S938910501207

$1.15

16

Tapping Screw M4 X 12

S9390334380

$0.40

17

Tapping Screw M5 X 12

S9390335280

$0.40

18

Tapping Screw

S9390344380

$0.40

19

Screw Washer

S90119G03900

$2.31

20

Spring Washer 5 mm

S9411105800

$4.98

21

MUTILIGUAL LABEL - Call your local BRP dealership

S87507RCA000

Unavailable
