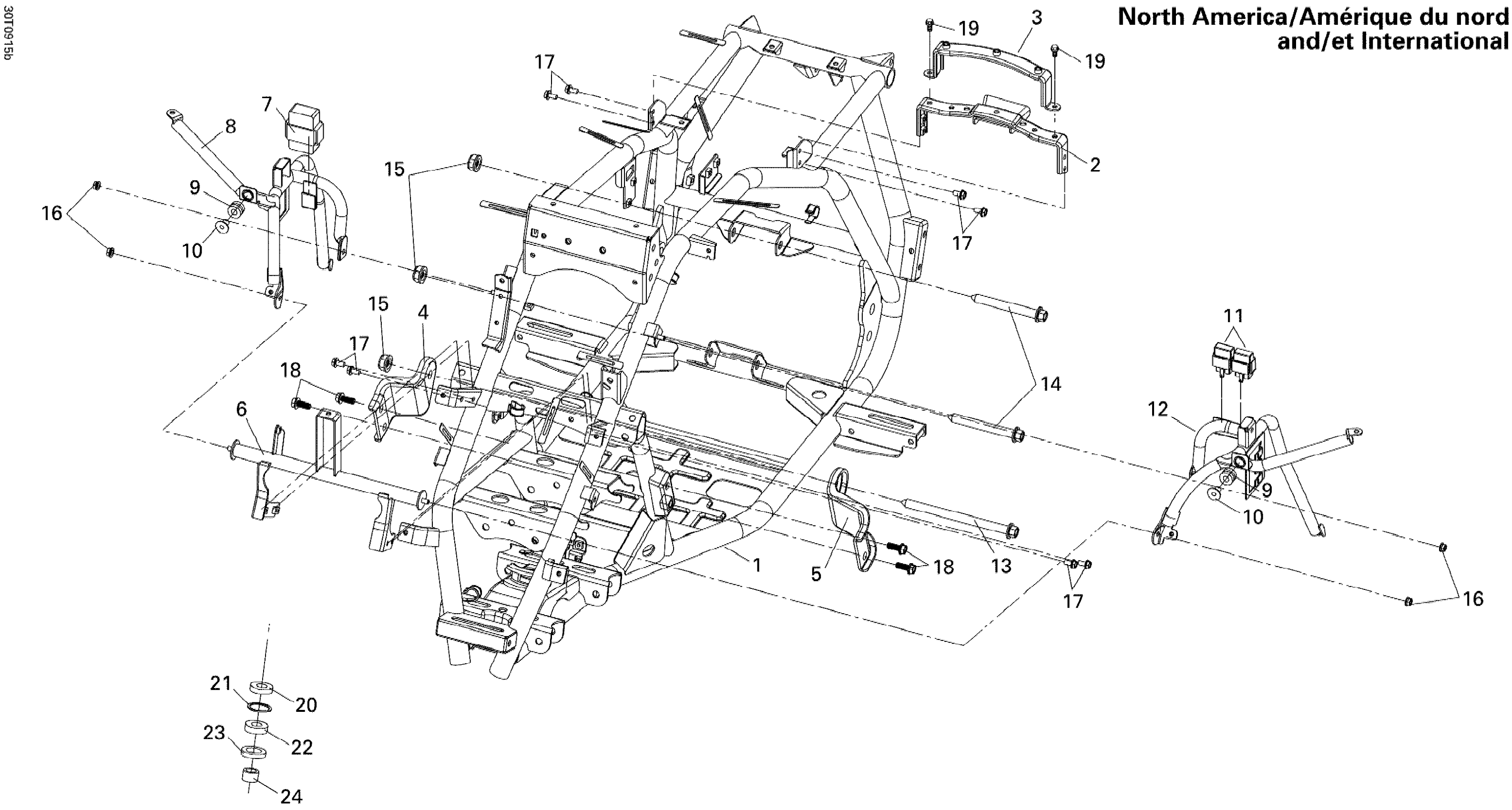

Can-Am DS 250 NA, CE & INT, 2009 Frame International Diagram

#

Description
Price

1

Frame Front

S50100RCB000

$649.99

2

Tank Cover Bracket

S50171RCA000

$16.89

3

Tank Bracket

S50172RCA000

$19.20

4

RH Engine Bracket

S50350RCA000

$16.12

5

LH Engine Bracket

S50360RCA000

$16.89

6

Front Fender Support

S50510RCA000

$92.28

7

Gear Control Unit

S3576ARCB000

$136.89

8

RH Front Fender Support

S50520RCA900

$129.20

9

Rubber Washer

S80103X01000

$4.98

10

Fender Collar

S80104X01000

$4.98

11

Relay Ass'y

S3850AM8Q000

$41.51

12

LH Front Fender Support

S50522RCA900

$115.35

13

Bolt M12 X 162

S90101RCA000

$5.91

14

Bolt M12 X 98

S90102RCA000

$4.60

15

Self Lock Nut M12

S90306M9Q000

$2.31

16

Flanged Nut 6 mm

S9405006070

$0.45

17

Flanged Bolt M6 X 12

S958010601207

$0.40

18

Flanged Bolt M10 X 16

S958011001607

$0.74

19

Flanged Bolt M6 X 12

S960010601207

$0.40

20

Oil Seal

S91210RCA000

$6.45

21

Circlip

S9452032000

$0.91

22

Ball Bearing

S961306002310

$16.12

23

Oil Seal

S91211RCA000

$12.91

24

Steering Column Collar

S53207RCA000

$9.23
