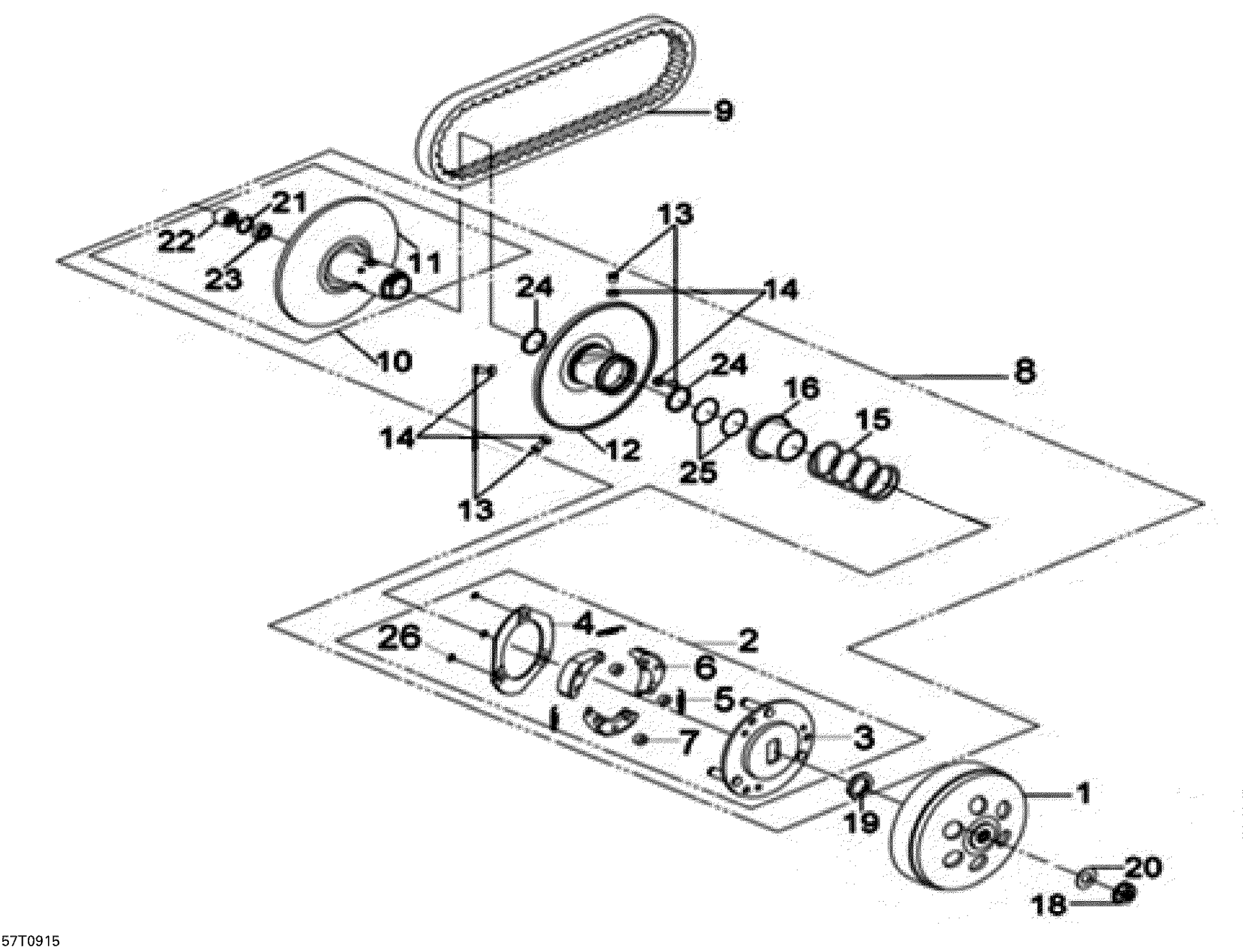

Can-Am DS 250 NA, CE & INT, 2009 Driven Pulley Diagram

#

Description
Price

1

Outer Clutch

S22101HMA000

$143.05

2

Drive Plate

S22300HMB000

$281.51

3

Not Available As Spare Parts

NASP/NDPR

Unavailable

4

Not Available As Spare Parts

NASP/NDPR

Unavailable

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Not Available As Spare Parts

NASP/NDPR

Unavailable

7

Not Available As Spare Parts

NASP/NDPR

Unavailable

8

Driven Pulley Ass'y | Europe, North America

S23010RCA000

$489.20

9

Drive Belt

S1B01RB101

$159.97

10

Not Available As Spare Parts

NASP/NDPR

Unavailable

11

Fix Flange

S23210HMA000

$189.20

12

Movable Flange

S23220HMA000

$175.35

13

Pin

S23225HMA000

$7.60

14

Guide Roller

S23226HMA000

$7.60

15

Driven Pulley Spring

S23233HMA000

Unavailable

16

Seal Collar

S23237HMA000

$18.43

18

Flanged Nut 14 mm

S90201RFS000

$3.68

19

Special Nut

S90202HMA000

$7.60

20

Thrust Washer

S90401KJ9000

$2.31

21

Circlip

S90602HMA000

$3.98

22

Needle Bearing

S91006HMA300

$81.51

23

Bearing

S91007HMA300

$19.97

24

Oil Seal

S91211HMA000

$6.15

25

O-ring

S91305HMA000

$4.60

26

Not Available As Spare Parts

NASP/NDPR

Unavailable
