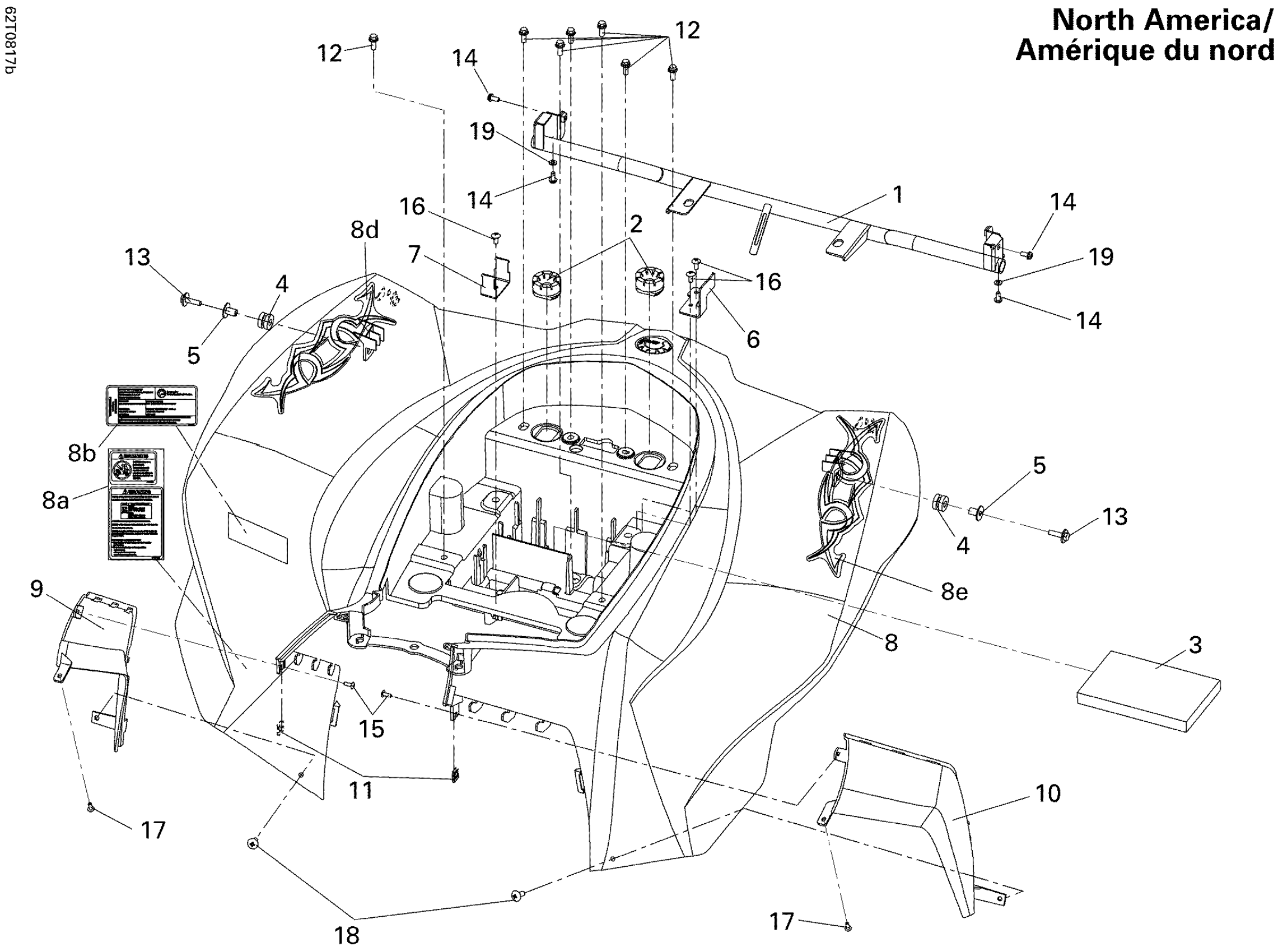

Can-Am DS 250 CVT, 2008 Rear Fender North America Diagram

#

Description
Price

1

Rear Fender Support

S50530RCB000

$69.20

2

Rubber Cushion

S77212RCA000

$10.03

3

Sponge Rubber

S80108RCA000

$12.17

4

Rubber Washer

S80103X01000

$4.98

5

Fender Collar

S80104X01000

$4.98

6

CDI Stay

S80107RCA000

$7.62

7

Stay

S80109RB1000

$5.52

8

Rear Fender , Yellow

S8010GRCB910ZY

$189.97

8a

Warning Decal B

S8750BRCA000

Unavailable

8b

EPA Label

S87514RCA800

Unavailable

8d

Rear Fender Decal

S87133RCAA00

$10.98

8e

Rear Fender Decal

S87132RCAA00

$10.98

9

RH Side Cover

S83525RCA000JF

$20.74

10

LH Side Cover

S83625RCA000JF

$20.74

11

Clip Nut

S90302V02000

$0.51

12

Tapping Screw M5 X 12

S9390335280

$0.40

13

Washer Bolt

S934040602507

$0.40

14

Flanged Bolt M5 X 12

S938910501207

$1.15

15

Tapping Screw M4 X 12

S9390334380

$0.40

16

Tapping Screw M5 X 12

S9390335280

$0.40

17

Tapping Screw

S9390344380

$0.40

18

Screw Washer

S90119G03900

$2.31

19

Spring Washer 5 mm

S9411105800

$4.98
