Description

Price

1

TAIL LIGHT ASS'Y - Call your local BRP dealership

S33700RCA000

$37.66

1a

Tail Light Bulb

S34906RCA000

$12.91

2

Rear Frame

S50180RCA000

Unavailable

3

License Plate Support

S50185RCA000

Unavailable

4

Rubber Washer

S80103X01000

$4.98

5

Fender Collar

S80104X01000

$4.98

6

Flanged Nut 6 mm

S9405006070

$0.45

7

Flanged Bolt M6 X 12

S958010601207

$0.40

8

Flanged Bolt M8 X 18

S958010801807

$0.74

9

CVT Tube Stay

S50175RCA000

$13.18

10

Brake Pedal Spring

S50706RCA000

$5.52

11

Brake Switch Spring

S50707RCA000

$7.37

12

Brake Pedal Ass'y

S50708RCA000

$59.97

13

Brake Plate Washer

S50709RCA000

$3.98

14

E-Ring

S9454005017

$0.98

15

Pin

S91510RCA000

$5.52

16

Flanged Bolt M8 X 12

S958010801207

$0.74

17

Circlip 5 mm

293370002

$5.52

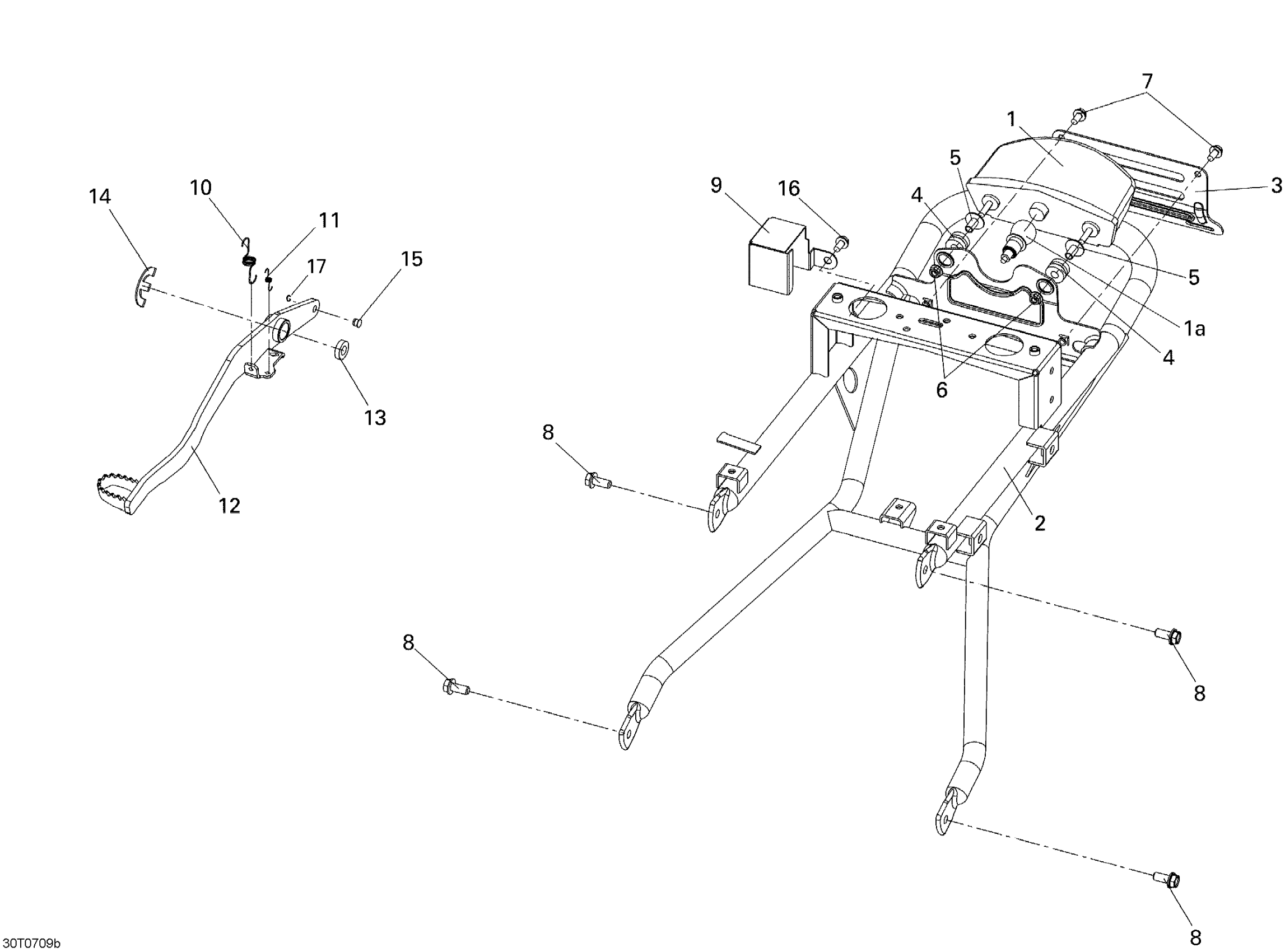

Can-Am DS 250, CE, 2007 Rear Frame Diagram

Rear Frame

License Plate Support
