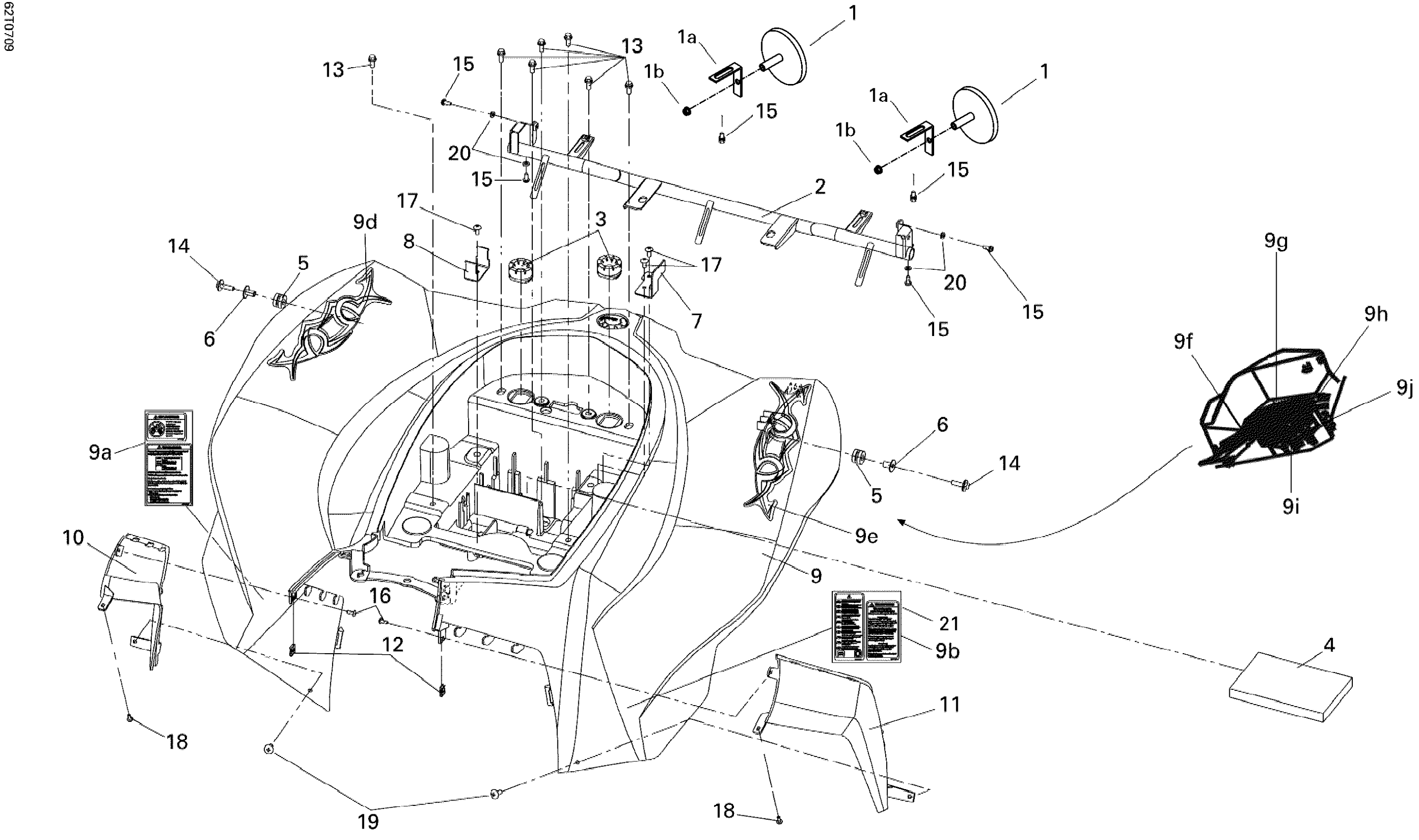

Can-Am DS 250, CE, 2007 Rear Fender Diagram

#

Description
Price

1

REFLECTOR - Call your local BRP dealership

S33742TAP000

Unavailable

1a

Reflector Bracket

S50351RCA000

Unavailable

1b

Flanged Nut 6 mm

S9405006070

$0.45

2

REAR FENDER SUPPORT - Call your local BRP dealership

S50530RCA000

Unavailable

3

Rubber Cushion

S77212RCA000

$10.03

4

Sponge Rubber

S80108RCA000

$12.17

5

Rubber Washer

S80103X01000

$4.98

6

Fender Collar

S80104X01000

$4.98

7

CDI Stay

S80107RCA000

$7.62

8

Stay

S80109RB1000

$5.52

9

REAR FENDER YELLOW - Call your local BRP dealership

S8010GRCA700ZY

Unavailable

9a

Warning Decal B

S8750BRCA000

Unavailable

9b

INTERNATIONAL WARNING DECAL - Call your local BRP dealership | International

S87506RCA000

Unavailable

9d

RH REAR FENDER DECAL - Call your local BRP dealership

S87133RCA000

Unavailable

9e

LH REAR FENDER DECAL - Call your local BRP dealership

S87132RCA000

Unavailable

9f

Reflective Sheet A

S80111RCA000

$27.66

9g

Reflective Sheet B

S80112RCA001

Unavailable

9h

REFLECTIVE SHEET C - Call your local BRP dealership

S80113RCA002

Unavailable

9i

REFLECTIVE SHEET D - Call your local BRP dealership

S80114RCA003

Unavailable

9j

REFLECTIVE SHEET E - Call your local BRP dealership

S80115RCA004

Unavailable

10

RH Side Cover

S83525RCA000JF

$20.74

11

LH Side Cover

S83625RCA000JF

$20.74

12

Clip Nut

S90302V02000

$0.51

13

Washer Bolt

S934040602007

$0.40

14

Washer Bolt

S934040602507

$0.40

15

Flanged Bolt M5 X 12

S938910501207

$1.15

16

Tapping Screw M4 X 12

S9390334380

$0.40

17

Tapping Screw M5 X 12

S9390335280

$0.40

18

Tapping Screw

S9390344380

$0.40

19

Screw Washer

S90119G03900

$2.31

20

Spring Washer 5 mm

S9411105800

$4.98

21

MUTILIGUAL LABEL - Call your local BRP dealership

S87507RCA000

Unavailable
