Description

Price

1

LH Crankcase Ass'y

S11200RB1000

$414.58

2

Setting Plate

S11205RB1000

$4.98

3

Breather Hose

S11221RB1000

$13.83

4

Drain Tube Ass'y

S11230RA1000

$4.98

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Change Sw

S3575ARB1020

$36.89

7

Cylinder Stud

S90032HMA000

$10.98

8

Spring Fixed Catch

S90051RB1000

$1.37

9

Drain Plug Screw

S90052RB1000

$2.31

10

Drain Plug Screw

S9280012000

$0.74

11

Washer 12 mm

S9410912000

$0.51

12

Drain Plug Screw Washer 14 mm

S9410914000

$0.51

13

Hex. Flange Screw M6 X 12

S960010601200

$0.68

14

Hex. Flange Screw M6 X 18

S960010601800

$0.40

15

Hex. Flange Screw M6 X 50

S960010605000

$0.74

16

Hex. Flange Screw M6 X 70

S960010607000

$1.15

17

Steel Ball

S9621112000

$6.45

18

Gear Fixing Bolt

S23434RCA000

Unavailable

19

METER GEAR - Call your local BRP dealership

S23433RCA000

$40.74

20

Thrust Washer

S23435RCA000

Unavailable

21

OIL SEAL - Call your local BRP dealership

S91201RCA000

$11.38

22

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

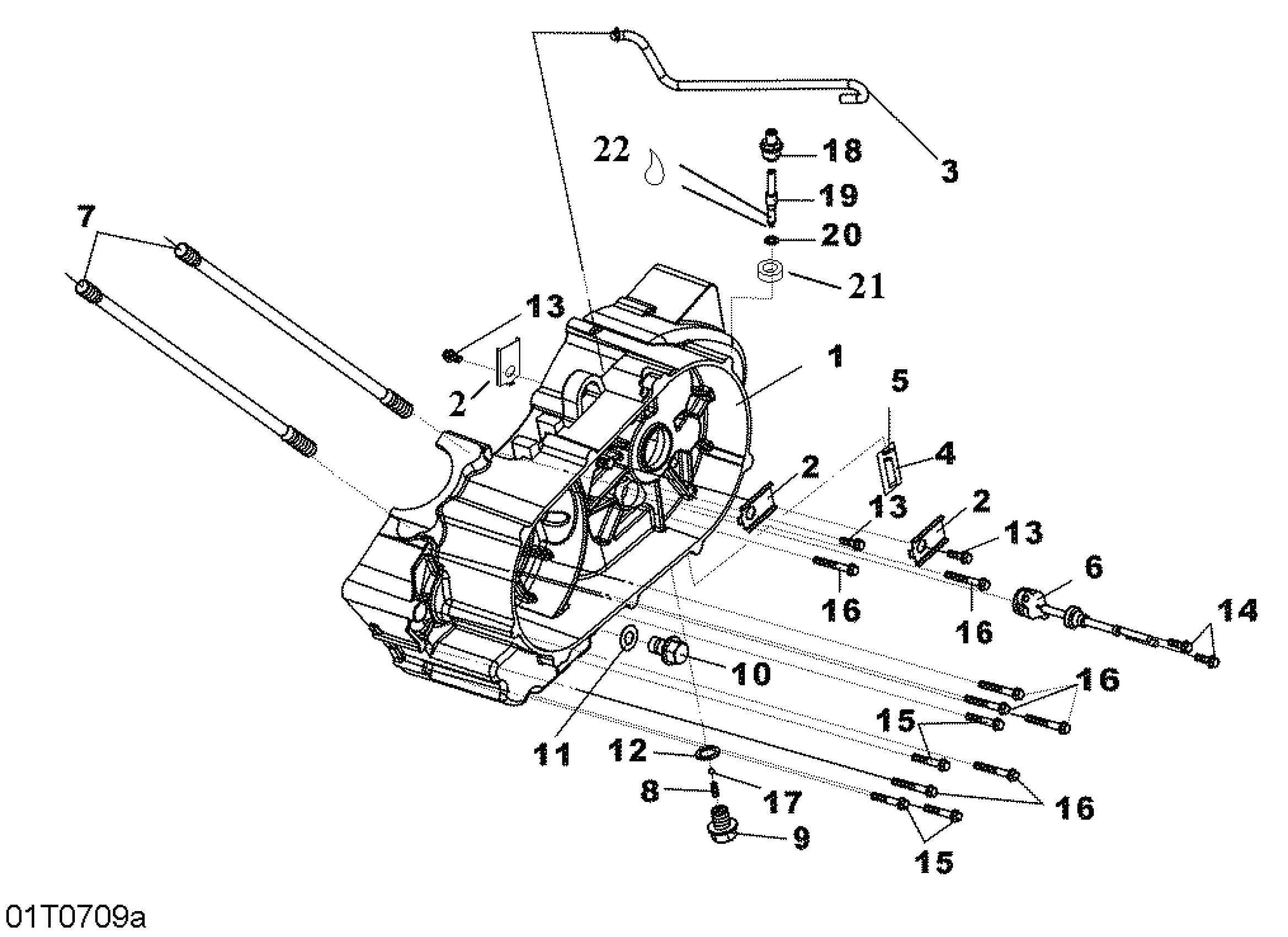

Can-Am DS 250, CE, 2007 Left Crankcase Half Diagram

Not Available As Spare Parts

Gear Fixing Bolt

Thrust Washer
