Description

Price

1

IGNITION SWITCH AND KEY SET - Call your local BRP dealership

S35010RCA000

$39.97

2

SPEEDOMETER BRACKET - Call your local BRP dealership

S53106RCA000

$12.20

3

HANDLE BAR BOTTOM CLAMP - Call your local BRP dealership

S53121RCA000

$12.28

4

Steering Column

S53200RCA000

$110.74

5

Half Bushing

S53202RCA000

$16.89

6

Bushing

S53203RCA000

$4.83

7

Flat Lock Screw M6 X 12

S90164X01000

$0.74

8

FLANGE U NUT - Call your local BRP dealership

S90304M9Q000

$3.82

9

Oil Seal

S91208RCA000

$13.83

10

SELF LOCK NUT 14 MM - Call your local BRP dealership

S90305GW0901A

$5.35

11

Steering Column Holder Plate

S53204RCA000

$10.98

12

Lock Tab

S53206RCA000

$5.52

13

Flanged Bolt M8 X 60

S958010806007

$0.74

14

Split Pin

S9420125250

$0.51

15

Tie-rod Ass'y

S50258RCA000

$78.43

16

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

17

Oil Seal

S91210RCA000

$6.45

18

Circlip

S9452032000

$0.91

19

Ball Bearing

S961306002310

$16.12

20

Oil Seal

S91211RCA000

$12.91

21

Steering Column Collar

S53207RCA000

$9.23

23

BLANK IGNITION KEY A - Call your local BRP dealership

S35115RCA0000A

$14.58

23

BLANK IGNITION KEY B - Call your local BRP dealership

S35115RCA0000B

$14.58

23

BLANK IGNITION KEY C - Call your local BRP dealership

S35115RCA0000C

$14.58

23

BLANK IGNITION KEY D - Call your local BRP dealership

S35115RCA0000D

$14.09

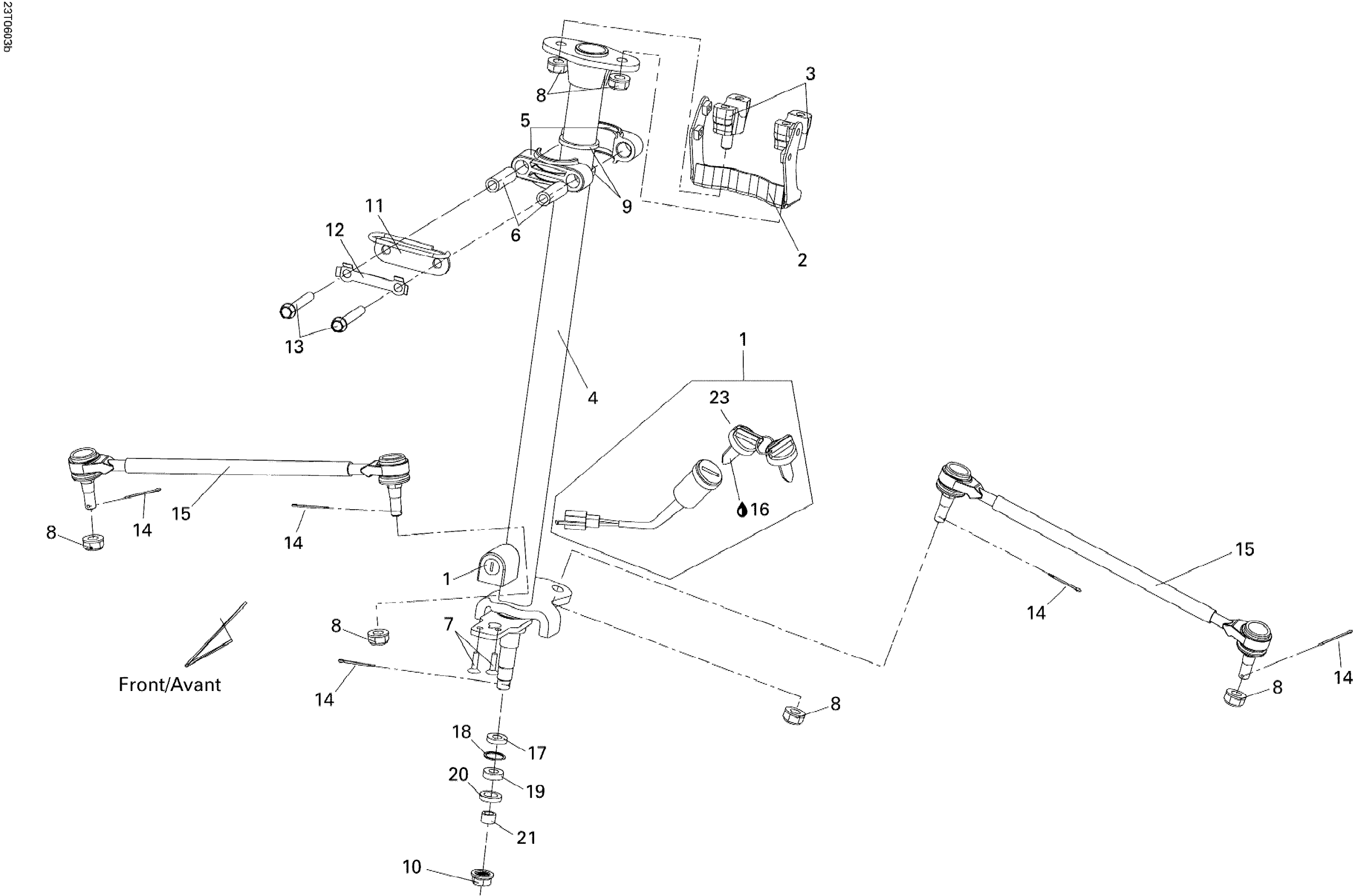

Can-Am DS 250, CE, 2006 Steering Linkage Diagram
