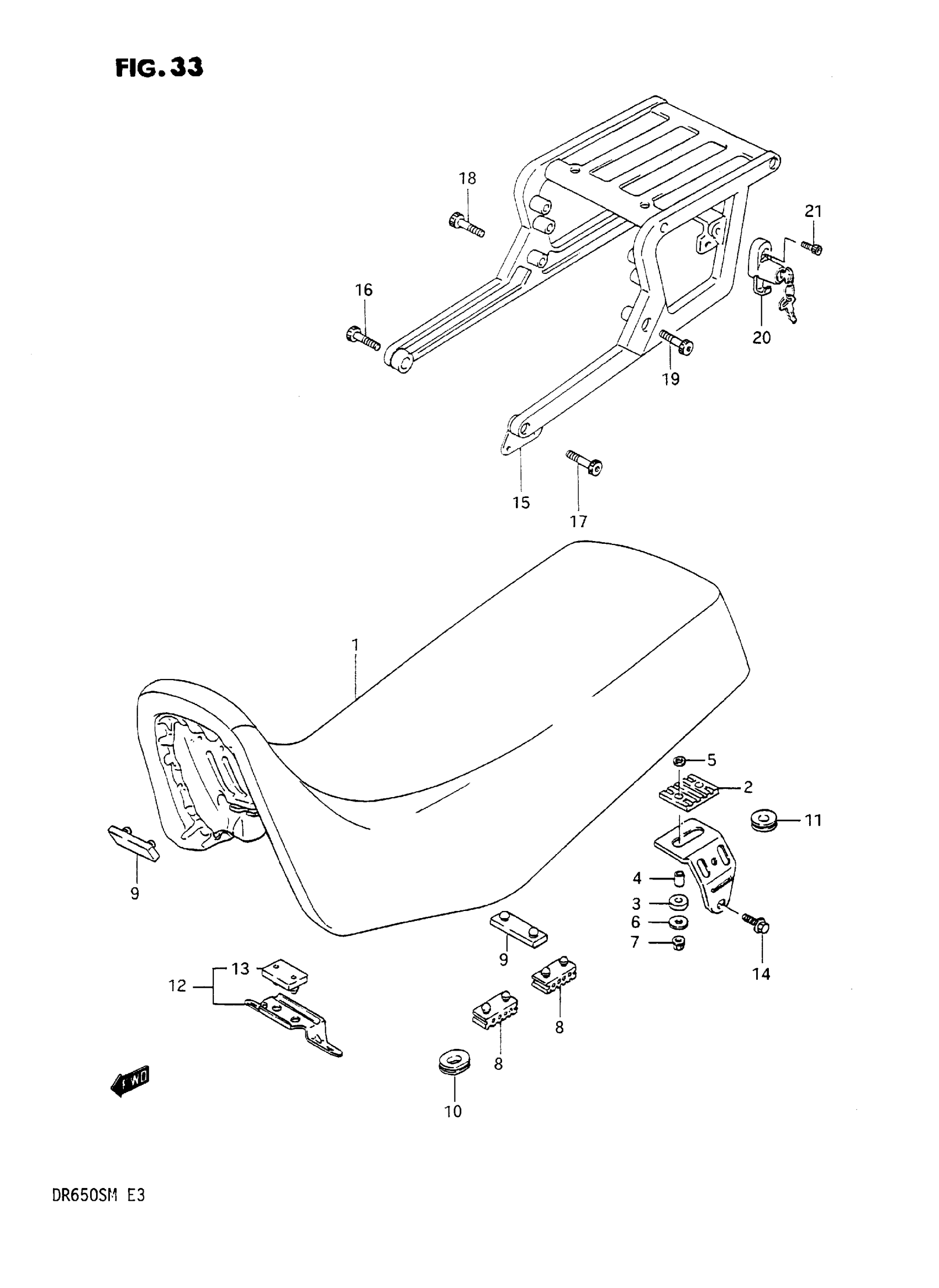

Suzuki DR650SM (1991) SEAT Diagram

#

Description
Price

1

SEAT SET | MODEL L This part replaces 45100-15A30-9DD.

45100-15A30-B35

Unavailable

1

SEAT SET | MODEL M; Includes Item(s) 2 - 11

45100-15A30-B35

Unavailable

2

CUSHION, SEAT HEAD

45147-23450

Unavailable

3

CUSHION, UPPER

45150-23450

$7.22

4

SPACER

45219-23450

Unavailable

5

WASHER, UPPER

08212-06201

$1.80

6

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

7

NUT This part replaces 08316-26066.

08316-1006B

$2.50

8

CUSHION

45149-31300

$3.26

9

CUSHION

09321-08009

$2.80

10

GROMMET, FRONT

09329-08003

Unavailable

11

GROMMET, REAR

09320-08018

$2.80

12

PLATE, FRONT HOOK | Includes Item(s) 13

45120-14A00

Unavailable

13

CUSHION

09321-08010

$4.18

14

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

15

CARRIER, REAR

46300-14A40

Unavailable

16

BOLT This part replaces 07110-08358.

07130-08357

$2.92

17

BOLT This part replaces 07110-08257.

07130-08257

$3.14

18

BOLT This part replaces 07110-08608.

07130-0860B

Unavailable

19

BOLT This part replaces 07110-08508.

07130-0850A

$4.53

20

LOCK SET, HELMET

95700-31810

Unavailable

21

BOLT This part replaces 07110-06165.

07130-0616B

$2.38
