1991 Suzuki DR650SM Rear Wheel Diagram

← All diagrams

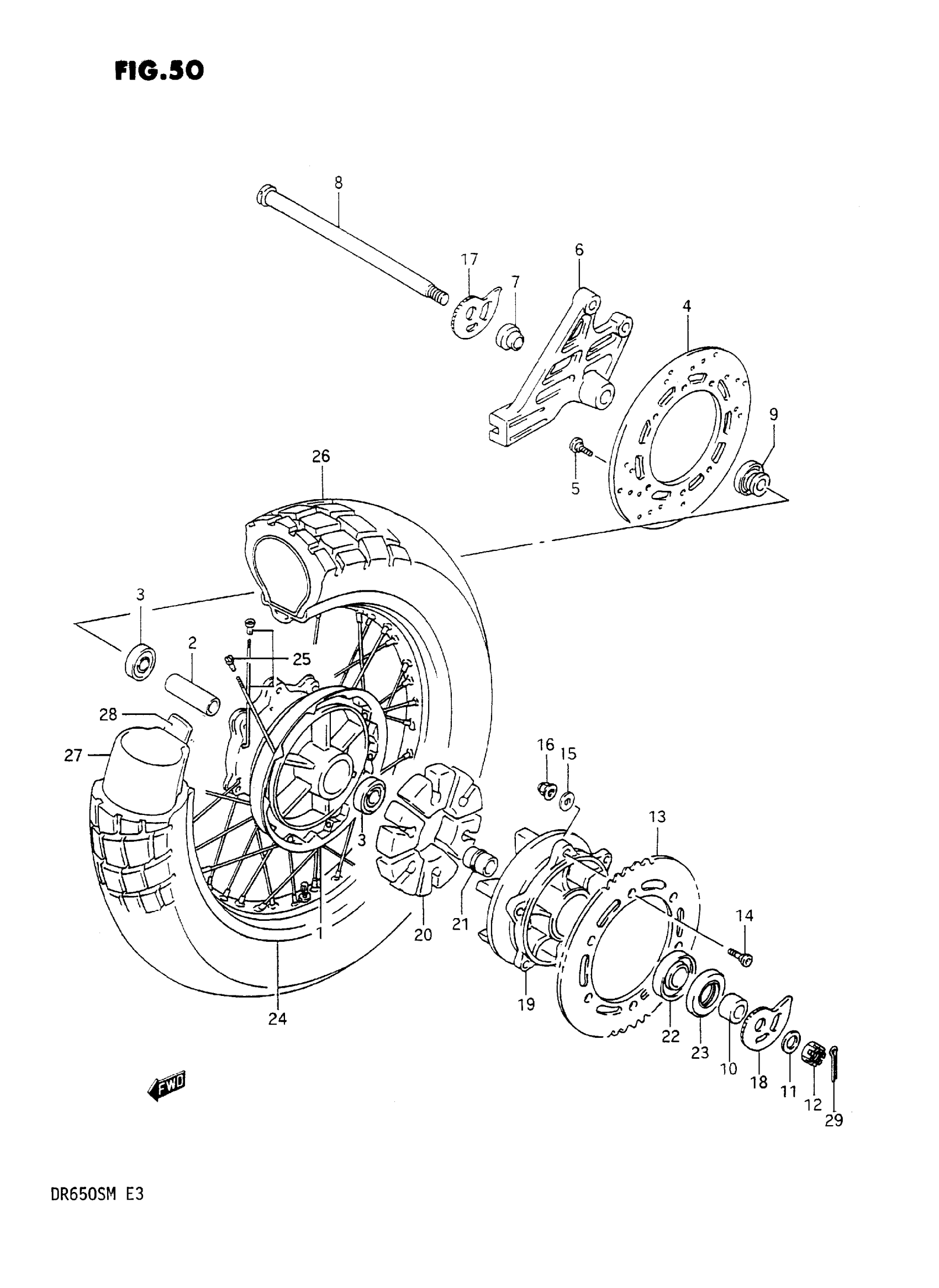

Find the part on the Rear Wheel diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki DR650SM Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64110-44B10

1
Out of stock

2

SPACER

09180-17071

1
Out of stock

3

2

$17.50

In stock

4

DISC, REAR BRAKE

69211-44B00

1
Out of stock

5

BOLT This part replaces 59421-03A01.

09106-08155

6
Out of stock

6

BRACKET, REAR CALIPER

69721-44B00

1
Out of stock

7

SPACER, CALIPER BRACKET

09180-17096

1
Out of stock

8

AXLE, REAR This part replaces 64711-14A20.

64711-14A21

1
Out of stock

9

SPACER, RH

64750-38211

1
Out of stock

10

SPACER, LH

09180-17090

1
Out of stock

11

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

12

NUT, HUB This part replaces 08314-41168.

08314-4016A

1
Out of stock

13

SPROCKET, REAR (NT:42) This part replaces 64511-14A00.

64511-14A01

1
Out of stock

14

BOLT

09120-08010

6
Out of stock

15

WASHER This part replaces 08322-11088.

08322-01087

6
Out of stock

16

NUT

08319-31087

6
Out of stock

17

ADJUSTER, CHAIN, RH This part replaces 61411-12D00.

61411-31D00

1
Out of stock

18

ADJUSTER, CHAIN, LH This part replaces 61421-12D00.

61421-31D00

1
Out of stock

19

DRUM, SPROCKET

64611-44B10

1
Out of stock

20

ABSORBER, REAR HUB SHOCK

64651-44B01

6
Out of stock

21

RETAINER

64733-31300

1
Out of stock

22

BEARING

09262-25073

1
Out of stock

23

SEAL, DUST

09285-33001

1
Out of stock

24

RIM, REAR WHEEL (MT2.50X17) This part replaces 65311-44B10.

65311-44B30

1
Out of stock

25

SPOKE SET

65320-44B10

1
Out of stock

26

TIRE, REAR (120/90-17 64S) | BRIDGESTONE This part replaces 65100-14A20.

65100-12E00

1
Out of stock

27

TUBE ASSY, WHEEL INNER This part replaces 65200-13A20.

65200-49030

1
Out of stock

28

PROTECTOR

65261-44B10

1
Out of stock

29

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock
