1991 Suzuki DR650SM Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

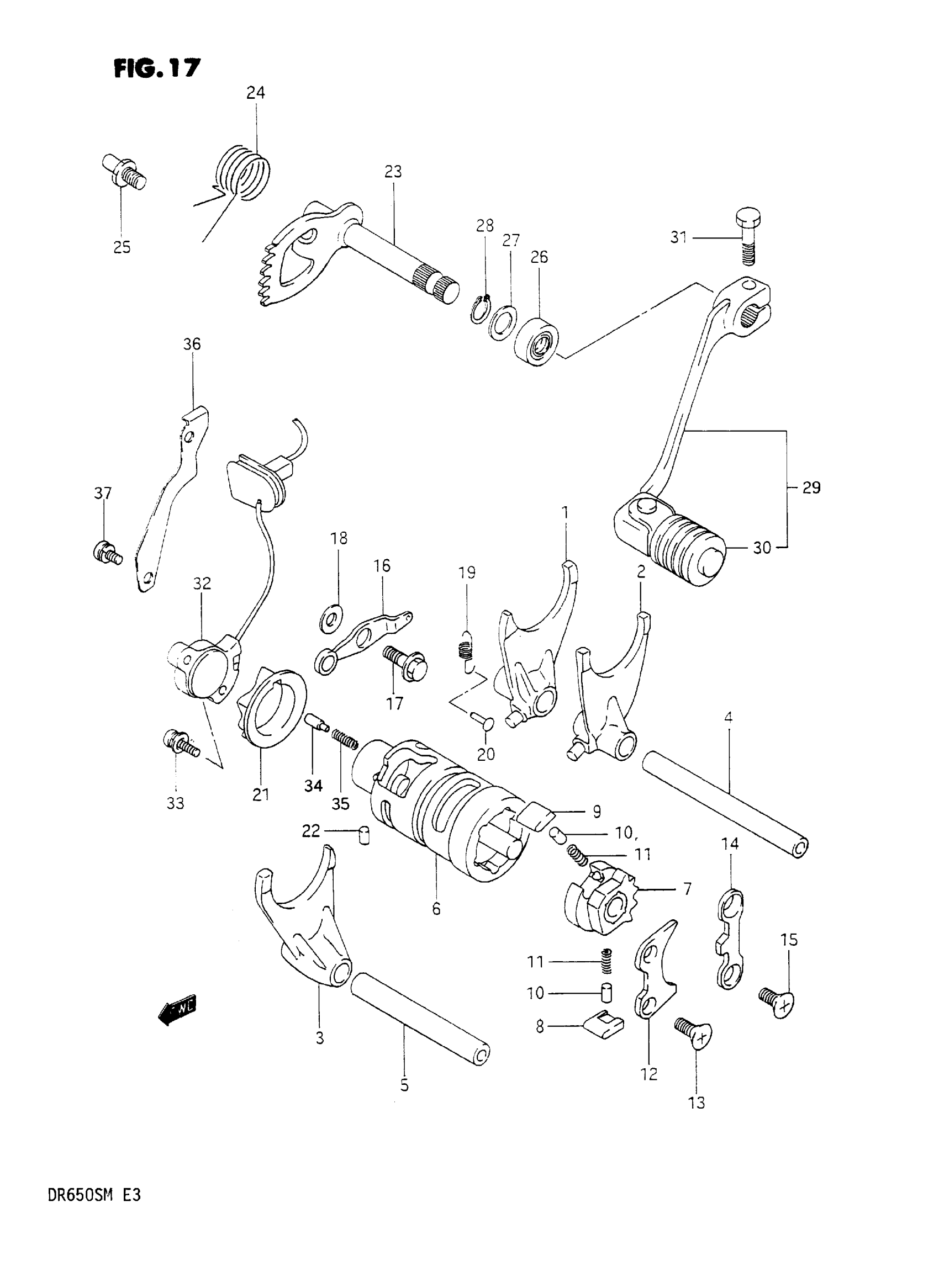

1991 Suzuki DR650SM Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK,GEAR SHIFT NO,1 This part replaces 25211-37400.

25211-37401

1
Out of stock

2

FORK,GEAR SHIFT,NO,2 This part replaces 25221-37400.

25221-37401

1
Out of stock

3

FORK,GEAR SHIFT,NO.3 This part replaces 25231-14A00.

25231-14A01

1
Out of stock

4

SHAFT, FORK NO.1 | L:95 This part replaces 25411-14500.

25411-20A11

1
Out of stock

5

SHAFT, FORK NO.2 | L:75 This part replaces 25421-14A00.

25421-14A02

1
Out of stock

6

CAM, GEAR SHIFTING

25310-37400

1
Out of stock

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

8

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

9

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

10

PIN

09261-05003

2
Out of stock

11

SPRING

09440-04003

2
Out of stock

12

LIFTER,GEAR SHIFT POLE

25331-14A00

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

GUIDE, CAM

25341-40001

1
Out of stock

15

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

16

STOPPER

25350-37400

1
Out of stock

17

BOLT This part replaces 09111-06019.

09111-06054

1
Out of stock

18

WASHER

08211-06141

1
Out of stock

19

SPRING

09443-08020

1
Out of stock

20

HOOK

09223-04001

1
Out of stock

21

PLATE,GEAR SHIFT CAM STOPPER This part replaces 25381-37400.

25381-37401

1
Out of stock

22

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

23

SHAFT,GEAR SHIFT This part replaces 25510-14A02.

25510-32E00

1
Out of stock

24

SPRING This part replaces 09444-26012.

09444-26013

1
Out of stock

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

27

WASHER

08212-12201

1
Out of stock

28

CIRCLIP This part replaces 08331-31128.

08331-3112A

1
Out of stock

29

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 30

25600-12D01

1
Out of stock

30

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

1
Out of stock

31

BOLT, GEAR SHIFT LINK This part replaces 09100-06100.

01500-0620A

1
Out of stock

32

BODY, GEAR SHIFTING SWITCH

37720-14A11

1
Out of stock

33

SCREW This part replaces 02112-75166.

02112-7516A

2
Out of stock

34

CONTACT

09209-05011

1
Out of stock

35

SPRING

09440-04010

1
Out of stock

36

CLAMP

37721-14A00

1
Out of stock

37

SCREW

02112-36106

—
Out of stock
