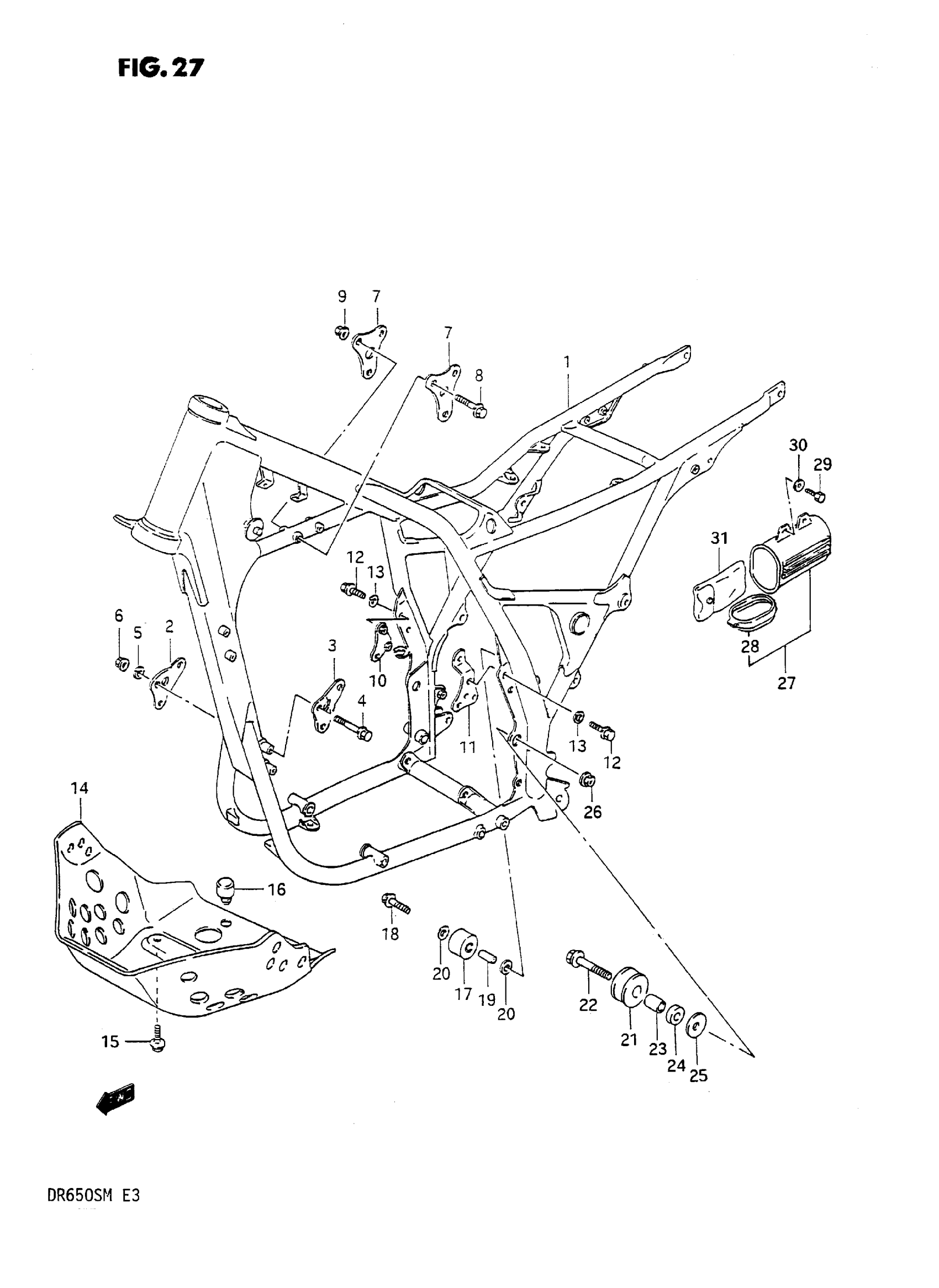

Suzuki DR650SM (1991) FRAME Diagram

#

Description
Price

1

FRAME (BLUE)

41100-14C60-0NF

Unavailable

2

PLATE, FRONT RH (BLACK) This part replaces 41911-12D00-0NF.

41911-12D00-019

Unavailable

3

PLATE, FRONT LH (BLACK) This part replaces 41921-12D00-0NF.

41921-12D00-019

Unavailable

4

BOLT

09103-08279

Unavailable

5

.LOCK WASHER | MODEL L This part replaces 08321-31087.

08321-01087

$1.83

5

LOCK WASHER | MODEL M This part replaces 08321-31084.

08321-0108A

$1.83

6

NUT | MODEL L This part replaces 08319-21088.

08319-2108A

$2.13

6

NUT | MODEL M This part replaces 08319-21085.

08319-2108A

$2.13

7

PLATE, UPPER This part replaces 41991-12D00-0NF.

41991-12D10

Unavailable

8

BOLT

09103-08289

$4.90

9

NUT | MODEL L

08319-31087

$2.31

9

NUT | MODEL M This part replaces 08319-31085.

08319-3108A

$2.31

10

PLATE, REAR RH (BLACK) This part replaces 41940-12D00-0NF.

41940-12D00-019

Unavailable

11

PLATE, REAR LH (BLACK) | MODEL L This part replaces 41950-14A10-0NF.

41950-14A10-019

Unavailable

11

PLATE, REAR LH (BLACK) | MODEL M This part replaces 41950-12D01-0NF.

41950-12D01-019

Unavailable

12

BOLT

09103-08266

$2.80

13

.LOCK WASHER | MODEL L This part replaces 08321-31087.

08321-01087

$1.83

13

LOCK WASHER | MODEL M This part replaces 08321-31084.

08321-0108A

$1.83

14

PROTECTOR, ENGINE

42511-14A20

Unavailable

15

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.80

16

CUSHION

09321-10017

$6.95

17

ROLLER, CHAIN UPPER

43911-01B10

$22.07

18

BOLT

09103-08083

$3.38

19

SPACER (8.5X14X28) This part replaces 09180-08136.

09180-08206

$7.35

20

WASHER This part replaces 09160-08021.

09160-08130

$2.01

21

ROLLER, CHAIN LOWER

43911-35B00

$18.81

22

BOLT,8X50 This part replaces 09103-08082.

09103-08395

$3.36

23

SPACER This part replaces 09180-08119.

09180-08156

$6.14

24

SPACER This part replaces 43914-12D00.

09180-08141

$3.80

25

WASHER

08211-08201

$2.06

26

NUT This part replaces 08319-31085.

08319-3108A

$2.31

27

HOLDER, TOOL | Includes Item(s) 28

41550-37210

Unavailable

28

CAP

41552-37210

$9.21

29

BOLT, CENTER This part replaces 09116-06085.

09116-06165

$3.30

30

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.15

31

TOOL ASSY (CA) This part replaces 09800-00245.

09800-21021

Unavailable
