1995 Suzuki DR650SES Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

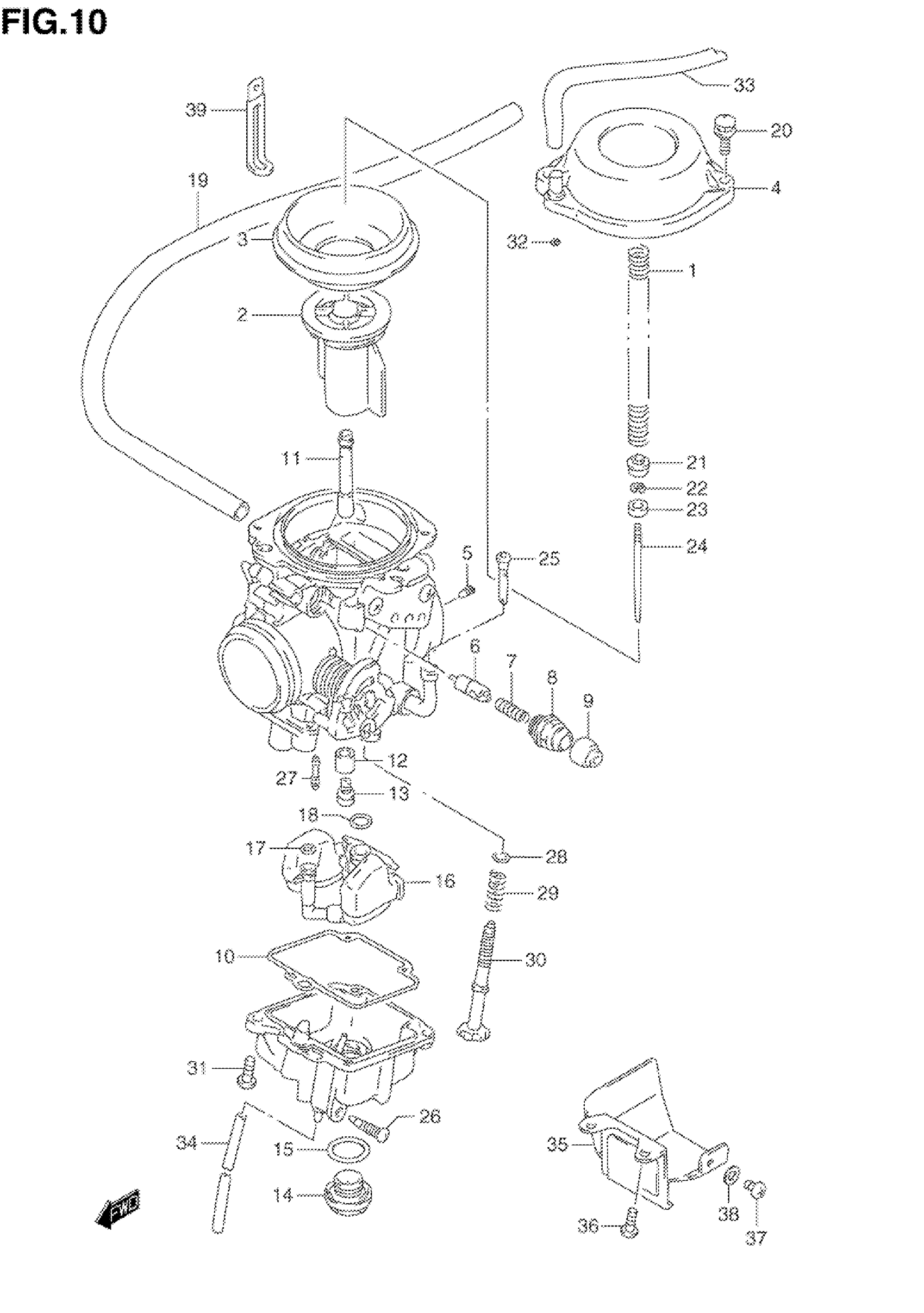

1995 Suzuki DR650SES Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY

13200-12E20

1
Out of stock

CARBURETOR ASSY | CALIFORNIA ONLY; Includes Item(s) 1 - 38

13200-12E60

1
Out of stock

1

SPRING

13417-17D00

1
Out of stock

2

VALVE, PISTON

13501-12D00

1
Out of stock

3

.DIAPHRAGM This part replaces 13507-07D00.

13507-07D02

1
Out of stock

4

COVER, DIAPHRAGM

13502-12D00

1
Out of stock

5

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

1
Out of stock

6

PLUNGER ASSY

13411-12D00

1
Out of stock

7

SPRING

13417-22010

1
Out of stock

8

HOLDER, GUIDE

13418-43410

1
Out of stock

9

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

10

GASKET, FLOAT CHAMBER

13258-44B00

1
Out of stock

11

JET, NEEDLE (Y-2)

09494-00754

1
Out of stock

12

RING

13331-07D00

1
Out of stock

13

JET, MAIN (137.5)

09491-27010

1
Out of stock

14

PLUG, DRAIN

13247-32210

1
Out of stock

15

O RING, DRAIN

13249-41310

1
Out of stock

16

FLOAT/NEEDLE VALVE ASSY This part replaces 13250-12E00.

13250-12EH0

1
Out of stock

17

.O RING

13374-46710

1
Out of stock

18

O RING This part replaces 13374-44080.

13374-35C00

1
Out of stock

19

HOSE(6.5X11.5X6 This part replaces 13683-15A30.

09355-65001-600

1
Out of stock

20

SCREW This part replaces 13602-34390.

02112-7516A

2
Out of stock

21

RING

13331-12D00

1
Out of stock

22

E RING

13394-31210

1
Out of stock

23

RING This part replaces 13387-12E00.

13387-07D00

1
Out of stock

24

NEEDLE, JET (6F10-1)

13383-12E20

1
Out of stock

25

FILTER

13236-12C00

1
Out of stock

26

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

1
Out of stock

27

JET, PILOT (52.5)

09492-52010

1
Out of stock

28

WASHER

13427-38300

1
Out of stock

29

SPRING

13271-24D00

1
Out of stock

30

ADJUSTER This part replaces 13267-28A00.

13267-14D10

1
Out of stock

31

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

32

O RING

13278-02340

1
Out of stock

33

HOSE(4.5X8.5X60 This part replaces 13684-36510.

09355-45001-600

1
Out of stock

34

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

1
Out of stock

35

PLATE | CALIFORNIA ONLY

13411-14A80

1
Out of stock

36

SCREW | CALIFORNIA ONLY This part replaces 13602-05129.

02112-05127

2
Out of stock

37

SCREW | CALIFORNIA ONLY This part replaces 13602-04068.

02112-0406B

1
Out of stock

38

WASHER | CALIFORNIA ONLY This part replaces 13606-02340.

08322-0104A

1
Out of stock

39

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock

40

REFER TO FIG.10A (C-7) FOR

SPECIAL NOTE

—
Out of stock
