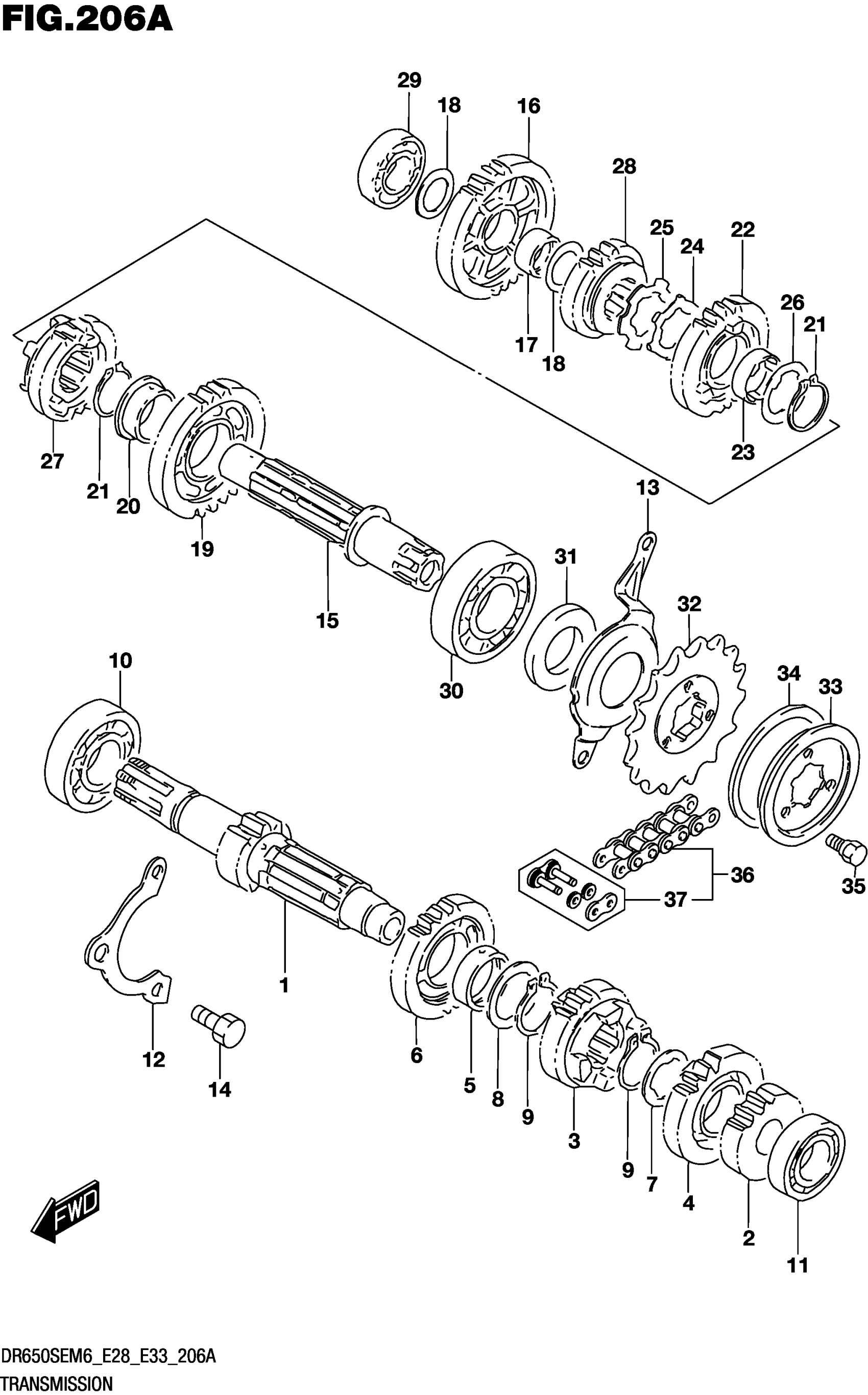

Suzuki DR650SEM6 (2026) TRANSMISSION Diagram

#

Description
Price

1

SHAFT SET,CNTR (NT:12)

24120-14810

$298.40

2

GEAR,2ND DRIVE (NT:16)

24221-14A10

$130.03

3

GEAR,3RD DRIVE (NT:21)

24231-12D21

$134.47

4

GEAR,4TH DRIVE (NT:21)

24241-14A10

$130.03

5

BUSH

24252-19F00

$19.32

6

GEAR,5TH DRIVE (NT:23)

24251-14A10

$125.27

7

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

8

SHIM (25X34X1)

09181-25167

$2.85

9

SNAP RING

09380-25003

$2.80

10

BEARING (22X56X16)

09262-22028

$69.91

11

BEARING (17X40X12)

09262-17046

$41.35

12

RETAINER,CNTR SHAFT BRG

24741-14A00

$10.35

13

RETAINER,DRIVE SHAFT OIL SEAL

24751-32E00

$15.16

14

BOLT

01500-0816A

$2.40

15

SHAFT,DRIVE

24130-14A10

$225.80

16

GEAR,1ST DRIVEN (NT:29)

24311-14A01

$127.13

17

BUSH (20X24X13)

09300-20032

$19.02

18

SHIM (20X30X1)

09181-20195

$2.68

19

GEAR,2ND DRIVEN (NT:26)

24321-14A10

$130.03

20

BUSH

09301-25002

$19.93

21

SNAP RING

09380-25003

$2.80

22

GEAR,3RD DRIVEN (NT:26)

24331-14A20

$134.47

23

BUSH,DRIVEN GEAR

24332-24510

$21.07

24

WASHER (25.1X37X2.5)

09169-25001

$2.95

25

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

26

WASHER,LOCK (25.5X35X1)

09167-25016

$4.03

27

GEAR,4TH DRIVEN (NT:21)

24341-14A10

$127.63

28

GEAR,5TH DRIVEN (NT:19)

24351-14A10

$125.27

29

BEARING (20X42X12)

09262-20059

$27.83

30

BEARING (25X62X17)

09262-25125

$75.18

31

OIL SEAL (25X44X7)

09283-25108

$11.38

32

SPROCKET,ENGINE (NT:15)

27511-31D00

$49.48

33

PLATE,ENGINE SPROCKET

27512-44B00

$5.95

34

DAMPER

27517-37400

$13.01

35

BOLT (6X13)

09111-06039

$5.43

36

CHAIN, DRIVE

27600-32C90-110

$255.48

37

.JOINT SET, CHAIN

27620-32C90

$17.40
