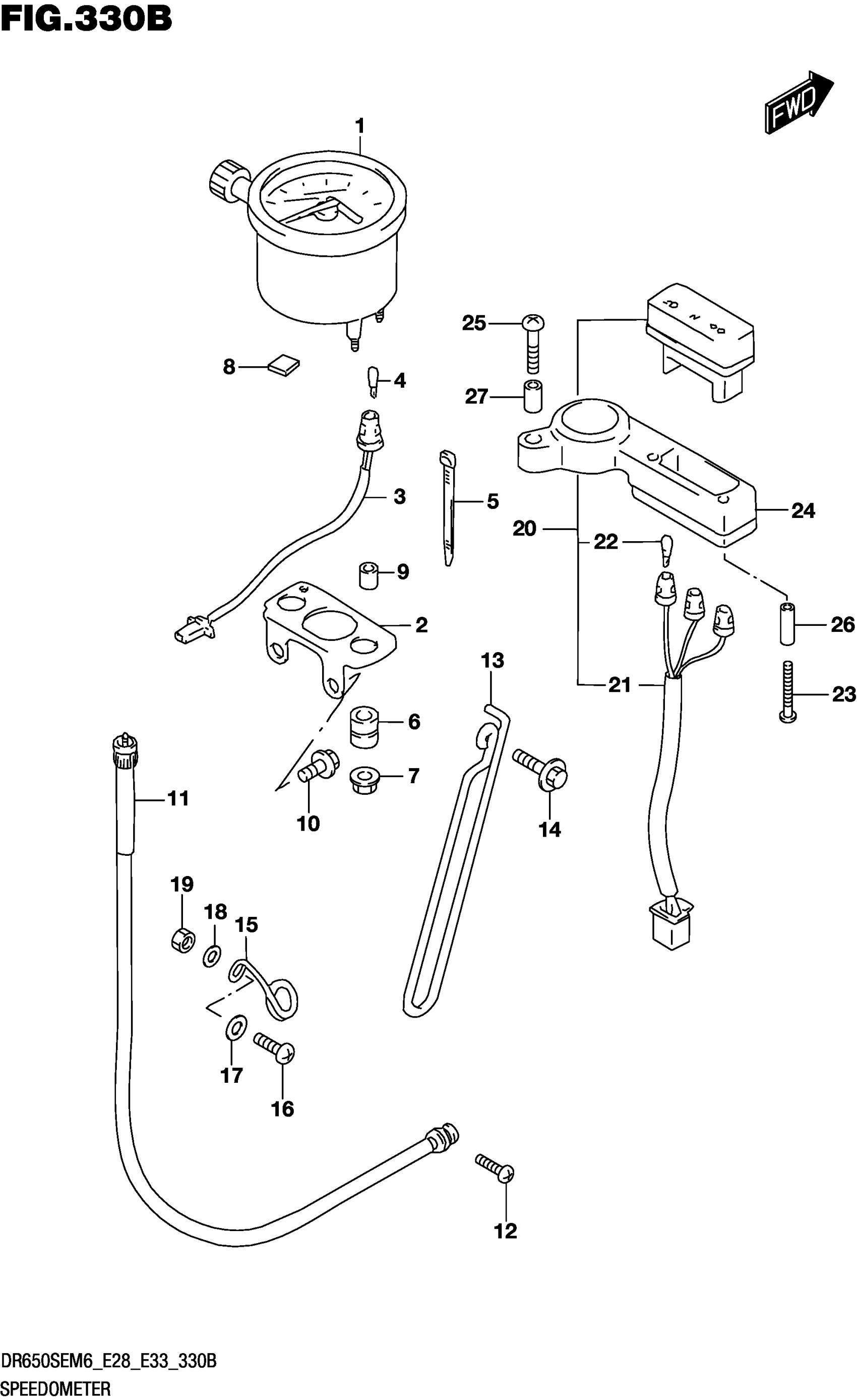

Suzuki DR650SEM6 (2026) SPEEDOMETER (E28) Diagram

#

Description
Price

1

SPEEDOMETER (KILO)

34110-32EA0

Unavailable

2

BRACKET,METER

34950-32E00

$21.23

3

CORD ASSY

34170-49J00

Unavailable

4

.BULB (12V1.7W)

09471-12108

$3.18

5

CLAMP (L:100)

09407-10404

$3.17

6

CUSHION

34955-48G00

Unavailable

7

NUT

09159-05049

$2.50

8

CUSHION

33652-07G10

$2.93

9

SPACER,SPEEDOMETER

34965-32E00

$2.27

10

BOLT

01550-0612A

$2.01

11

CABLE ASSY SPEEDOMETER

34910-32E00

$39.38

12

.SCREW

02112-0516B

$2.01

13

GUIDE METER CABLE NO.2

34938-14D30

$10.17

14

BOLT (6X20)

09116-06167

$2.25

15

GUIDE,SPEEDOMETER CABLE

34938-14D21

$11.48

16

SCREW

02142-0616B

$1.86

17

WASHER (6.5X18X1.6)

09160-06109

$1.19

18

WASHER (6.3X16X1)

09169-06053

$1.15

19

NUT

08310-0006B

$2.44

20

BOX ASSY,PILOT LAMP

36380-32E10

$197.67

21

.SOCKET & CORD

36394-32E00

$50.20

22

.BULB (13.5V2W)

09471-12118

$2.30

23

SCREW

03511-1435B

$2.70

24

HOLDER,PILOT BOX

36382-32E00

$21.53

25

SCREW (6X25)

09139-06029

$4.99

26

SPACER (4.5X6.5X25)

09180-04024

$5.43

27

SPACER (6.1X8X15.5)

09180-06251

$2.28
