Description

Price

1

BODY,REAR FENDER FRONT

63112-32E00

$84.10

2-1

BODY,RR FENDER RR (WHITE) | BODY COLOR:30H

63113-32E30-30H

$147.38

2-2

BODY,RR FENDER RR (GRAY) | BODY COLOR:A8W

63113-32E30-YUD

$147.38

3

PLATE,FRAME COVER

47153-19C01

$8.97

4

EXTENSION,REAR FENDER

63311-32E00

$70.33

5

MUD GUARD,REAR FENDER

63411-32E00

Unavailable

6

BOLT (6X16)

09113-06001

$2.75

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.08

8

WASHER (6.3X16X1)

09169-06053

$1.10

9

SCREW(6X16) This part replaces 09139-06024.

09139-06237

$2.35

10

BOLT

01550-0616B

$2.53

11

CUSHION,REAR FENDER

63118-32E00

$11.00

12

CUSHION, EXTENSION This part replaces 63119-32E00.

94475-21E00

$16.15

13-1

EMBLEM, "SUZUKI" (WHITE,BLACK | /BLACK) BODY COLOR:30H

68177-04A00-8YM

$8.15

13-2

EMBLEM, "SUZUKI"(GRAY,BLACK) | /GRAY) BODY COLOR:A8W

68177-04A00-A8W

$7.73

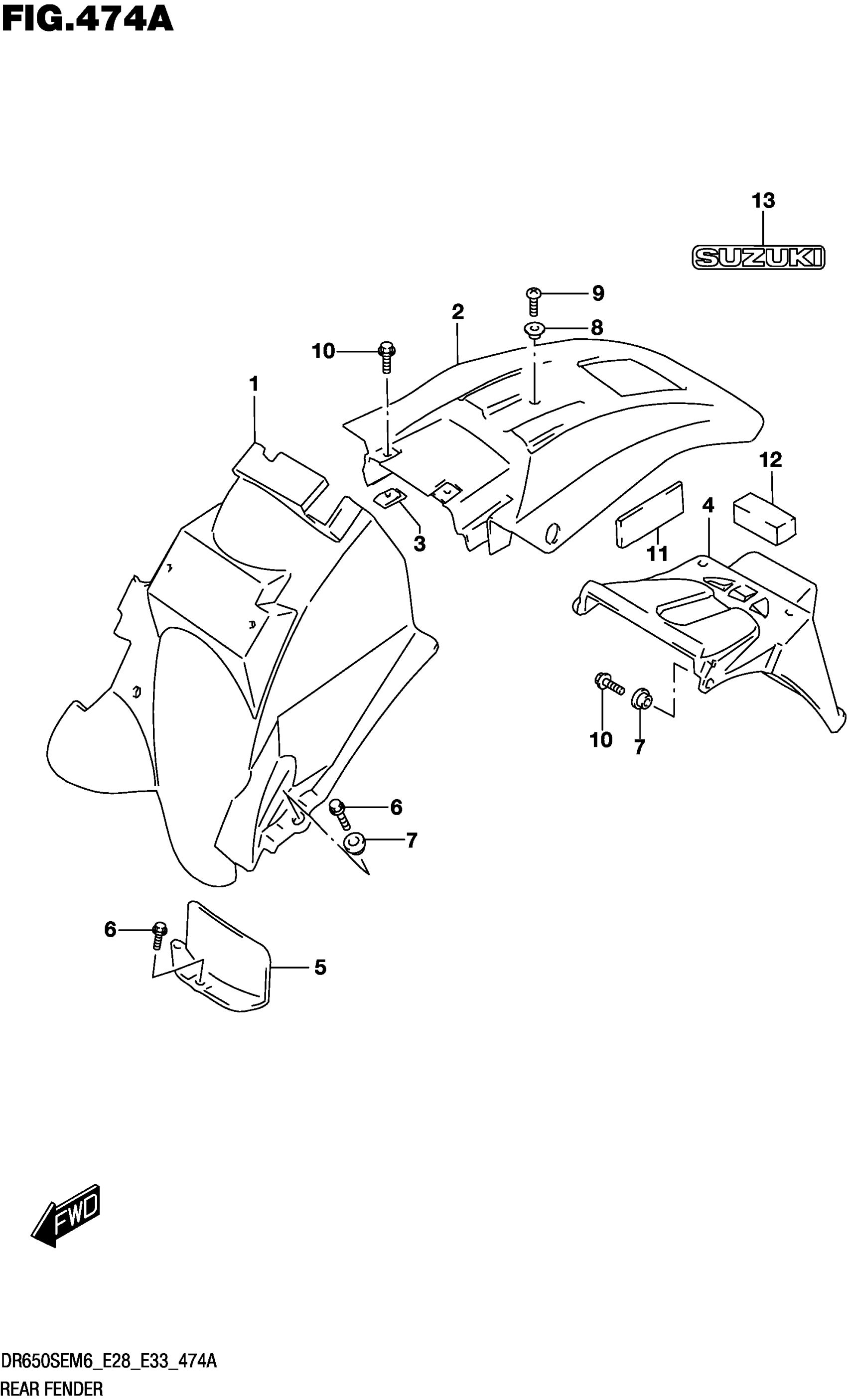

Suzuki DR650SEM6 (2026) REAR FENDER Diagram
