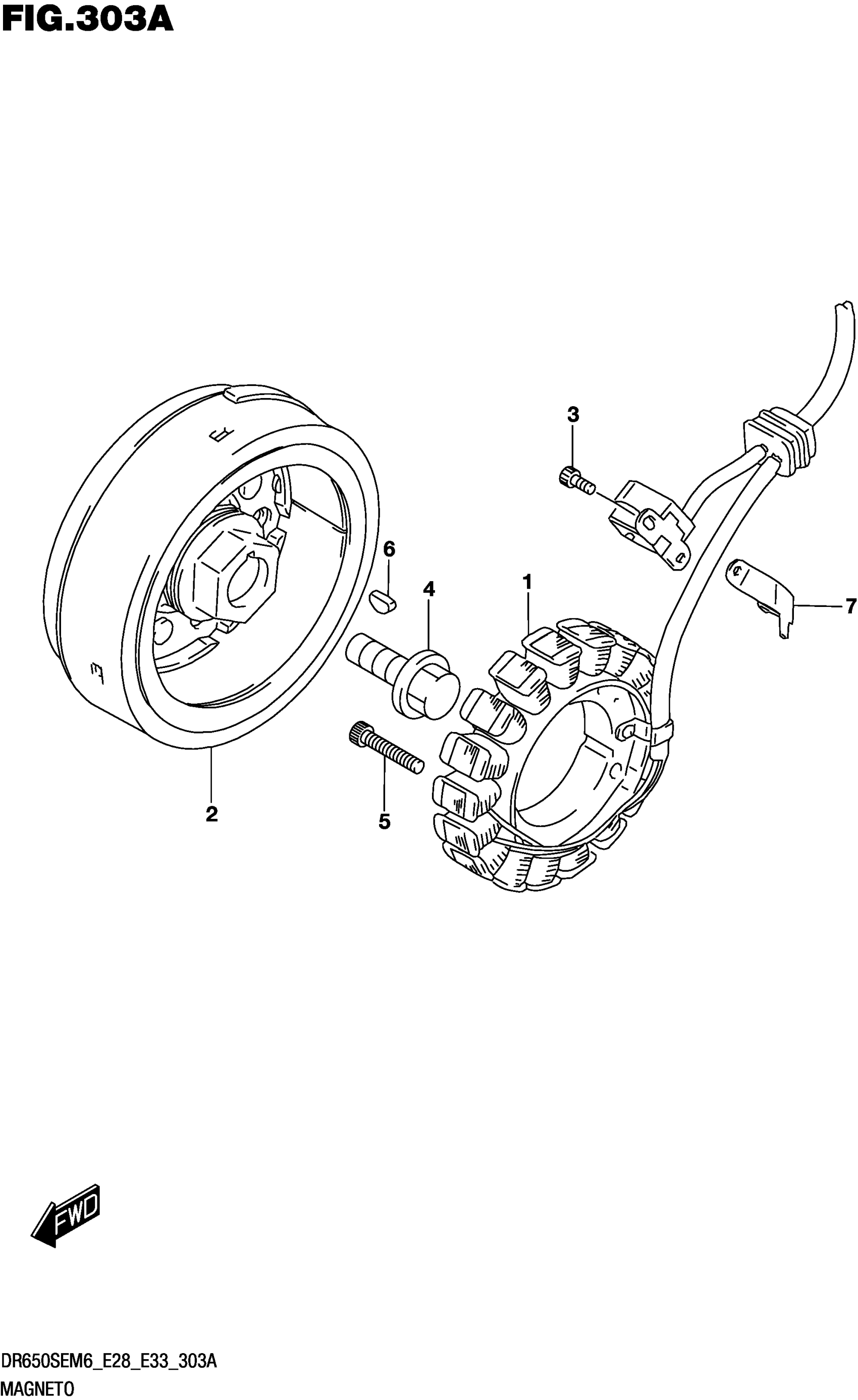

Suzuki DR650SEM6 (2026) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-32E01

$804.38

2

ROTOR ASSY

32102-32E00

$983.87

3

BOLT

07130-0510A

$2.92

4

BOLT (14X43)

09103-14001

$12.85

5

BOLT

07130-0630A

$4.03

6

KEY

09420-05007

$5.00

7

CLAMP,MAGNETO LEAD

32371-32E00

$7.12
