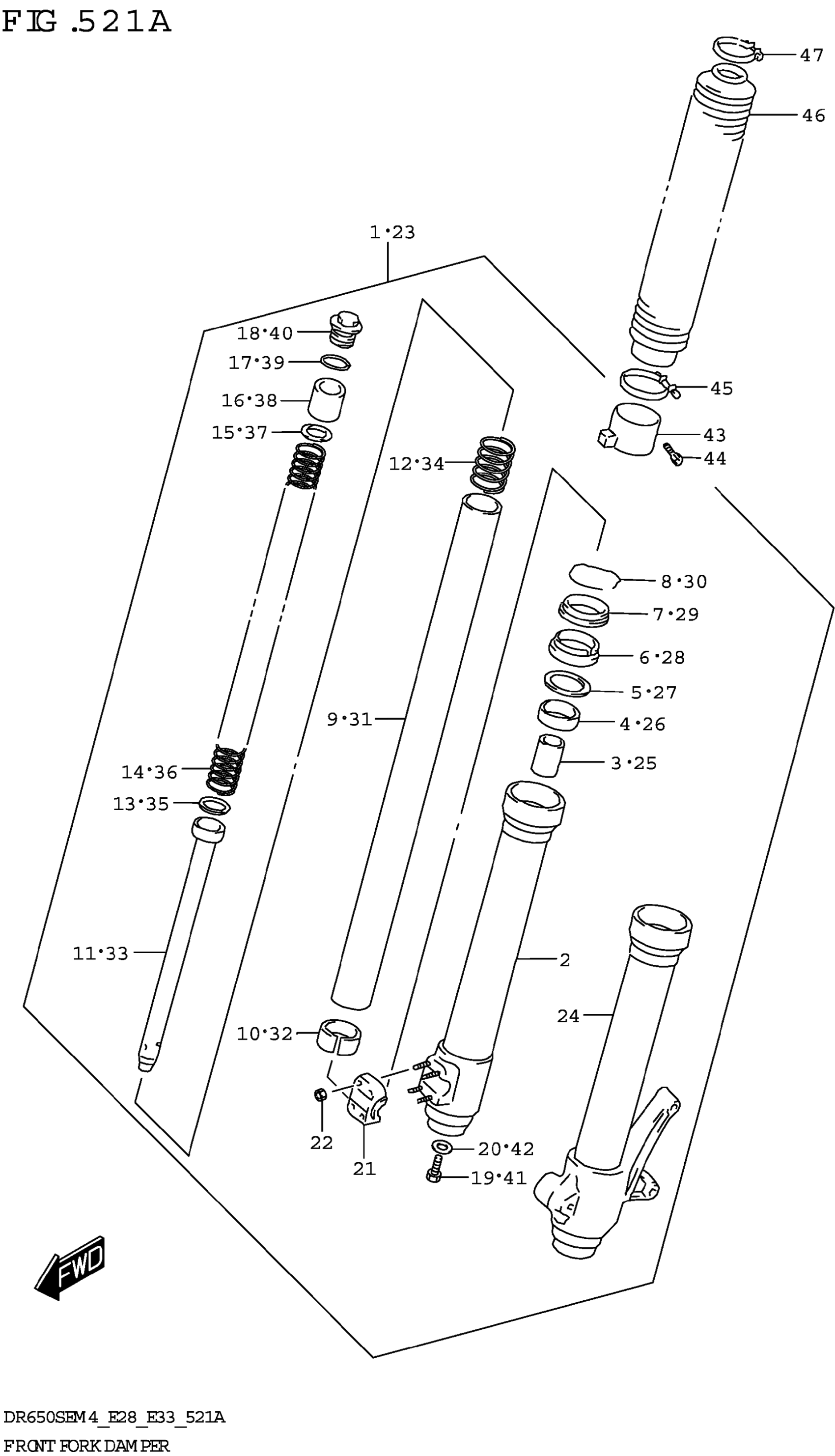

Suzuki DR650SEM4 (2024) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,R

51103-32E01

$1,307.22

2

.TUBE,OUTER RH

51130-32E00

$677.85

3

.PIECE,OIL LOCK

51195-06C00

$15.78

4

.METAL,SLIDE

51167-40C00

$15.18

5

.WASHER

51158-14200

$4.75

6

.SEAL,OIL

51153-14330

$12.48

7

.SEAL,DUST

51173-14330

$9.64

8

.RING,STOPPER

51156-14200

$4.63

9

.TUBE,INNER

51110-32E00

$643.45

10

..PISTON

51121-40C00

$19.86

11

.CYLINDER

51190-32E00

Unavailable

12

..SPRING,REBOUND

51177-14330

$11.63

13

..RING,PISTON

51196-31D00

$9.97

14

.SPRING

51171-32E00

Unavailable

15

.WASHER

51172-32E00

$7.57

16

.SPACER

51176-32E00

$45.52

17

.O RING

51117-14201

$2.67

18

.CAP,FORK

51351-31D00

$74.05

19

.BOLT,FORK CYLINDER (10X25)

51147-16510

$4.09

20

.GASKET

51148-41310

$2.14

21

.HOLDER,AXLE RH

51132-32E00

$71.43

22

.NUT,HOLDER,AXLE

51168-32E40

$12.63

23

DAMPER ASSY,FR FORK,L

51104-32E01

$1,307.22

24

.TUBE,OUTER LH

51140-32E00

$677.85

25

.PIECE,OIL LOCK

51195-06C00

$15.78

26

.METAL,SLIDE

51167-40C00

$15.18

27

.WASHER

51158-14200

$4.75

28

.SEAL,OIL

51153-14330

$12.48

29

.SEAL,DUST

51173-14330

$9.64

30

.RING,STOPPER

51156-14200

$4.63

31

.TUBE,INNER

51110-32E00

$643.45

32

..PISTON

51121-40C00

$19.86

33

.CYLINDER

51190-32E00

Unavailable

34

..SPRING,REBOUND

51177-14330

$11.63

35

..RING,PISTON

51196-31D00

$9.97

36

.SPRING

51171-32E00

Unavailable

37

.WASHER

51172-32E00

$7.57

38

.SPACER

51176-32E00

$45.52

39

.O RING

51117-14201

$2.67

40

.CAP,FORK

51351-31D00

$74.05

41

.BOLT,FORK CYLINDER (10X25)

51147-16510

$4.09

42

.GASKET

51148-41310

$2.14

43

GUIDE,BOOT

51203-32E01

$45.15

44

BOLT,GUIDE,BOOT

51579-32E40

Unavailable

45

BAND,BOOT,LOWER

51576-00B00

$14.10

46

BOOT,FRONT FORK

51571-32E01

$72.73

47

BAND,BOOT

51575-32E00

$17.88
