2023 Suzuki DR650SEM3 Fuel Tank Diagram

← All diagrams

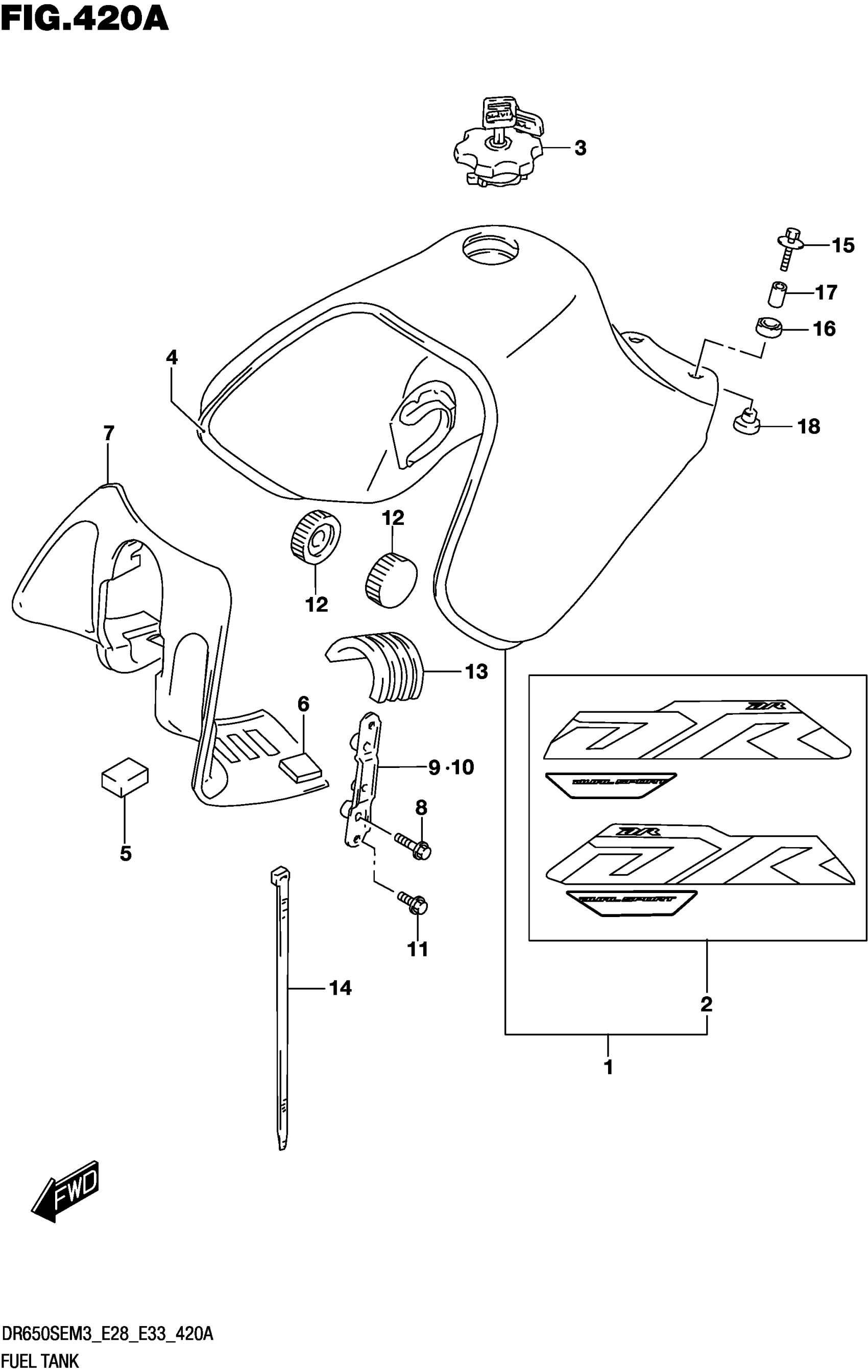

Find the part on the Fuel Tank diagram for your 2023 Suzuki DR650SEM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki DR650SEM3 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:30H

49100-32EA0-30H

1
Out of stock

1-2

TANK ASSY,FUEL (WHITE) | BODY COLOR:A8W

49100-32EA0-019

1
Out of stock

2-1

1

$114.95

In stock

2-2

1

$114.95

In stock

3

CAP SET,FUEL TA This part replaces 44200-05821.

44200-05822

1
Out of stock

4

MOLDING,FUEL TANK

68241-32E00

1
Out of stock

5

CUSHION This part replaces 63411-35B00.

51827-01A00

2
Out of stock

6

CUSHION This part replaces 44613-13600.

44831-17B00

2
Out of stock

7

COVER,FUEL TANK,FRONT

44271-32E00

1
Out of stock

8

BOLT (6X12)

09116-06210

4
Out of stock

9

BRACKET, FRONT COVER RH

44280-32E10

1
Out of stock

10

BRACKET, FRONT COVER LH

44290-32E10

1
Out of stock

11

BOLT (6X25)

01550-0625A

4
Out of stock

12

CUSHION,FUEL TANK,FRONT

44511-12D00

2
Out of stock

13

CUSHION,FUEL TANK,UPPER

44541-13E00

1
Out of stock

14

CLAMP (L:250)

09407-25402

1
Out of stock

15

BOLT (6X30)

09116-06214

2

$2.68

In stock

16

CUSHION (14.5X24X8)

09320-14022

2
Out of stock

17

SPACER (6.5X9X18)

09180-06271

2
Out of stock

18

CUSHION (9X24X18)

09320-10071

2
Out of stock
