2022 Suzuki DR650SEM2 Rear Master Cylinder Diagram

← All diagrams

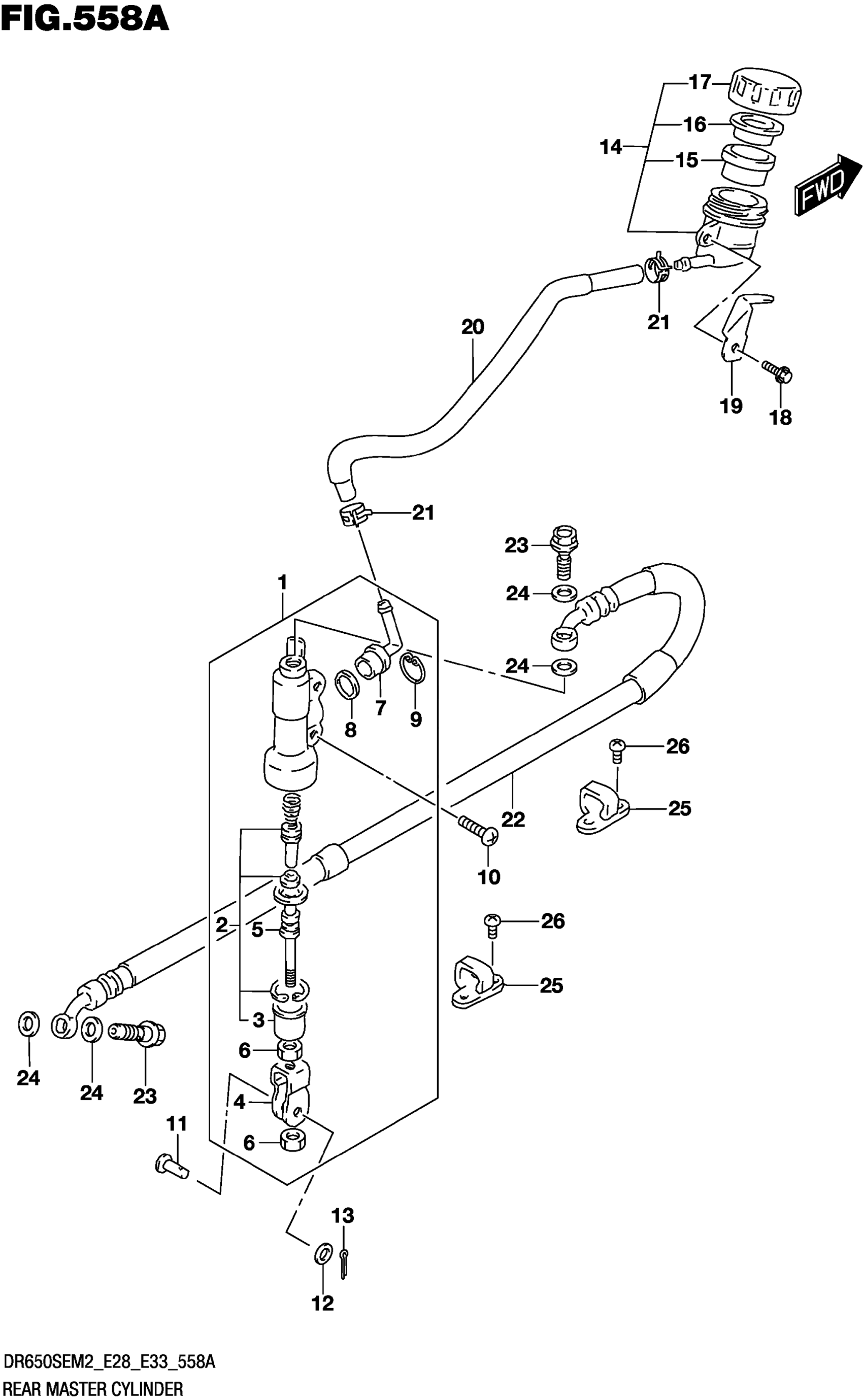

Find the part on the Rear Master Cylinder diagram for your 2022 Suzuki DR650SEM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DR650SEM2 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$348.28

In stock

2

.PISTON/CUP SET

69600-04821

1
Out of stock

3

.BOOT

69691-04A00

1
Out of stock

4

.YOKE

69692-13E00

1

$18.80

In stock

5

.ROD,PUSH

69670-27A30

1

$29.60

In stock

6

2

$2.16

In stock

7

.CONNECTOR

69672-00B20

1

$7.00

In stock

8

.O-RING

69686-34200

1

$2.92

In stock

9

.CIRCLIP

69674-00B20

1

$4.07

In stock

10

2

$2.53

In stock

11

PIN (8X20)

09200-08048

1

$2.92

In stock

12

WASHER (8.5X14X1.6)

09160-08090

1

$2.56

In stock

13

PIN

04111-2015A

1

$1.31

In stock

14

1

$85.67

In stock

15

.DIAPHRAGM

69667-00B20

1

$20.82

In stock

16

.PLATE

69668-00B20

1

$8.65

In stock

17

.CAP

69669-03D00

1

$25.55

In stock

18

BOLT

01550-0616A

1
Out of stock

19

GUARD,RSVR TANK CAP

69743-14D10

1

$7.77

In stock

20

HOSE,RESERVOIR TANK

69730-32E00

1

$55.55

In stock

21

CLIP (ID:12)

09401-12404

2
Out of stock

22

HOSE,REAR BRAKE

69480-32E02

1

$72.12

In stock

23

UNION (10X1.25X22)

09360-10062

2
Out of stock

24

WASHER (10X15X1.5)

09161-10009

4
Out of stock

25

GUIDE RR BRAKE (HOLE 1-5.5)

61196-27C50

2
Out of stock

26

SCREW This part replaces 02142-0510A.

02142-0510B

2
Out of stock
