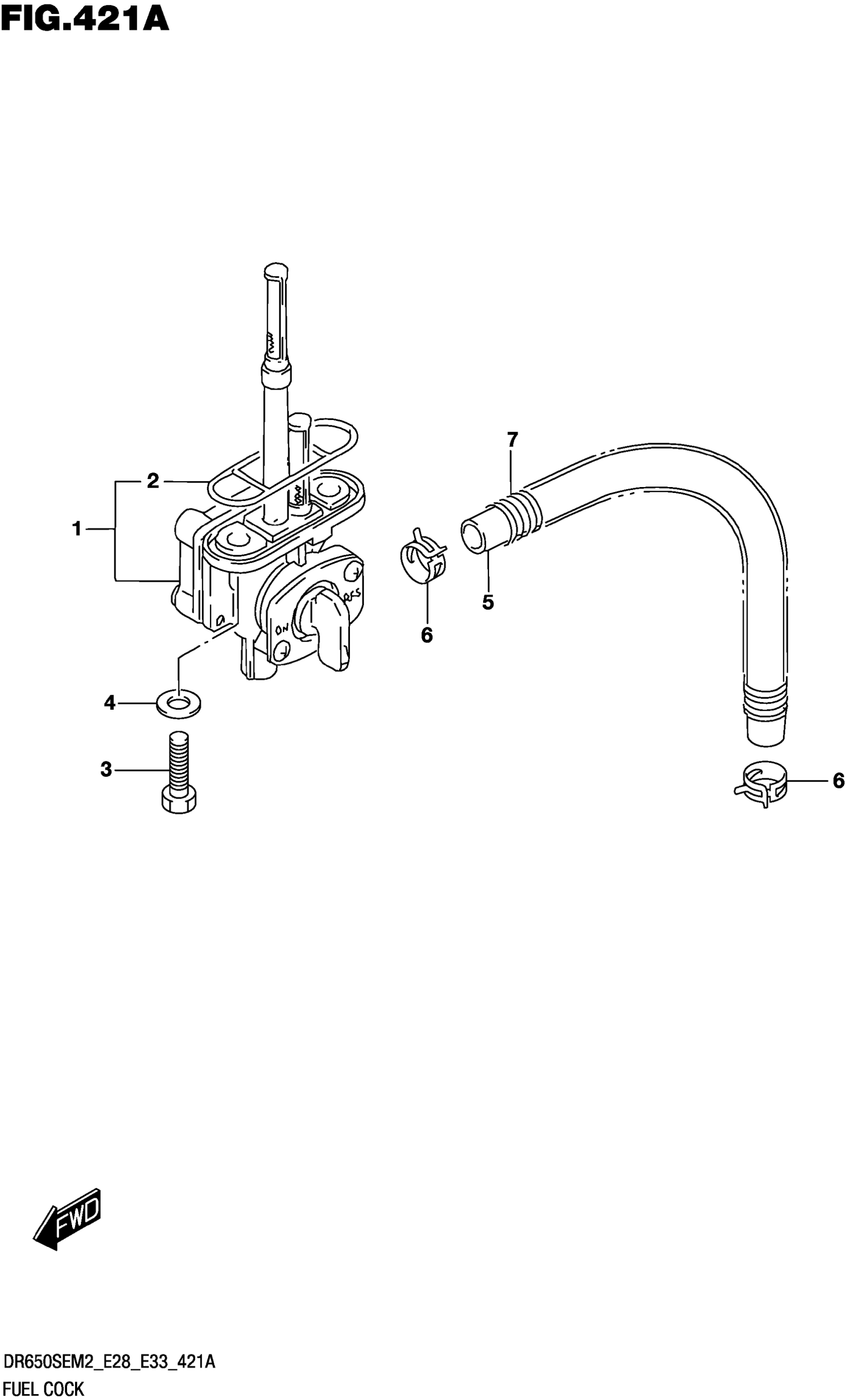

Suzuki DR650SEM2 (2022) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL

44300-32E01

$89.43

2

.GASKET JOINT

44348-87421

$4.90

3

BOLT This part replaces 09128-06006.

09128-06057

$1.64

4

GASKET (6.4X11.5X0.84)

09168-06026

$2.80

5

HOSE,FUEL (7X11X160)

44421-32EA1

$14.28

6

CLIP (ID:10.5,H:8)

09401-10409

$2.28

7

SPRING

09440-13041

$3.56
