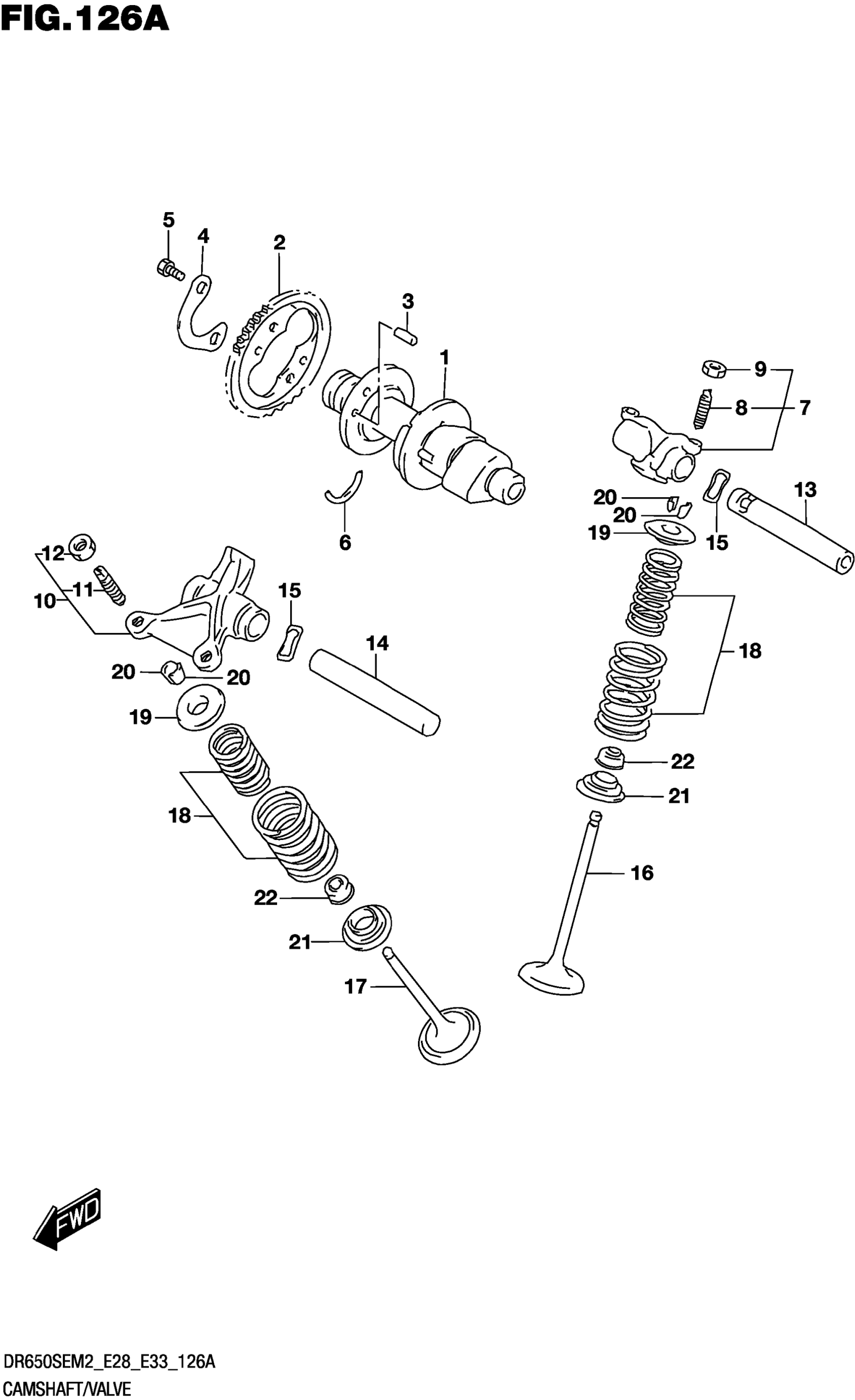

Suzuki DR650SEM2 (2022) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-32E01

$494.63

2

SPROCKET,CAM SHAFT (NT:38)

12741-32E00

$57.75

3

PIN (5X8)

09261-05005

$1.43

4

WASHER,SPROCKET

12747-44B00

$2.80

5

BOLT (6X10.5)

09100-06166

$3.30

6

C-RING

09390-22002

$2.33

7

ARM,VALVE ROCKER,IN

12840-32E00

$112.88

8

.SCREW,TAPPET ADJUSTING

12842-38A00

$6.95

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM,VALVE ROCKER,EX

12850-32E00

$112.88

11

.SCREW,TAPPET ADJUSTING

12842-38A00

$6.95

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$34.90

14

SHAFT,VALVE ROCKER ARM,EX

12871-14D50

$31.90

15

WASHER (12.7X18.1X0.2)

09164-12018

$1.41

16

VALVE,INTAKE

12911-19B00

$37.16

17

VALVE,EXHAUST

12912-42A00

$59.75

18

SPRING SET,VALVE

12920-32E00

$19.03

19

RETAINER,VALVE SPRING

12931-33201

$9.35

20

COTTER, VALVE

12932-24400

$1.98

21

SEAT,VALVE SPRING

12933-81400

$4.86

22

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04
