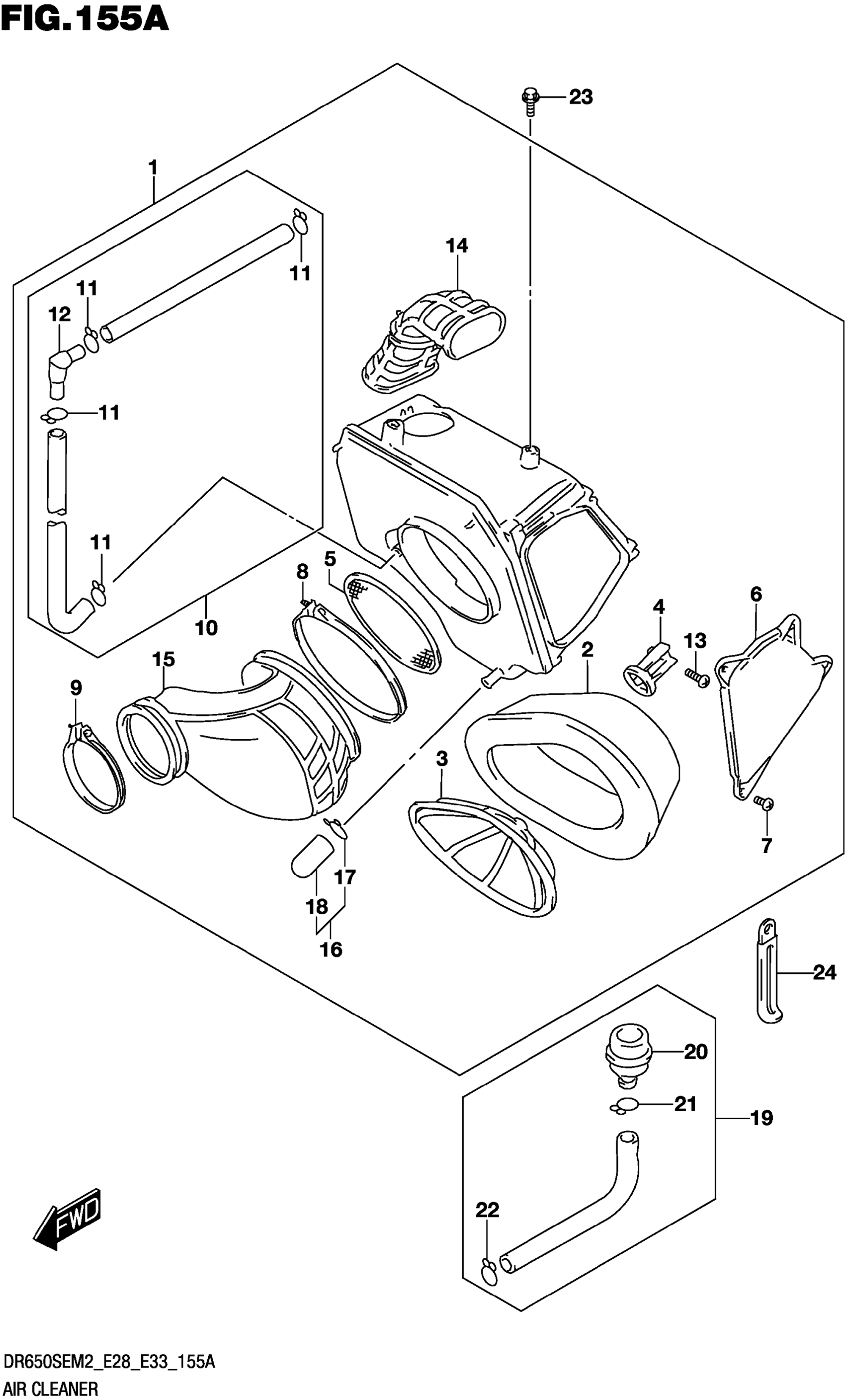

Suzuki DR650SEM2 (2022) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-32E00

$480.35

2

.FILTER

13780-32E00

$42.63

3

.HOLDER,FILTER

13791-32E00

$20.84

4

.STOPPER,HOLDER

13792-32E00

$7.39

5

.TRAP,FRAME

13810-14D02

$11.12

6

.CAP,CLEANER

13740-32E00

$28.79

7

.SCREW

02142-0512A

$1.41

8

.CLAMP, OUTLET TUBE | DE)

13826-14D01

$8.92

9

.CLAMP (L:25)

09402-64203

$6.12

10

.TUBE ASSY,BREATHER

13850-32E00

$36.68

11

.CLIP

09401-14301

$2.17

12

.JOINT

13858-14D20

$7.11

13

SCREW

02142-0620A

$1.43

14

.TUBE,INLET

13891-32E00

$60.85

15

.TUBE,OUTLET

13881-32E00

$108.60

16

.PLUG ASSY,DRAIN

13856-19B03

$12.35

17

.CLIP (ID:14.5)

09401-14101

$2.44

18

.PLUG

13859-41B10

$7.26

19

CLEANER ASSY,AIR,NO.2

13800-32E00

$64.25

20

.FILTER,2ND AIR CLEANER

18780-32E00

$28.01

21

.CLIP (ID:16.5)

09401-16401

$2.97

22

.CLIP

09401-14301

$2.17

23

BOLT

01550-0612A

$2.01

24

CLAMP (L:80)

09404-06030

Unavailable
