Description

Price

1

PIPE,2ND AIR

18410-32E20

$43.00

2

GASKET 2ND AIR PIPE

18441-45C01

$6.45

3

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38

4

HOSE,2ND AIR PIPE

18461-32E01

$34.67

5

CLIP (ID:13.5)

09401-13409

$2.13

6

VALVE ASSY 2ND AIR

18450-29F02

$128.75

7

SPACER 2ND AIR VALVE RR

18612-29F00

$10.42

8

BOLT

01547-0665A

$2.34

9

CLIP (ID:15.5)

09401-15101

$2.28

10

HOSE 2ND AIR CLEANER JT

18712-29F01

Unavailable

11

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$9.35

12

HOSE,2ND AIR CLNR

18711-32E01

$11.32

13

CLEANER 2ND AIR

18700-29F00

$21.98

14

HOSE

09359-40703-600

$10.43

15

HOSE,2ND AIR CLNR INLET

09352-11163-270

$6.22

16

CLAMP (L:45)

09404-06429

$1.82

17

CLAMP (L:165)

09407-18402

$2.21

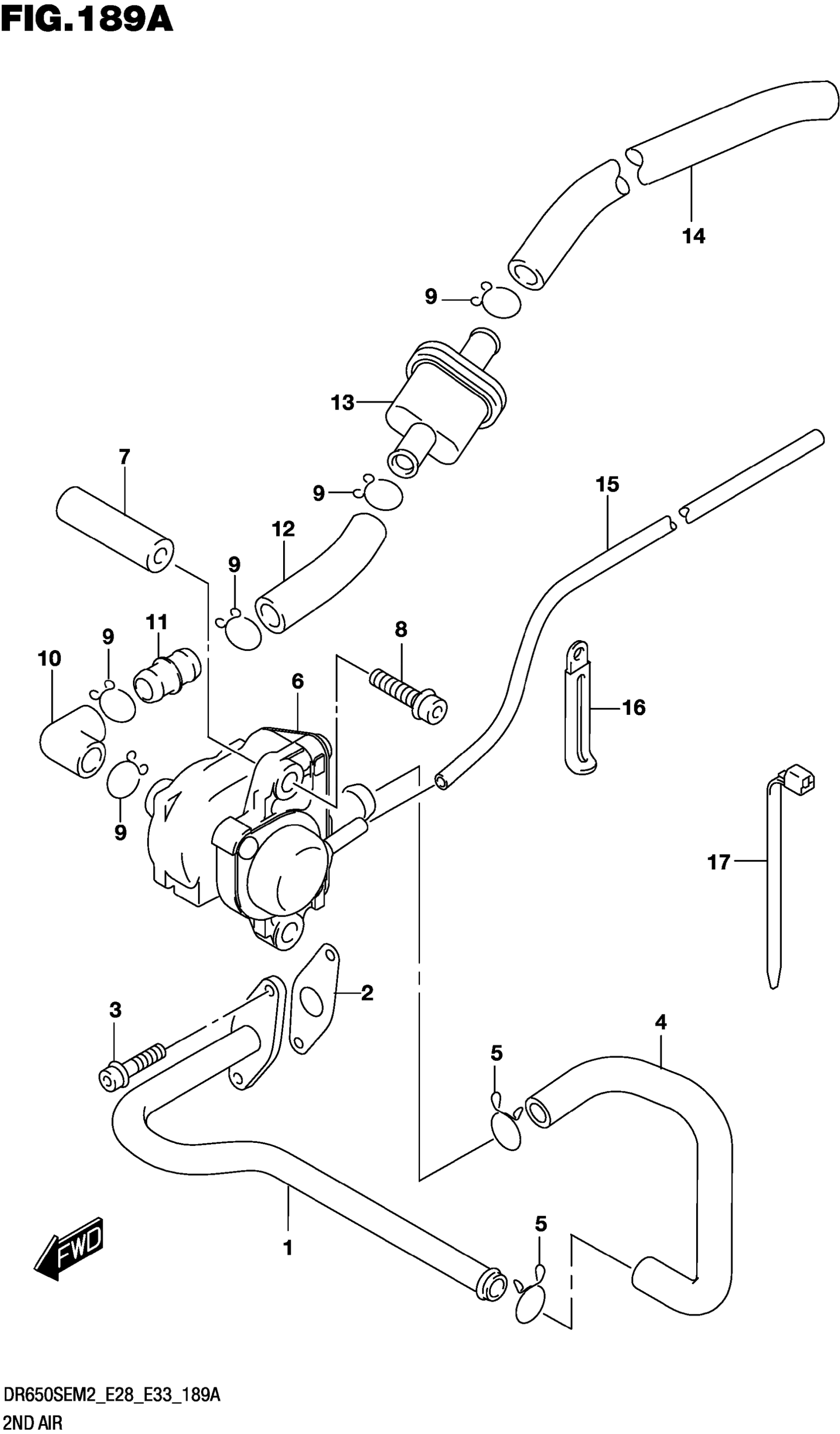

Suzuki DR650SEM2 (2022) 2ND AIR Diagram
