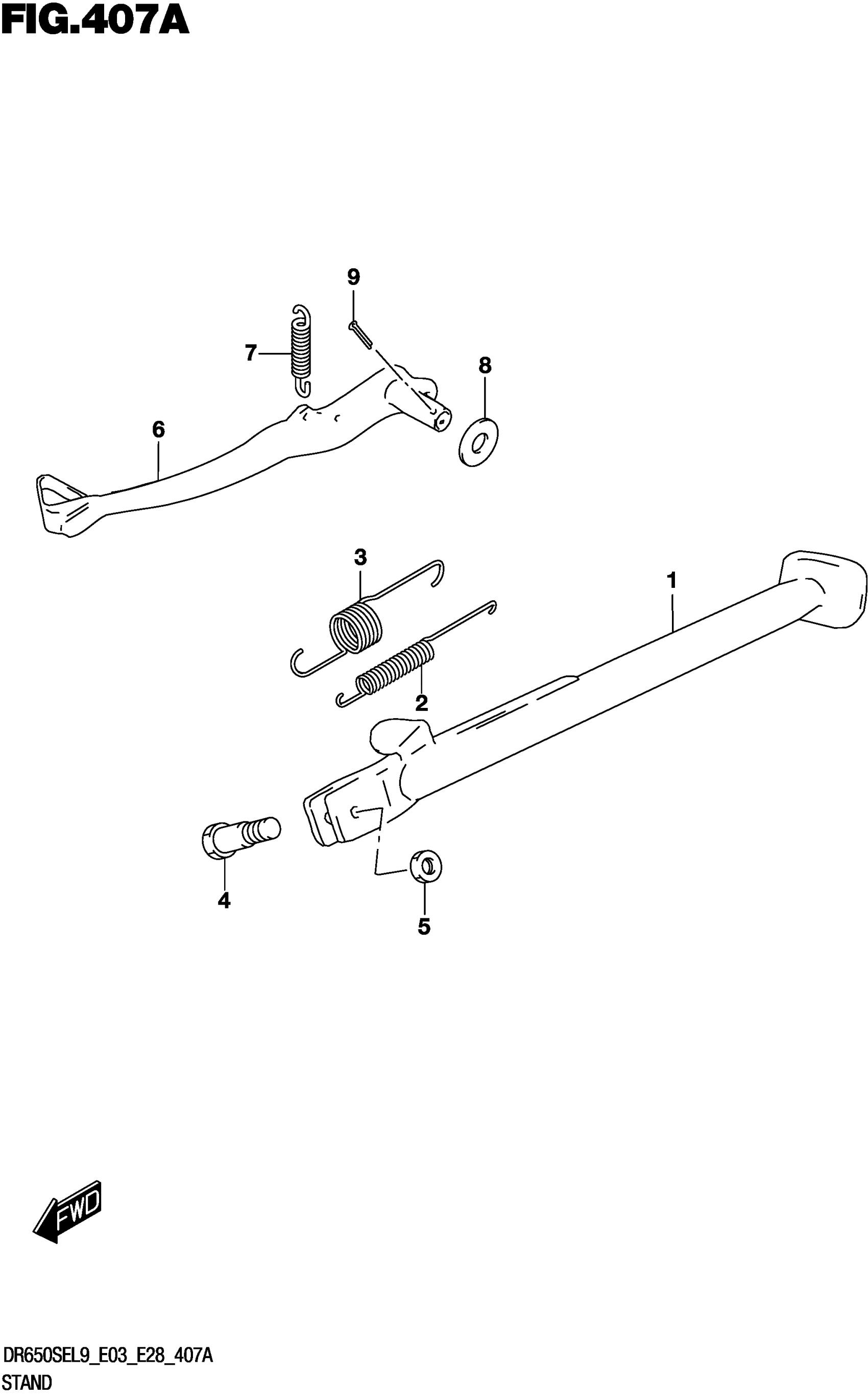

Suzuki DR650SEL9 (2019) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-32E20

$153.22

2

SPRING

09443-12045

$7.08

3

SPRING

09443-19010

$5.97

4

BOLT (10X30)

09111-10047

$3.76

5

NUT

09159-10097

$5.10

6

PEDAL,BRAKE

43110-32E00

$96.75

7

SPRING

09443-11030

$3.33

8

WASHER (15.5X24X2.3)

09160-15049

$3.22

9

PIN

04111-3025A

$1.38
