Description

Price

1

GASKET SET | OPT

11400-32874

$184.18

2

.GASKET,CYLINDER HEAD | NOT ILLUSTRATED

11141-32E00

$39.51

3

.O RING,INSPECTION CAP | NOT ILLUSTRATED

11177-44B01

$4.73

4

.GASKET,CYLINDER | NOT ILLUSTRATED

11241-04F20

$18.70

5

.GASKET,CLUTCH COVER | NOT ILLUSTRATED

11482-32E00

$19.30

6

.GASKET,MAGNETO COVER | NOT ILLUSTRATED

11483-32E00

$16.94

7

.GASKET,GEAR SHIFT COVER | NOT ILLUSTRATED

11485-12D01

$5.34

8

.GASKET,TENSIONER ADJUSTER | NOT ILLUSTRATED

12837-24A10

$2.97

9

.GASKET,EXHAUST PIPE | NOT ILLUSTRATED

14181-22D01

$9.25

10

O-RING (D:2.4,ID:15.8) | NOT ILLUSTRATED

09280-15007

$1.71

11

O-RING (D:3.1,ID:16.8) | NOT ILLUSTRATED

09280-17003

$1.64

12

.O-RING (D:2.4,ID:46.0) | NOT ILLUSTRATED

09280-46002

$9.46

13

.O RING (D:2.4,ID:73) | NOT ILLUSTRATED

09280-72001

$4.47

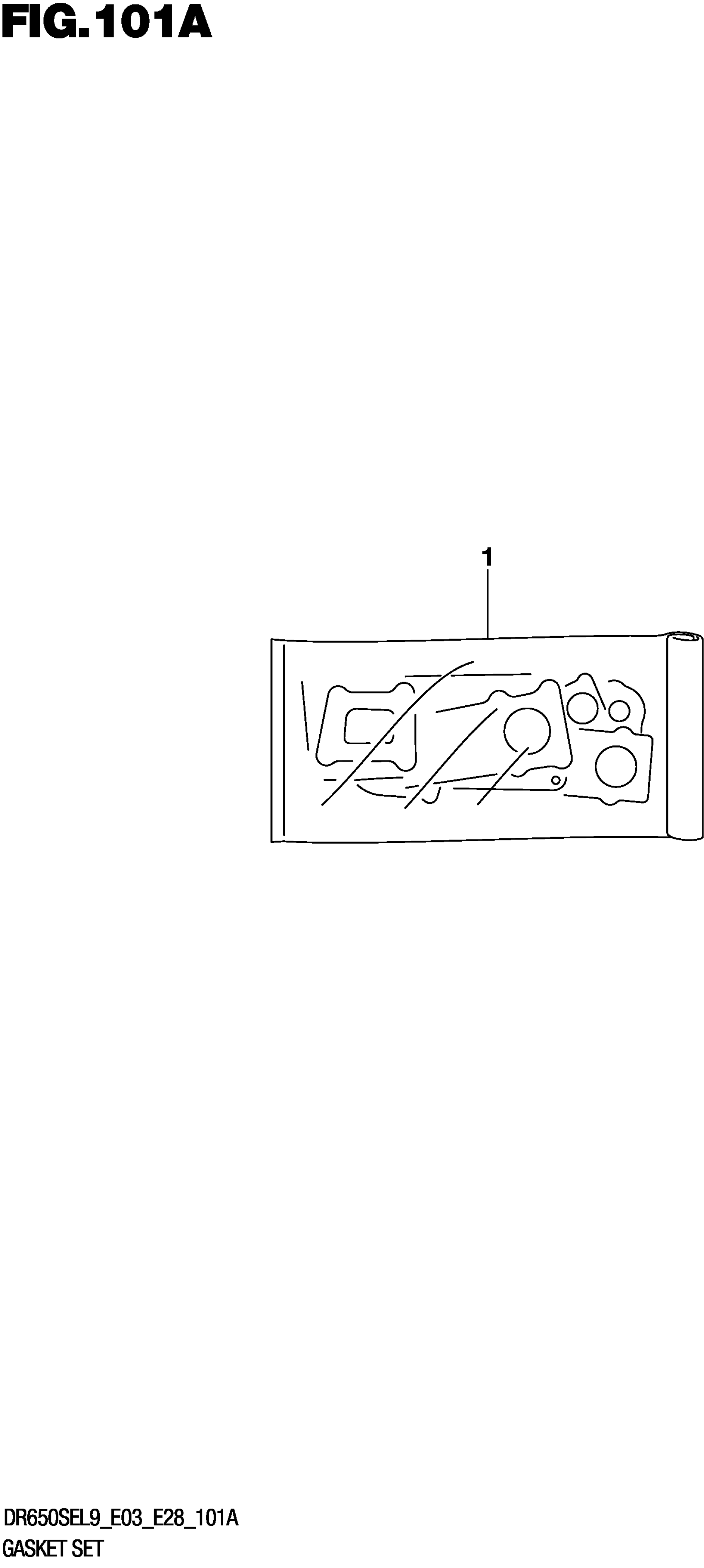

Suzuki DR650SEL9 (2019) GASKET SET Diagram
