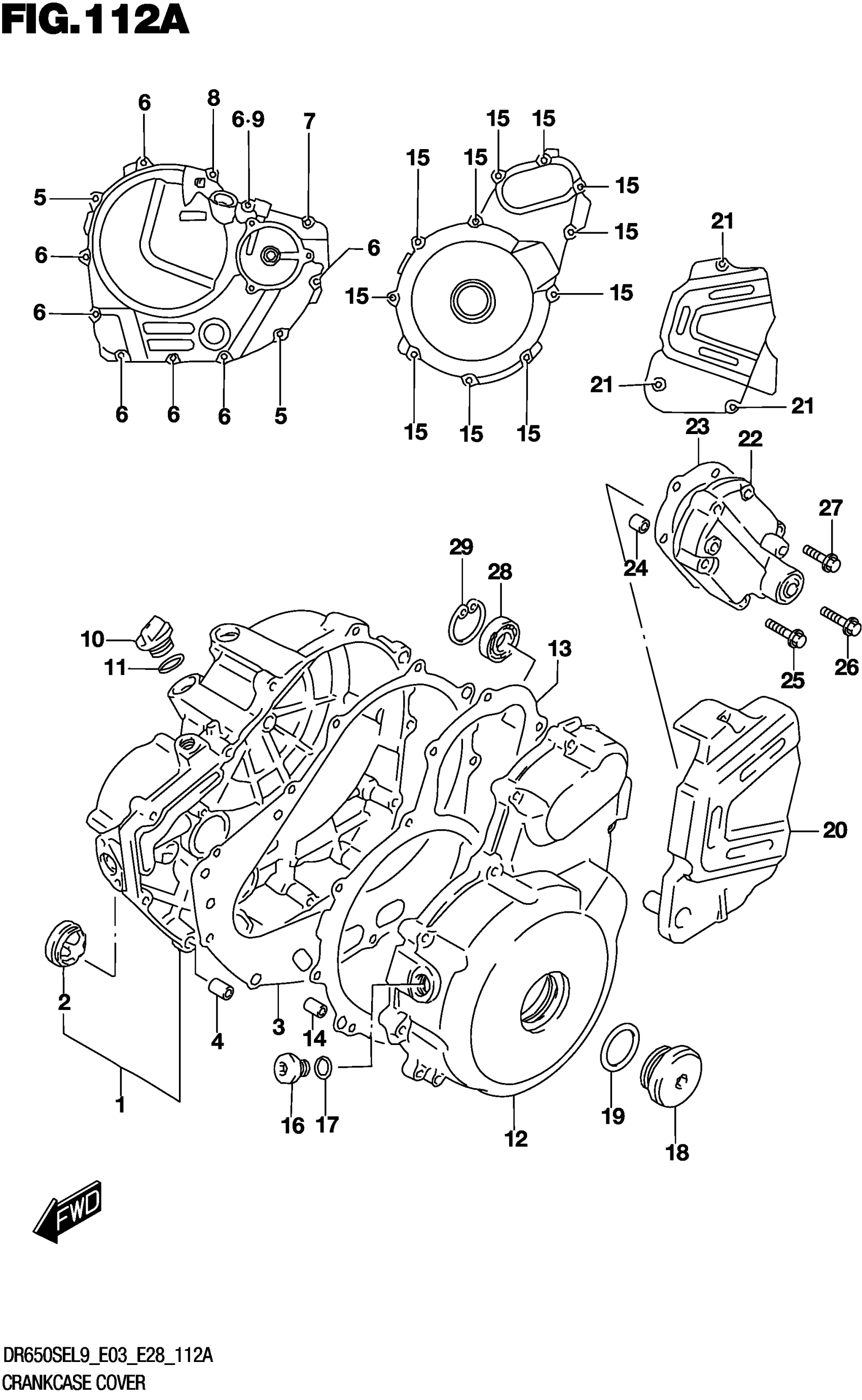

Suzuki DR650SEL9 (2019) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-32E00

$375.68

2

.LENS,OIL LEVEL CHECK

11971-33210

$16.66

3

.GASKET,CLUTCH COVER

11482-32E00

$19.30

4

PIN (8.5X18X2.3)

04211-09149

$1.64

5

BOLT

01547-0645A

$2.43

6

BOLT

01547-0635A

$2.31

7

BOLT

01547-0630A

$2.31

8

BOLT

01547-0625A

$2.01

9

GASKET (5.8X13X1.2)

09168-06023

$2.01

10

PLUG (20X10)

09259-20019

$10.55

11

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

12

COVER,MAGNETO

11351-32E01

$304.95

13

.GASKET,MAGNETO COVER

11483-32E00

$16.94

14

PIN (8.5X18X2.3)

04211-09149

$1.64

15

BOLT

01547-0630A

$2.31

16

PLUG (14X12)

09248-14011

$2.80

17

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

18

PLUG (36X10,SILVER)

09259-36016-20H

$12.45

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

COVER,ENG SPROCKET

11361-32E00

$102.83

21

BOLT

01547-0635A

$2.31

22

COVER,GEAR SHF

11371-12D30

$98.00

23

.GASKET,GEAR SHIFT COVER

11485-12D01

$5.34

24

PIN (8.5X18X2.3)

04211-09149

$1.64

25

BOLT

01547-0635A

$2.31

26

BOLT

01547-0630A

$2.31

27

BOLT

01547-0620A

$2.01

28

BEARING (12X28X8)

09262-12001

$16.90

29

CIRCLIP

08331-41289

$2.92
