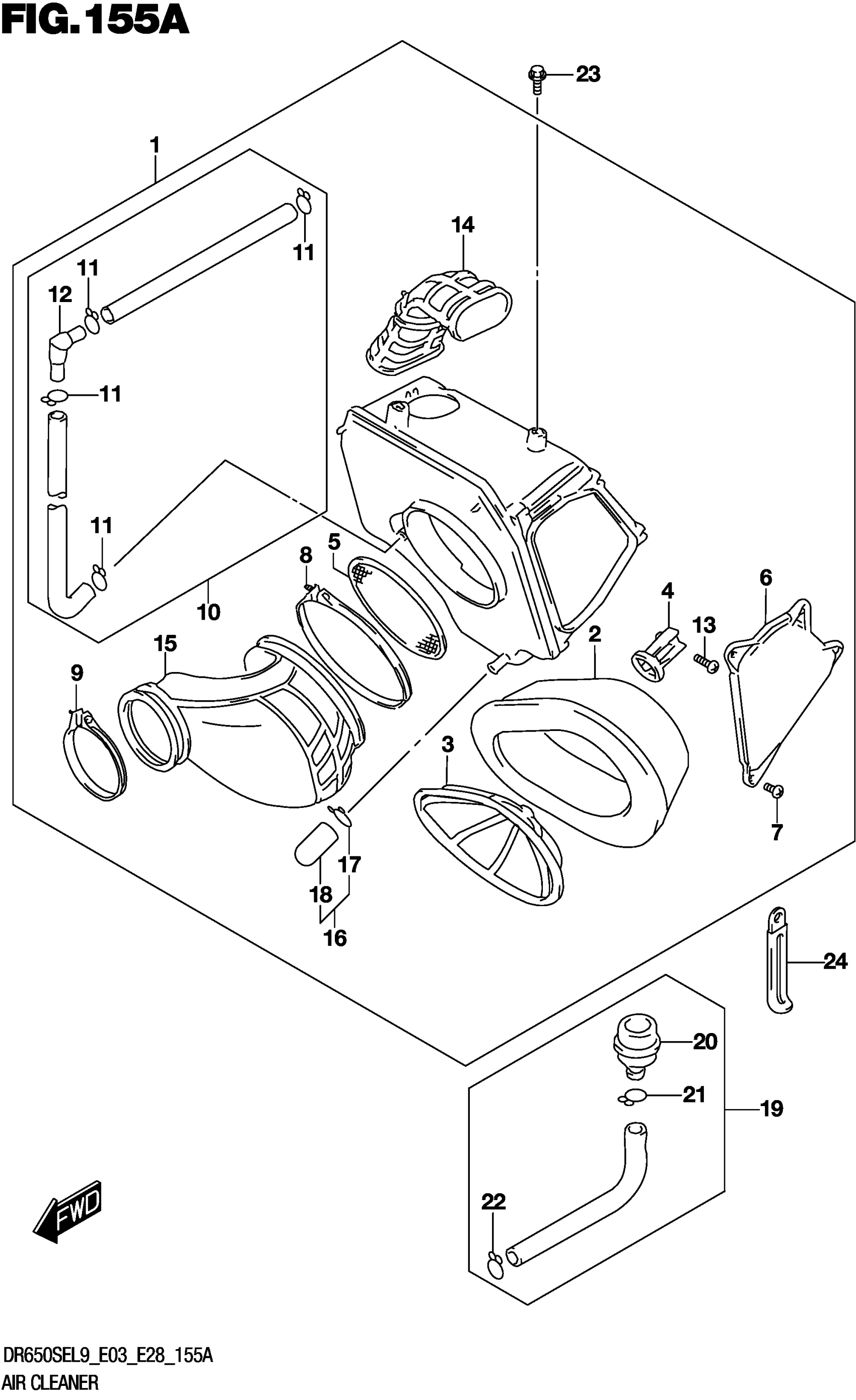

Find the part on the AIR Cleaner diagram for your 2019 Suzuki DR650SEL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR650SEL9 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-32E00

1
Out of stock

2

.FILTER

13780-32E00

1
Out of stock

3

.HOLDER,FILTER

13791-32E00

1
Out of stock

4

.STOPPER,HOLDER

13792-32E00

1
Out of stock

5

.TRAP,FRAME

13810-14D02

1
Out of stock

6

.CAP,CLEANER

13740-32E00

1
Out of stock

7

.SCREW

02142-0512A

4
Out of stock

8

.CLAMP, OUTLET TUBE

13826-14D01

1
Out of stock

9

.CLAMP (L:25)

09402-64203

1
Out of stock

10

.TUBE ASSY,BREATHER

13850-32E00

1
Out of stock

11

.CLIP

09401-14301

4
Out of stock

12

.JOINT

13858-14D20

1

$7.41

In stock

13

SCREW

02142-0620A

1
Out of stock

14

.TUBE,INLET

13891-32E00

1
Out of stock

15

.TUBE,OUTLET

13881-32E00

1
Out of stock

16

.PLUG ASSY,DRAIN

13856-19B03

1
Out of stock

17

.CLIP (ID:14.5)

09401-14101

1
Out of stock

18

.PLUG

13859-41B10

1
Out of stock

19

CLEANER ASSY,AIR,NO.2

13800-32E00

1
Out of stock

20

.FILTER,2ND AIR CLEANER

18780-32E00

1
Out of stock

21

.CLIP (ID:16.5)

09401-16401

1
Out of stock

22

.CLIP

09401-14301

1
Out of stock

23

BOLT

01550-0612A

3
Out of stock

24

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock
