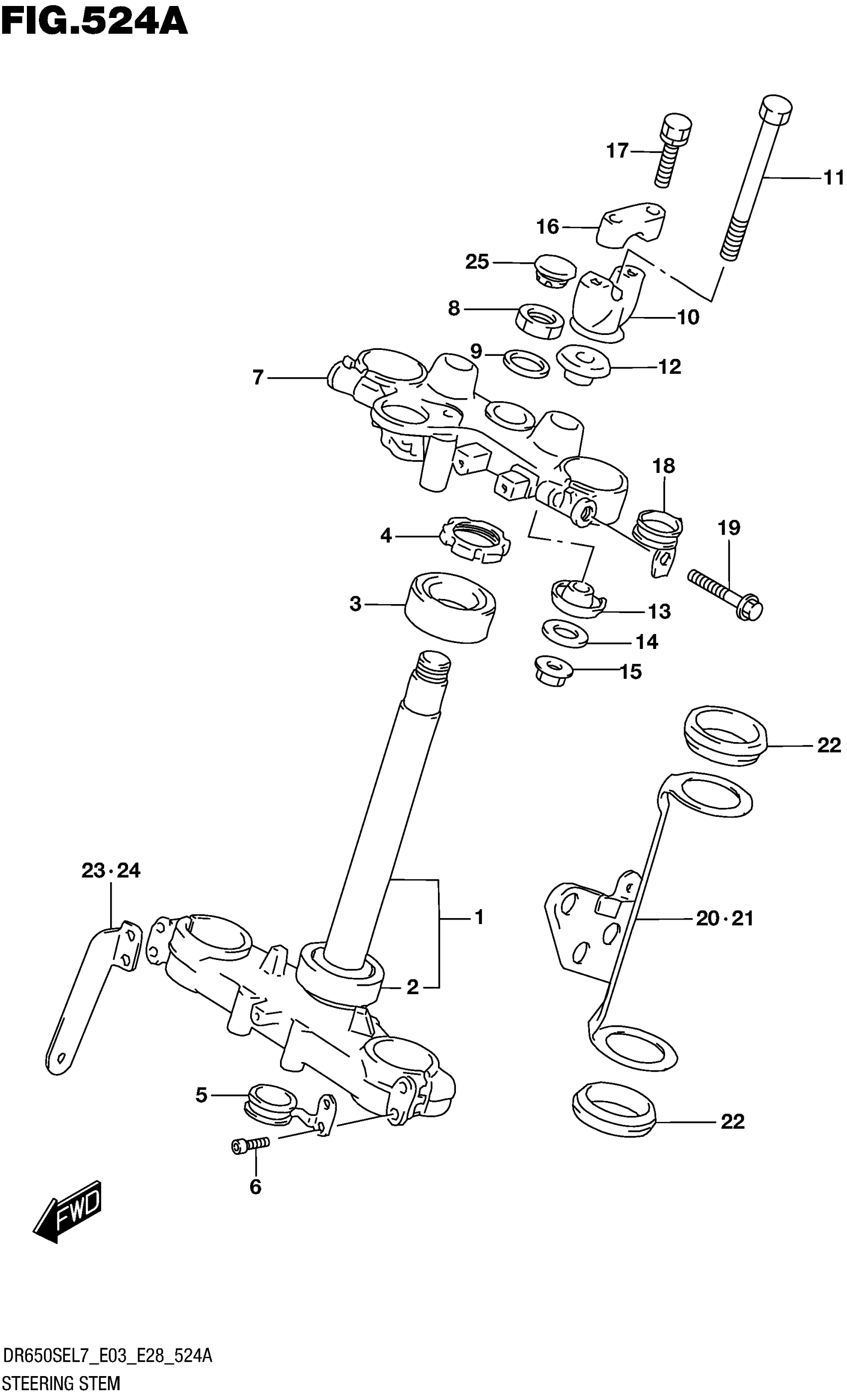

Suzuki DR650SEL7 (2017) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER This part replaces 51410-32E00.

51410-32E01

$697.20

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

3

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

4

NUT STEERING

51631-28E00

$32.60

5

GUIDE,BRAKE HOSE LOWER

51453-32E10

$33.03

6

BOLT, BRACKET LOW

51451-32E40

$7.03

7

HEAD,STEERING STEM

51311-32E00

$417.37

8

NUT

51353-32E00

$40.38

9

WASHER

51356-27C00

$7.62

10

HOLDER, HANDLE LOWER (BLACK)

56221-14330-291

$60.18

11

BOLT

56321-28C00

$7.80

12

RUBBER, UPPER

56241-14A00

$31.68

13

RUBBER, LOWER

56242-14200

$33.97

14

WASHER (10.5X28X2.3)

09160-10035

$1.80

15

NUT

08319-31107

$2.73

16

HOLDER, HANDLE UPPER (BLACK)

56211-29320-291

$14.60

17

BOLT,HANDLE HOLD

51321-31D20

$3.80

18

CLIP

51288-32E00

$33.67

19

BOLT,BRACKET,UPP

51328-32E40

Unavailable

20

COVER,FORK RH

51530-32E00

$118.23

21

COVER,FORK LH

51540-32E00

Unavailable

22

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-15D00.

51553-15D01

$3.66

23

BRACKET, SIDE RH

35956-44B01

$13.35

24

BRACKET, SIDE LH

35957-44B01

$13.35

25

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.67
