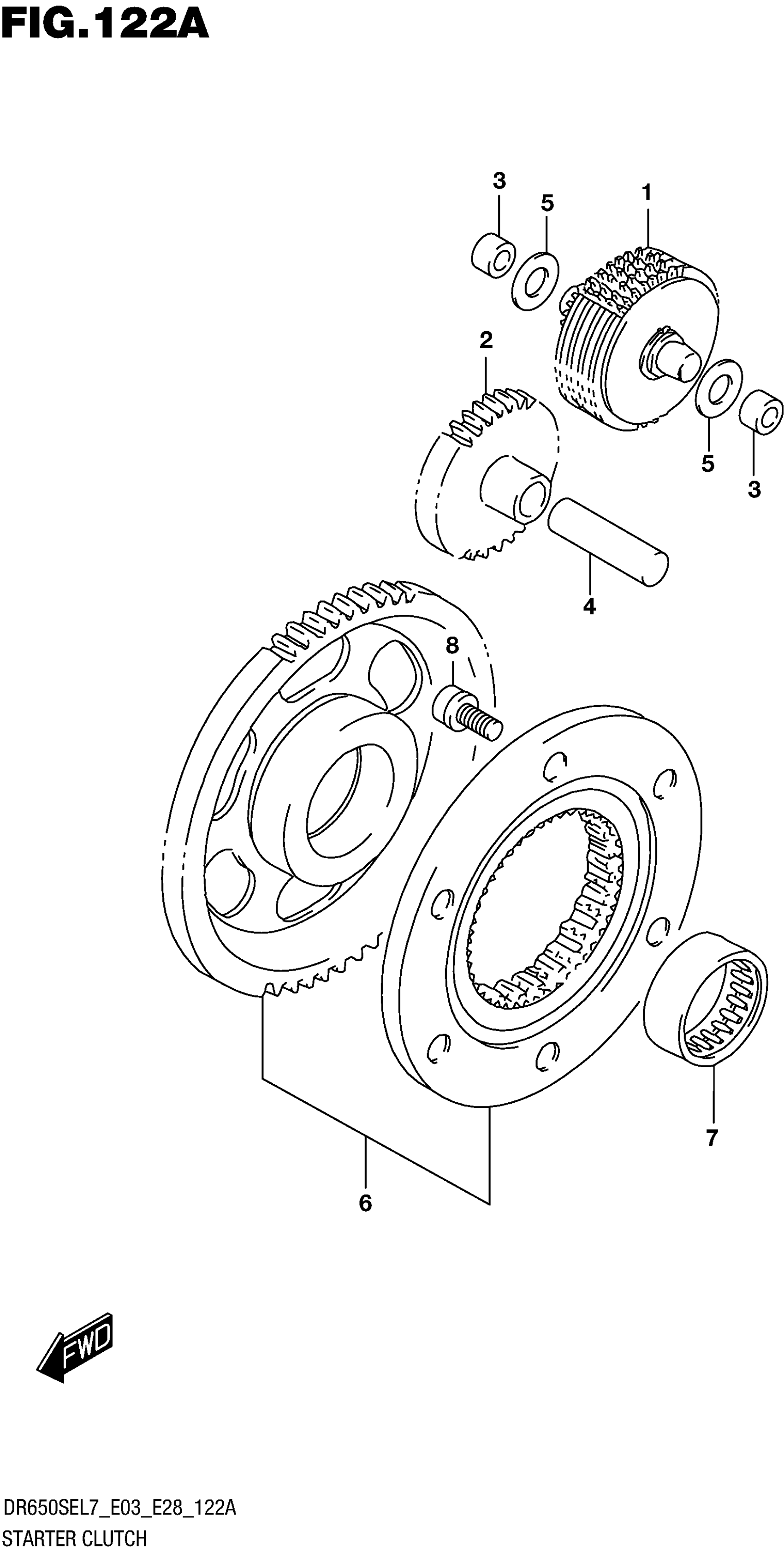

Suzuki DR650SEL7 (2017) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE

12600-12D01

$291.88

1

GEAR (NT:44)

12600-12D01

$291.88

2

GEAR, STARTER IDLE NO.2

12612-12D01

$94.40

2

(NT:27)

12612-12D01

$94.40

3

BUSH LIMITER GEAR SHAFT

12618-31D01

$21.64

4

PIN This part replaces 09202-12002.

09206-12006

$8.94

5

WASHER

08211-10221

$2.01

6

CLUTCH SET, STARTER (NT:73)

12600-09860

$386.90

7

BEARING (31X39X17.8)

09263-31009

$51.08

8

BOLT (8X20)

09106-08106

$3.30
