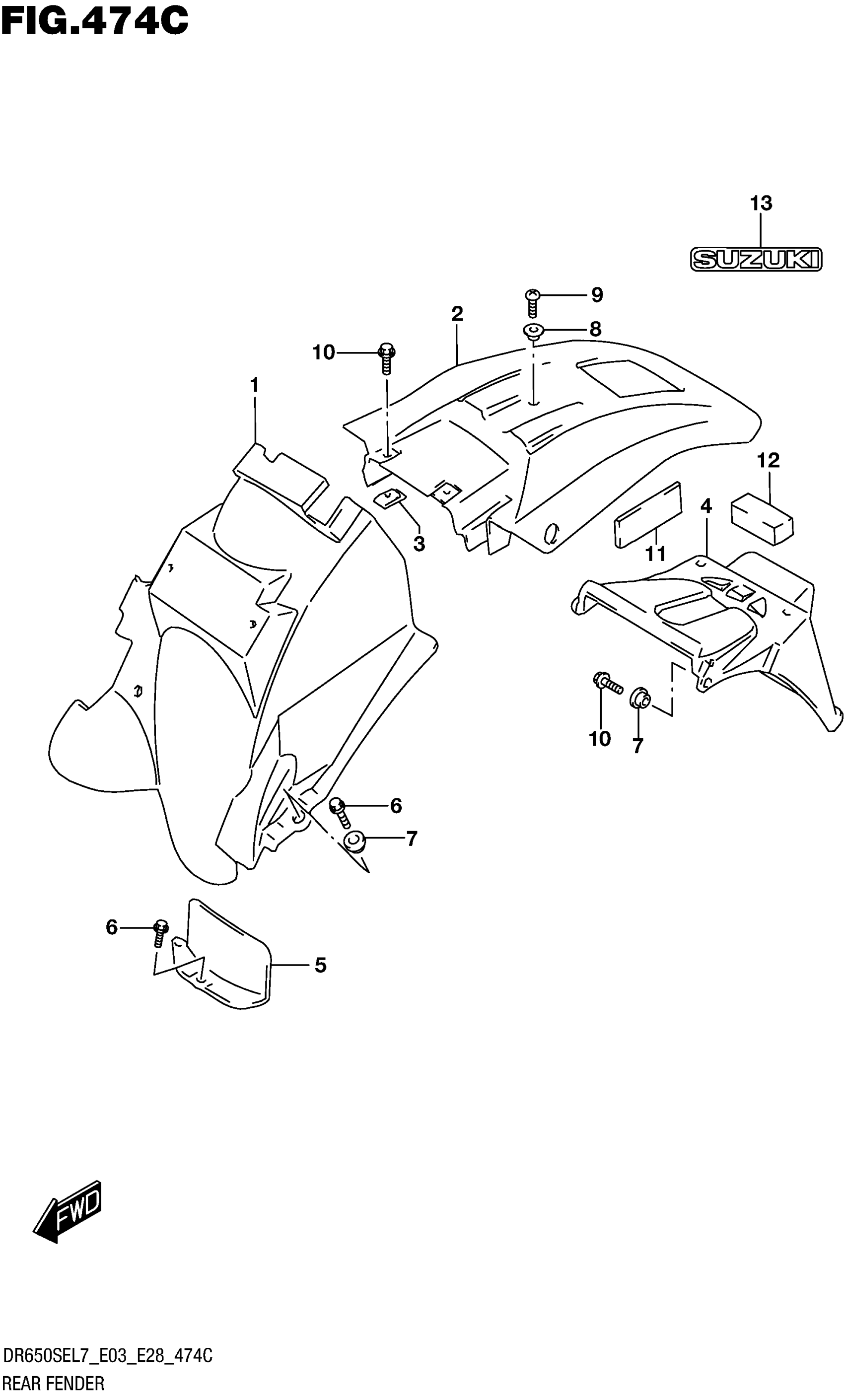

Suzuki DR650SEL7 (2017) REAR FENDER (DR650SEL7 E33) Diagram

BODY,REAR FENDER FRONT

63112-32E00

$84.10

BODY,RR FENDER RR (BLACK)

63113-32E30-019

$147.38

NUT, FENDER REAR

47153-19C01

$8.97

EXTENSION,REAR FENDER

63311-32E00

$70.33

MUD GUARD,REAR FENDER

63411-32E00

Unavailable

BOLT (6X16)

09113-06001

$2.75

WASHER

09169-06073

$3.08

WASHER (6.3X16X1)

09169-06053

$1.10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

BOLT

01550-0616B

$2.53

CUSHION,REAR FENDER

63118-32E00

$11.00

CUSHION, EXTENSION | CUT AS REQUIRED

94475-21E00

$16.15

EMBLEM, "SUZUKI"

68177-04A00-CT5

$12.83

(SILVER/BLACK)

68177-04A00-CT5

$12.83
