2016 Suzuki DR650SEL6 Rear Grip Diagram

← All diagrams

Find the part on the Rear Grip diagram for your 2016 Suzuki DR650SEL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

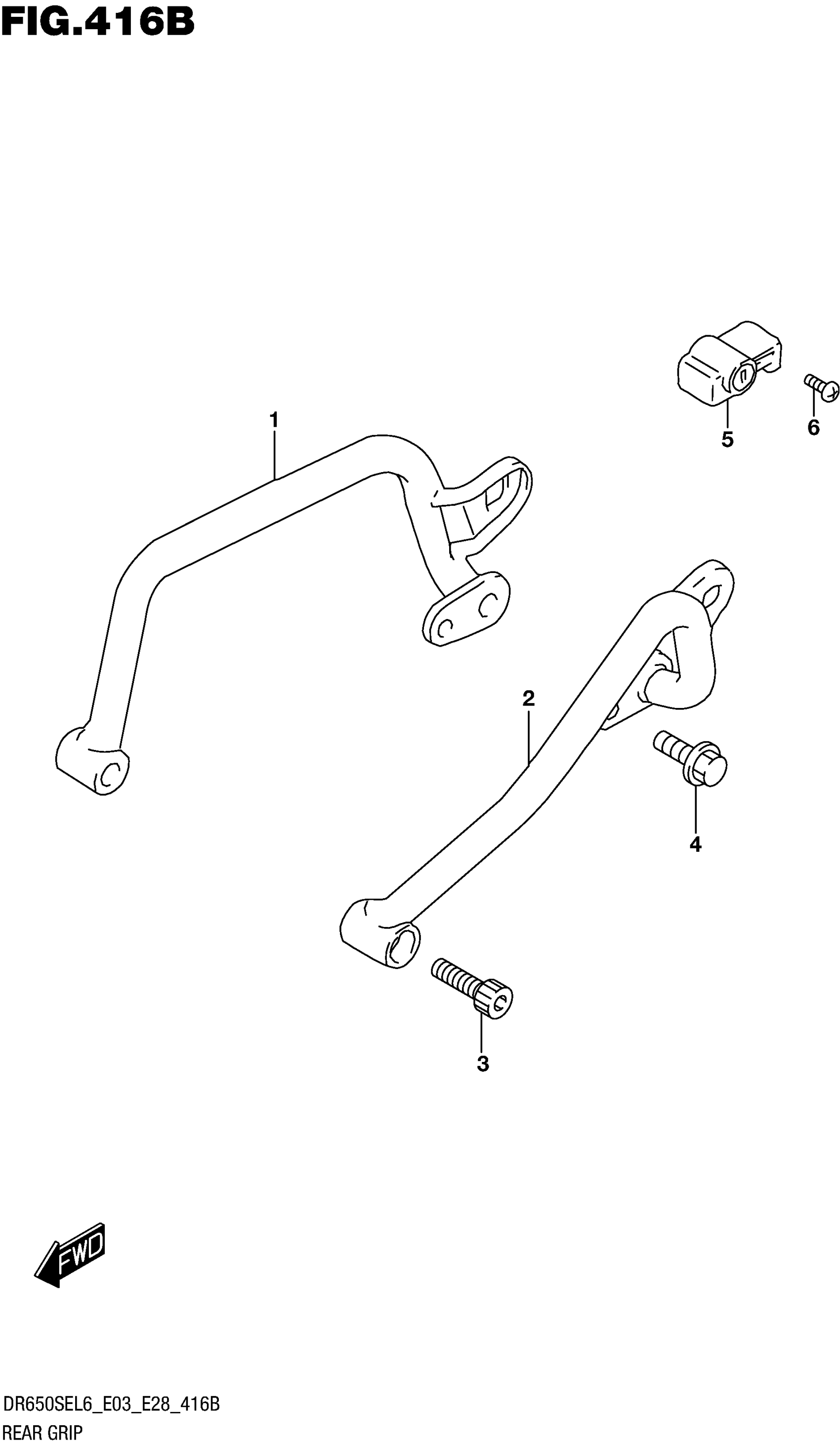

2016 Suzuki DR650SEL6 Rear Grip Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,RR RH (GLAY)

43970-32E00-YPT

1
Out of stock

2

GRIP,RR LH (GLAY)

43980-32E00-YPT

1
Out of stock

3

BOLT

07130-0825A

2
Out of stock

4

BOLT (8X16)

01550-0816A

2
Out of stock

5

LOCK SET HELMET

95700-41821

1
Out of stock

6

SCREW (6X14)

09139-06089

1
Out of stock
