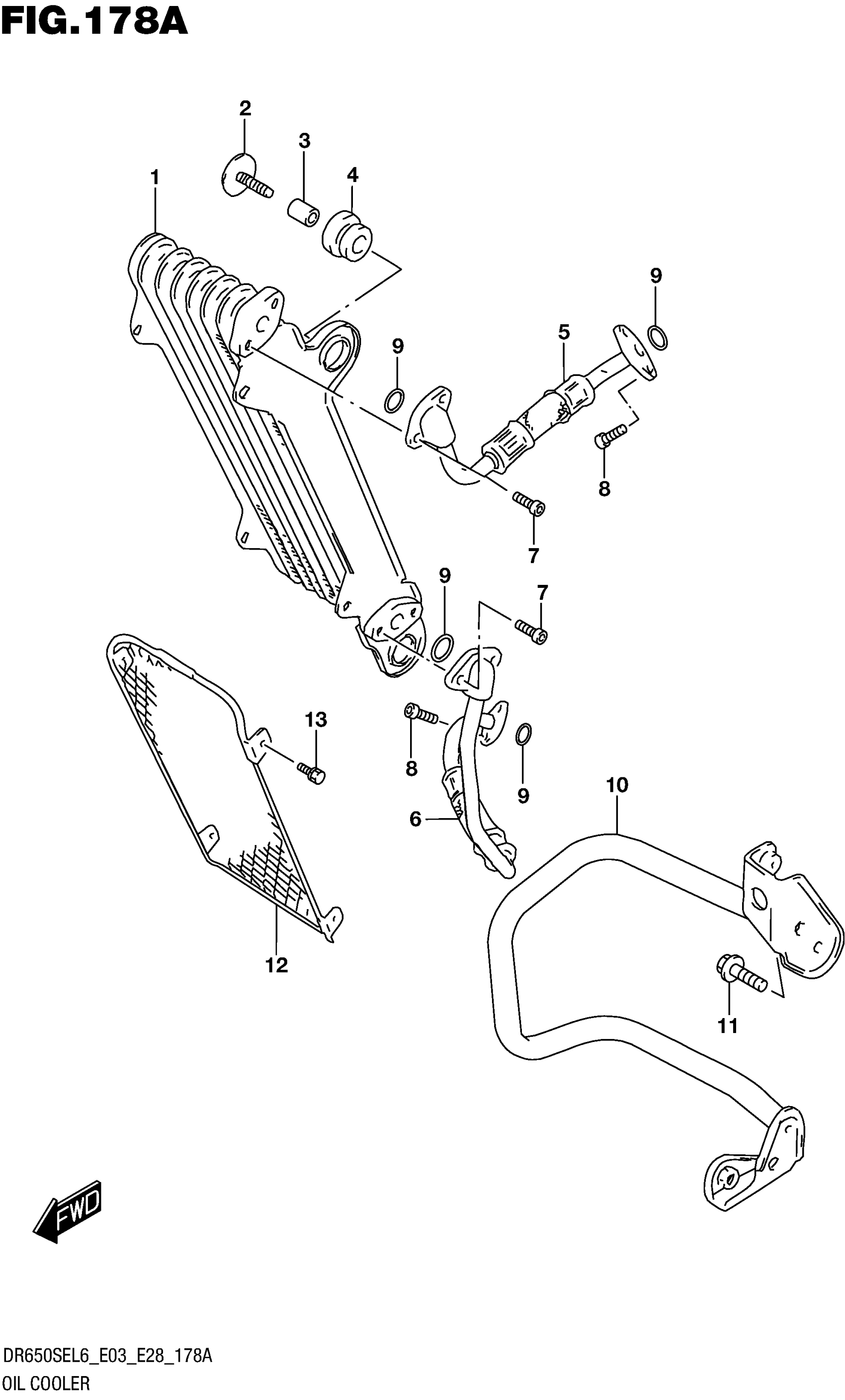

Suzuki DR650SEL6 (2016) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY,OIL

16600-32E00

$973.95

2

BOLT (8X28)

09116-08120

$5.10

3

SPACER (8.5X12X17)

09180-08193

Unavailable

4

CUSHION,OIL COOLER

16629-12D00

$4.90

5

HOSE, OIL COOLER UPPER

16460-32E00

$197.67

6

HOSE, OIL COOLER LOWER

16470-32E00

$176.07

7

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38

8

BOLT

01547-0616A

$2.01

9

O RING (D:2.4,ID:11.8)

09280-12012

$4.19

10

GUARD,OIL COOLER

16640-32E11

$93.53

11

BOLT

01550-0820A

$2.25

12

BUMPER,OIL COOLER

16650-32E00

$84.10

13

SCREW

02162-0510B

$2.77
