Description

Price

1

CRANKSHAFT SET

12000-32820

$1,207.20

2

.ROD, CONNECTING

12161-32E00

$177.00

3

.PIN, CRANK

12211-32E00

$97.10

4

.BEARING (37X47X25)

09263-37004-0C0

$57.85

5

.WASHER (37X55X1)

09160-37006

$11.52

6

.CRANKSHAFT SET, RH

12221-32810

Unavailable

7

.CRANKSHAFT, LH

12261-32E00

Unavailable

8

BEARING (40X80X18) | RH

09262-40008

$87.28

9

BEARING (45X85X19) | LH

09262-45011

$95.65

10

OIL SEAL (16X30X6) | RH

09282-16002

$8.79

11

PLATE, RH

12548-37400

$4.65

12

SCREW

02112-0508A

$1.43

13

NUT,CRANKSHAFT BRG LH

12664-04F00

$54.60

14

GEAR, PRIMARY DRIVE (NT:28)

21111-32E00

$86.48

15

NUT

09140-20013

$3.90

16

WASHER

09164-20003

$4.18

17

KEY

09420-05007

$5.00

18

PISTON

12111-32E00-0F0

$127.28

19

RING SET,PISTON

12140-32E10

$47.66

20

PIN, PISTON

12151-14A01

$22.03

21

CIRCLIP

09381-23003

$1.52

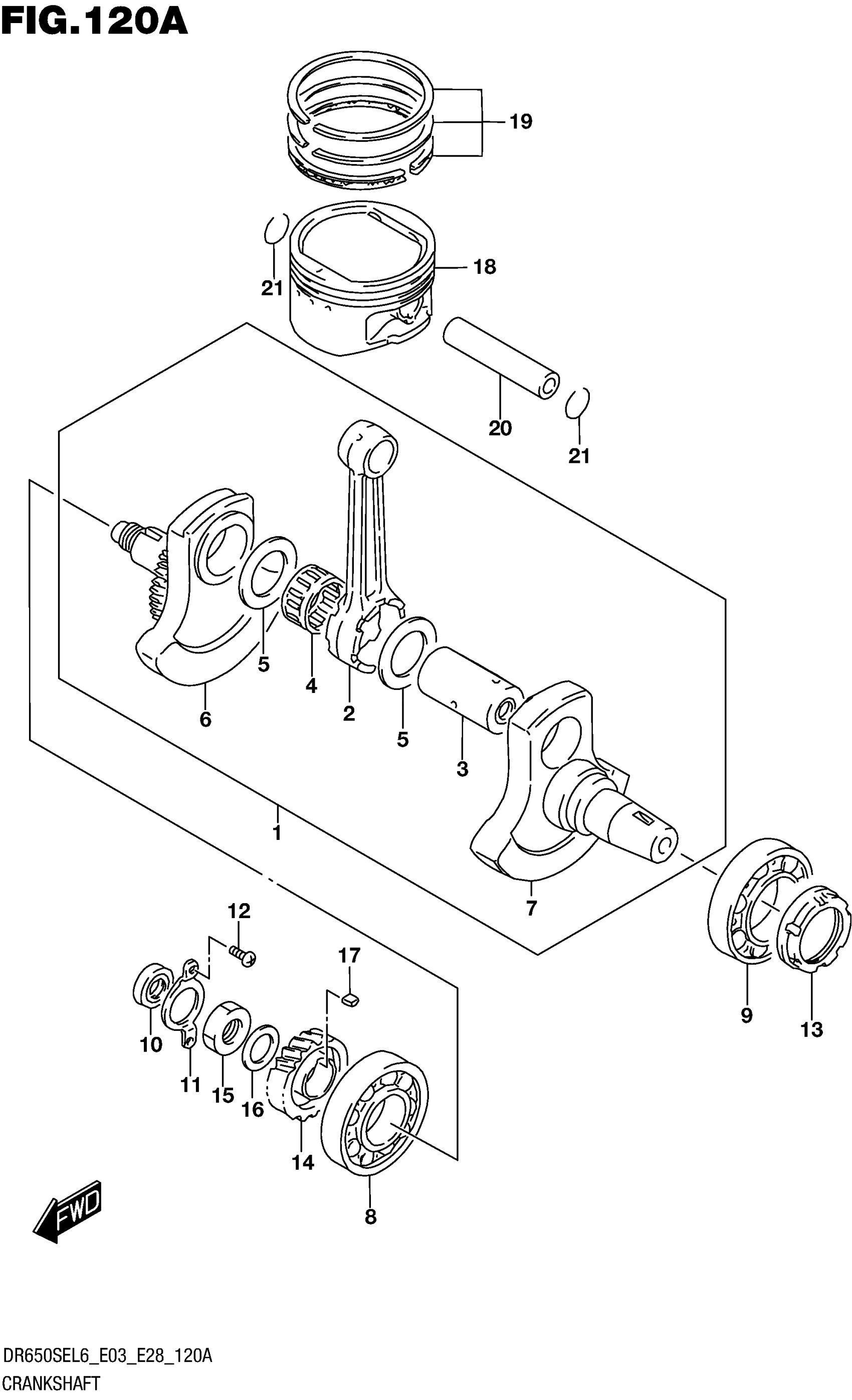

Suzuki DR650SEL6 (2016) CRANKSHAFT Diagram
