Description

Price

1

BODY,REAR FENDER FRONT

63112-32E00

$84.10

2

BODY,RR FENDER RR (WHITE)

63113-32E30-30H

$147.38

3

NUT, FENDER REAR

47153-19C01

$8.97

4

EXTENSION,REAR FENDER

63311-32E00

$70.33

5

MUD GUARD,REAR FENDER

63411-32E00

Unavailable

6

BOLT (6X16)

09113-06001

$2.75

7

WASHER

09169-06073

$3.08

8

WASHER (6.3X16X1)

09169-06053

$1.10

9

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

10

BOLT

01550-0616B

$2.53

11

CUSHION,REAR FENDER

63118-32E00

$11.00

12

CUSHION, EXTENSION | CUT AS REQUIRED

94475-21E00

$16.15

13

EMBLEM, "SUZUKI" (SILVER/WHITE)

68177-04A00-FH7

$12.83

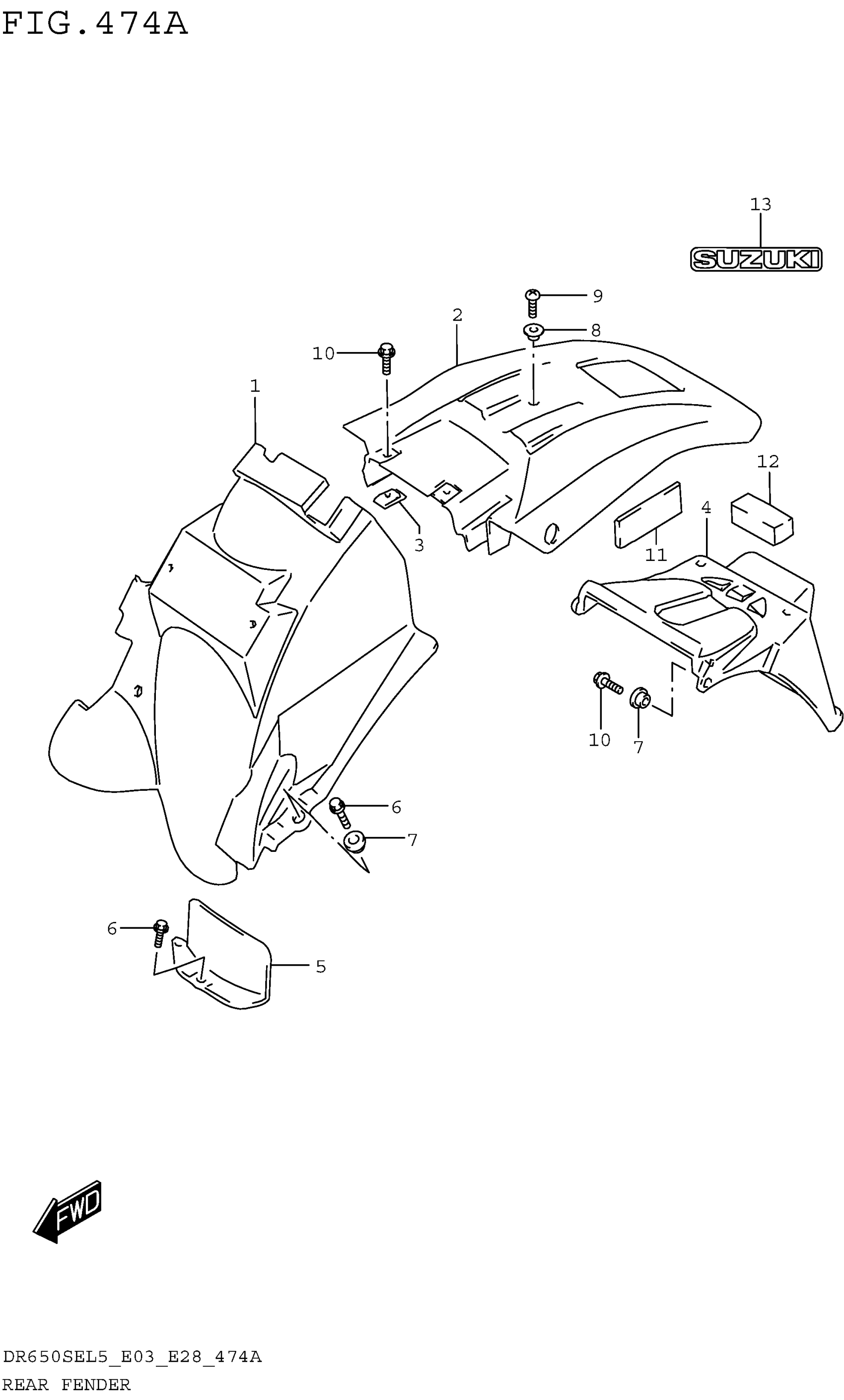

Suzuki DR650SEL5 (2015) REAR FENDER Diagram
