2015 Suzuki DR650SEL5 OIL Cooler Diagram

← All diagrams

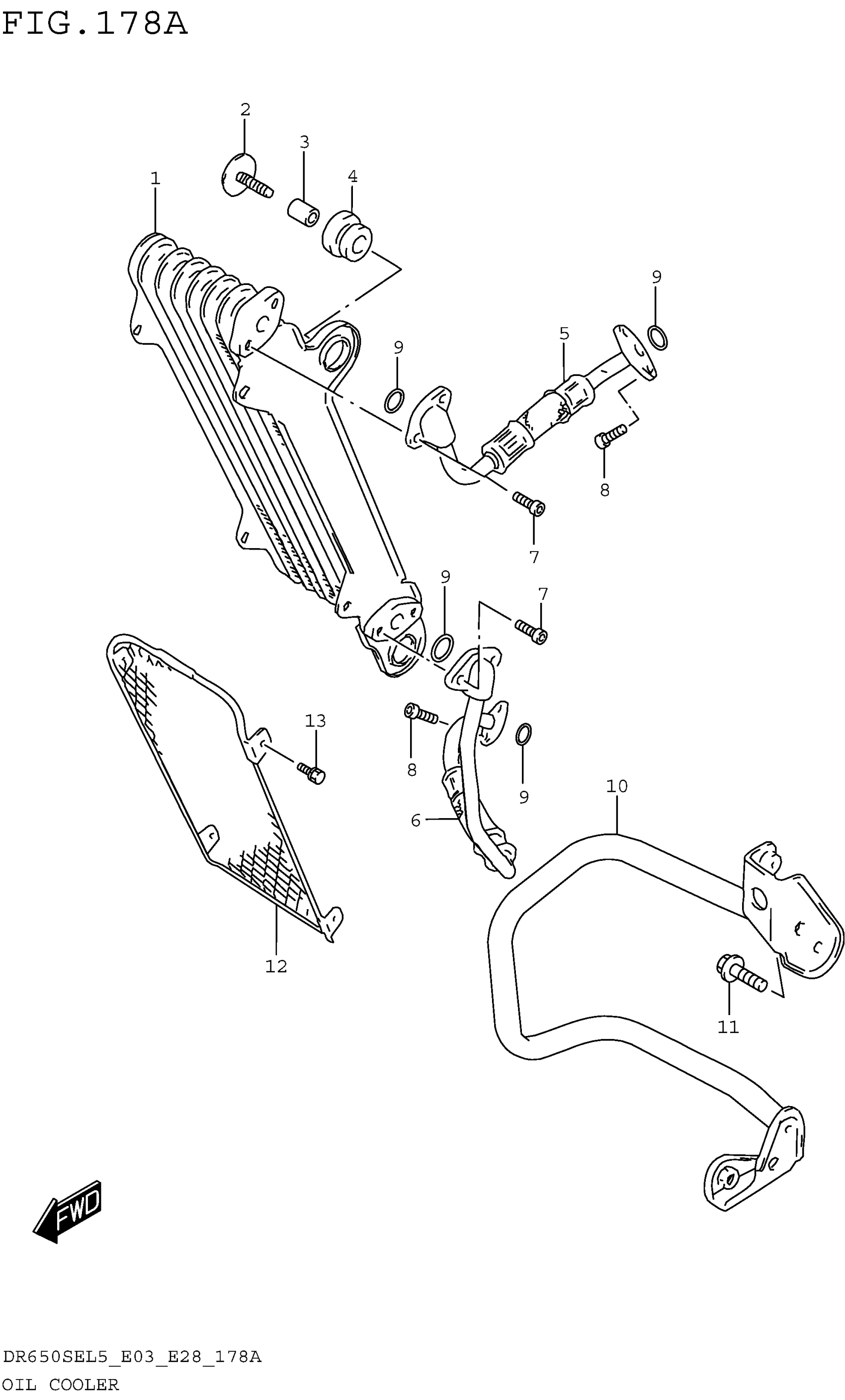

Find the part on the OIL Cooler diagram for your 2015 Suzuki DR650SEL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DR650SEL5 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY,OIL

16600-32E00

1
Out of stock

2

BOLT (8X28)

09116-08120

2
Out of stock

3

SPACER (8.5X12X17)

09180-08193

2
Out of stock

4

CUSHION,OIL COOLER

16629-12D00

2
Out of stock

5

HOSE, OIL COOLER UPPER

16460-32E00

1
Out of stock

6

HOSE, OIL COOLER LOWER

16470-32E00

1
Out of stock

7

BOLT This part replaces 07130-0616A.

07130-0616B

4
Out of stock

8

BOLT

01547-0616A

4
Out of stock

9

O RING (D:2.4,ID:11.8)

09280-12012

4
Out of stock

10

GUARD,OIL COOLER

16640-32E11

1
Out of stock

11

BOLT

01550-0820A

1
Out of stock

12

BUMPER,OIL COOLER

16650-32E00

1
Out of stock

13

SCREW

02162-0510B

4

$2.77

In stock
