Description

Price

1

HANDLEBAR (BLACK)

56110-32E00-291

$135.05

2

BALANCER SET HANDLEBAR This part replaces 56200-29831.

56200-29832

$26.54

3

SCREW

02122-0660B

$2.80

4

WASHER (6.5X16X4)

09160-06131

$2.53

5

.EXPANDER HANDLE BALANCER

56272-10G20

$6.75

6

NUT

56273-10G10

$7.92

7

MIRROR ASSY RR VIEW R

56500-06G30

$167.98

8

MIRROR ASSY RR VIEW L

56600-06G30

$167.98

9

CABLE ASSY,CLUTCH

58200-32E01

$35.12

10

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

11

STOPPER,CLUTCH CABLE

58634-32E00

$16.92

12

CLAMP This part replaces 09403-09307.

09403-09328

$1.97

13

CABLE ASSY,THROTTLE

58300-32E00

$77.05

14

CABLE,STARTER

58410-32E00

$34.57

15

CLIP

09408-00066

$2.25

16

CLAMP (L:235)

09407-25401

$4.21

17

BOLT

01550-0612B

$2.38

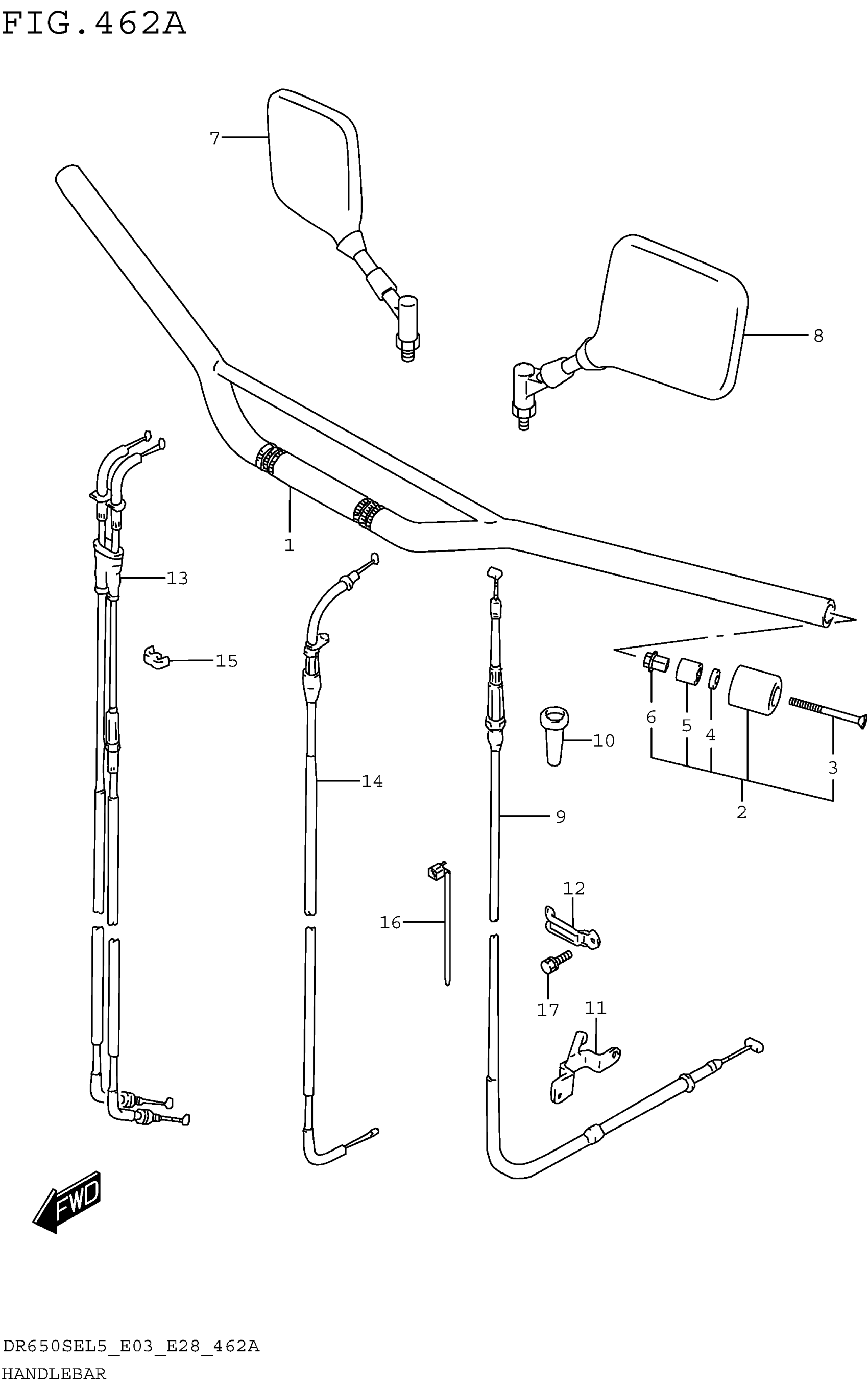

Suzuki DR650SEL5 (2015) HANDLEBAR Diagram
