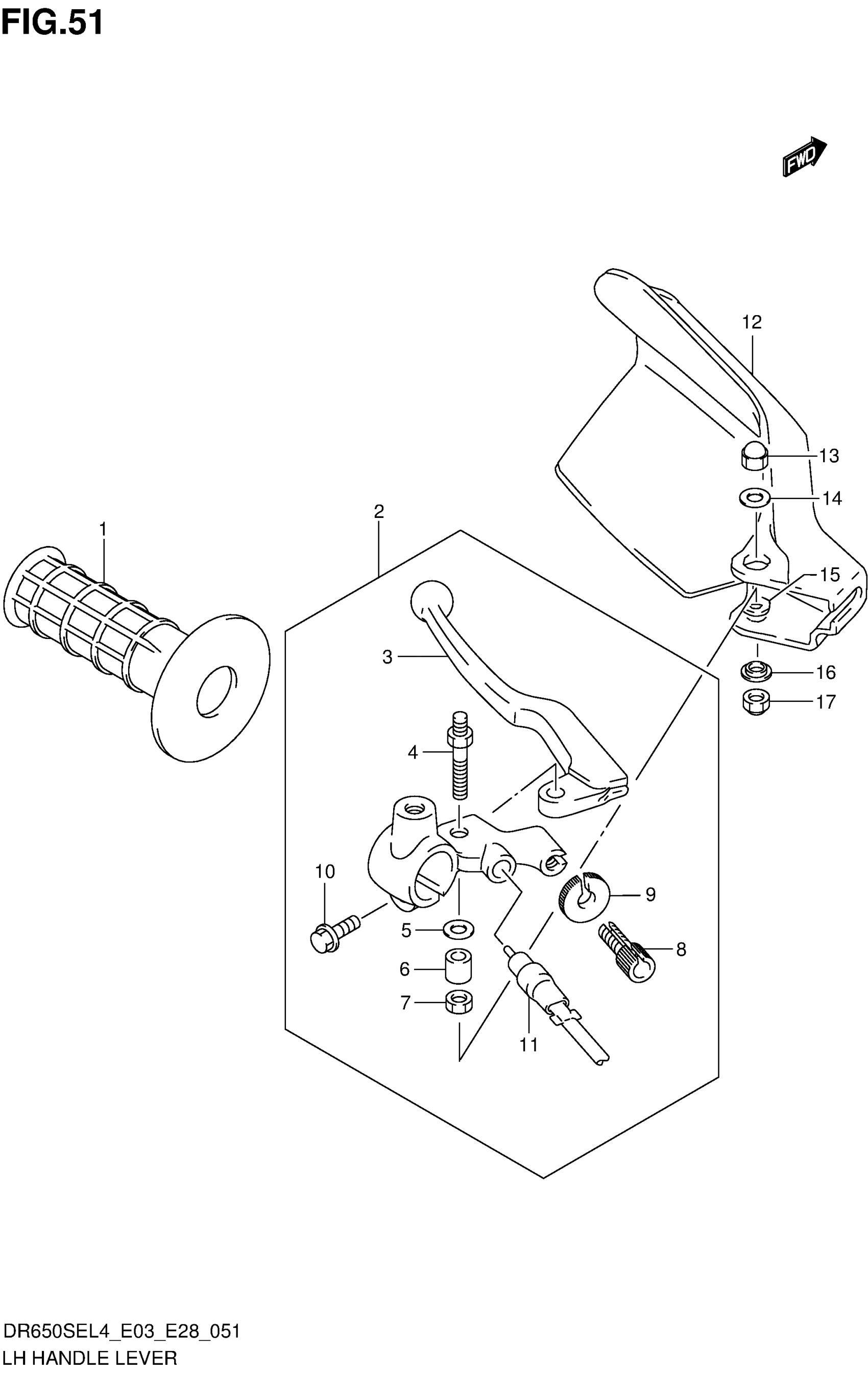

Suzuki DR650SEL4 (2014) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP L

57211-12D00

$15.29

2

LEVER ASSY,CLUTCH This part replaces 57500-12E30.

57500-12E31

$119.75

3

LEVER, CLUTCH

57421-12E30

$28.31

4

BOLT

57531-12E30

$37.20

5

WASHER

57533-12E30

$11.42

6

SPACER

57532-12E30

$24.72

7

NUT

08319-2106B

$2.31

8

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.29

9

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

10

..BOLT

01547-0620B

$2.43

11

SWITCH ASSY, CLUTCH

57560-13E02

$20.38

12

COVER,KNUCKLE LH (WHITE)

57541-31D20-30H

$51.20

12

COVER,KNUCKLE LH (BLACK)

57541-31D20-YUD

$55.42

13

NUT

08313-1006B

$2.28

14

WASHER (6.5X20X1.6)

09160-06154

$2.17

15

WASHER (6.5X16X1.2)

09160-06019

$1.38

16

WASHER

09169-06055

$2.02

17

NUT

08319-2106A

$1.89
