2014 Suzuki DR650SEL4 Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 2014 Suzuki DR650SEL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

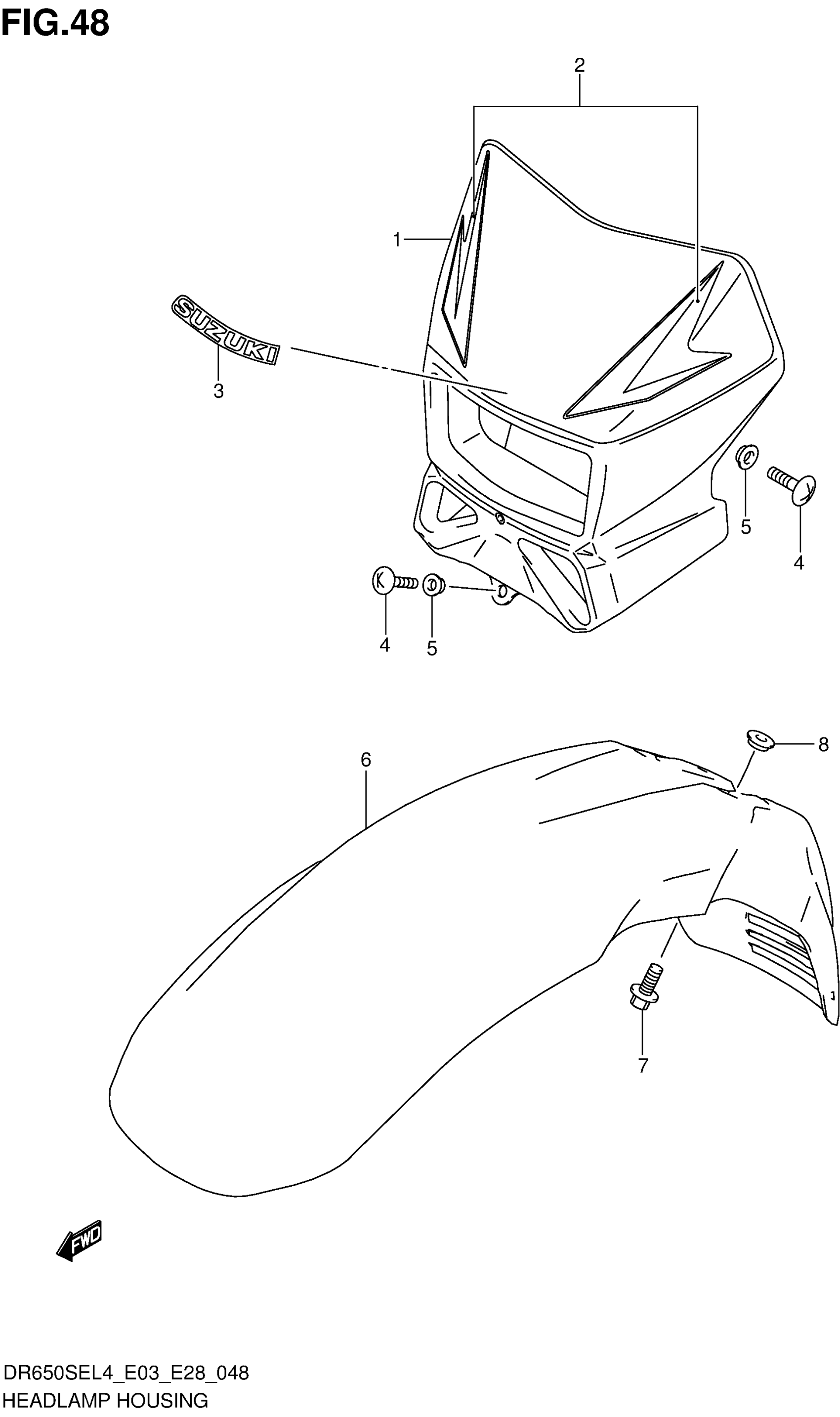

2014 Suzuki DR650SEL4 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER HEADLAMP (WHITE)

51811-29F50-30H

1

$126.40

In stock

1

COVER, HEAD LAMP (GRAY)

51811-29F50-YUD

1
Out of stock

2

TAPE SET,HEADLA | FOR 30H This part replaces 68720-32E00-HLW.

68720-32E01-HLW

1
Out of stock

2

TAPE SET,HEADLA | FOR YUD This part replaces 68720-32E00-JKA.

68720-32E01-JKA

1
Out of stock

3

EMBLEM,"SUZUKI" | FOR 30H This part replaces 68281-01H00-YD8.

68281-01H01-YD8

1
Out of stock

3

EMBLEM,"SUZUKI" | FOR YUD This part replaces 68281-01H00-019.

68281-01H01-019

1
Out of stock

4

SCREW

02142-0612A

3
Out of stock

5

WASHER

09169-06071

3
Out of stock

6

FENDER,FRONT (WHITE)

53111-13E00-30H

1
Out of stock

6

FENDER,FRONT (GRAY)

53111-13E00-YUD

1
Out of stock

7

BOLT (6X16)

09116-06170

4

$2.68

In stock

8

WASHER

09169-06073

4
Out of stock
← Headlamp Magneto →
