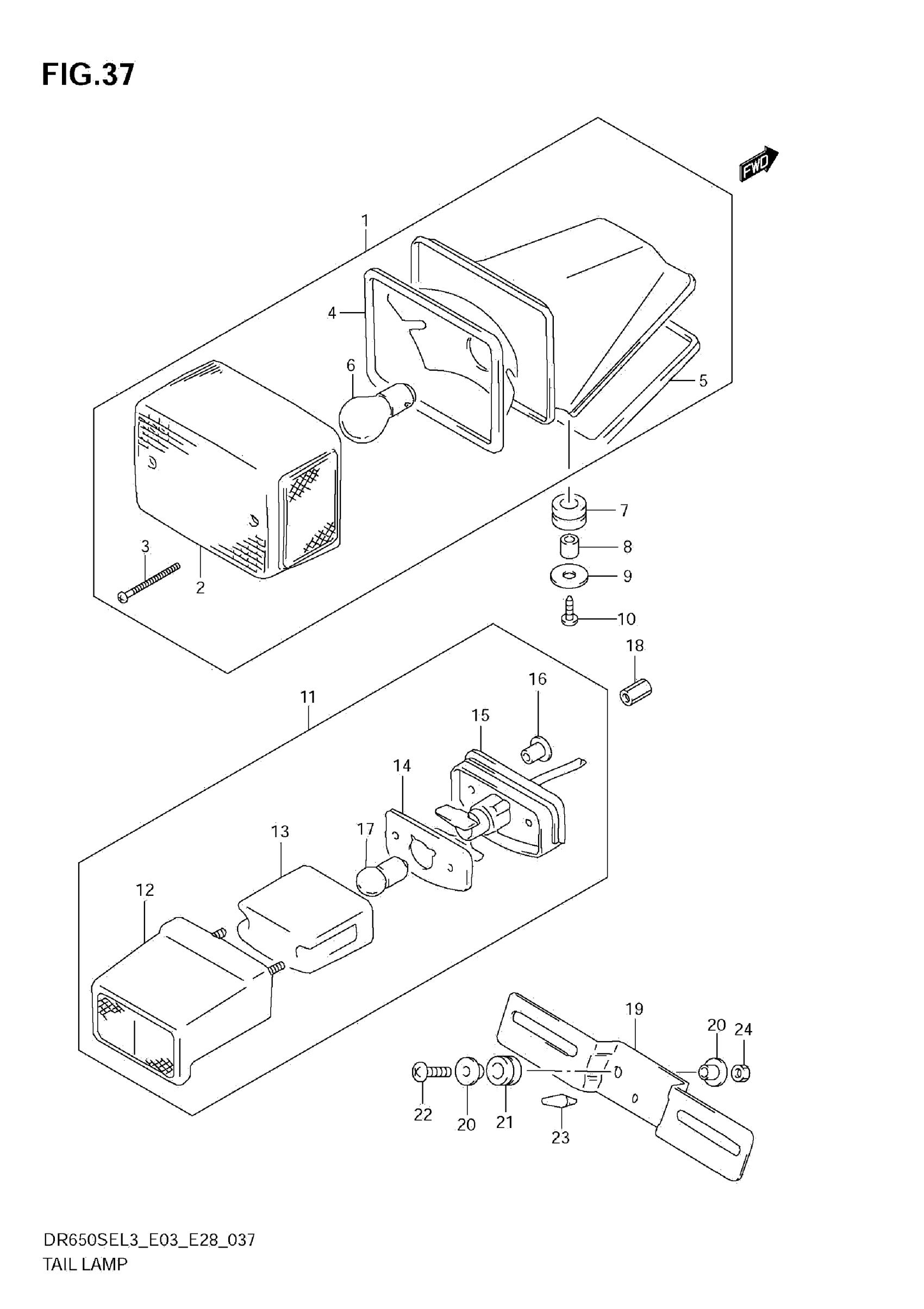

Find the part on the Tail Lamp diagram for your 2013 Suzuki DR650SEL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki DR650SEL3 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,REAR COMB

35710-32E30

1
Out of stock

2

LENS

35712-14D30

1
Out of stock

3

SCREW (4X45)

09125-04501

2

$3.13

In stock

4

1

$8.91

In stock

5

GASKET | FOR BASE

35717-32E30

1
Out of stock

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

7

CUSHION

09320-09016

3
Out of stock

8

SPACER (6.1X8X9.5)

09180-06248

3
Out of stock

9

.WASHER (6.5X20X1.6)

09160-06088

3

$1.80

In stock

10

SCREW

02142-0625B

3

$2.28

In stock

11

LAMP ASSY,LICENSE

35910-32E30

1
Out of stock

12

COVER, LENS

35917-17C00

1
Out of stock

13

LENS

35912-38A30

1
Out of stock

14

GASKET

35913-38A30

1
Out of stock

15

CUSHION

35761-24B31

1
Out of stock

16

SPACER

35766-24B30

2
Out of stock

17

1

$2.55

In stock

18

NUT, LICENSE LAMP

09140-04006

2
Out of stock

19

BRACKET,LICENSE PLATE

35927-26E30

1
Out of stock

20

WASHER

09169-06073

4
Out of stock

21

CUSHION

09320-09016

2
Out of stock

22

SCREW

02142-0620A

2
Out of stock

23

CUSHION

09321-06023

1
Out of stock

24

NUT

08310-0006A

2
Out of stock
