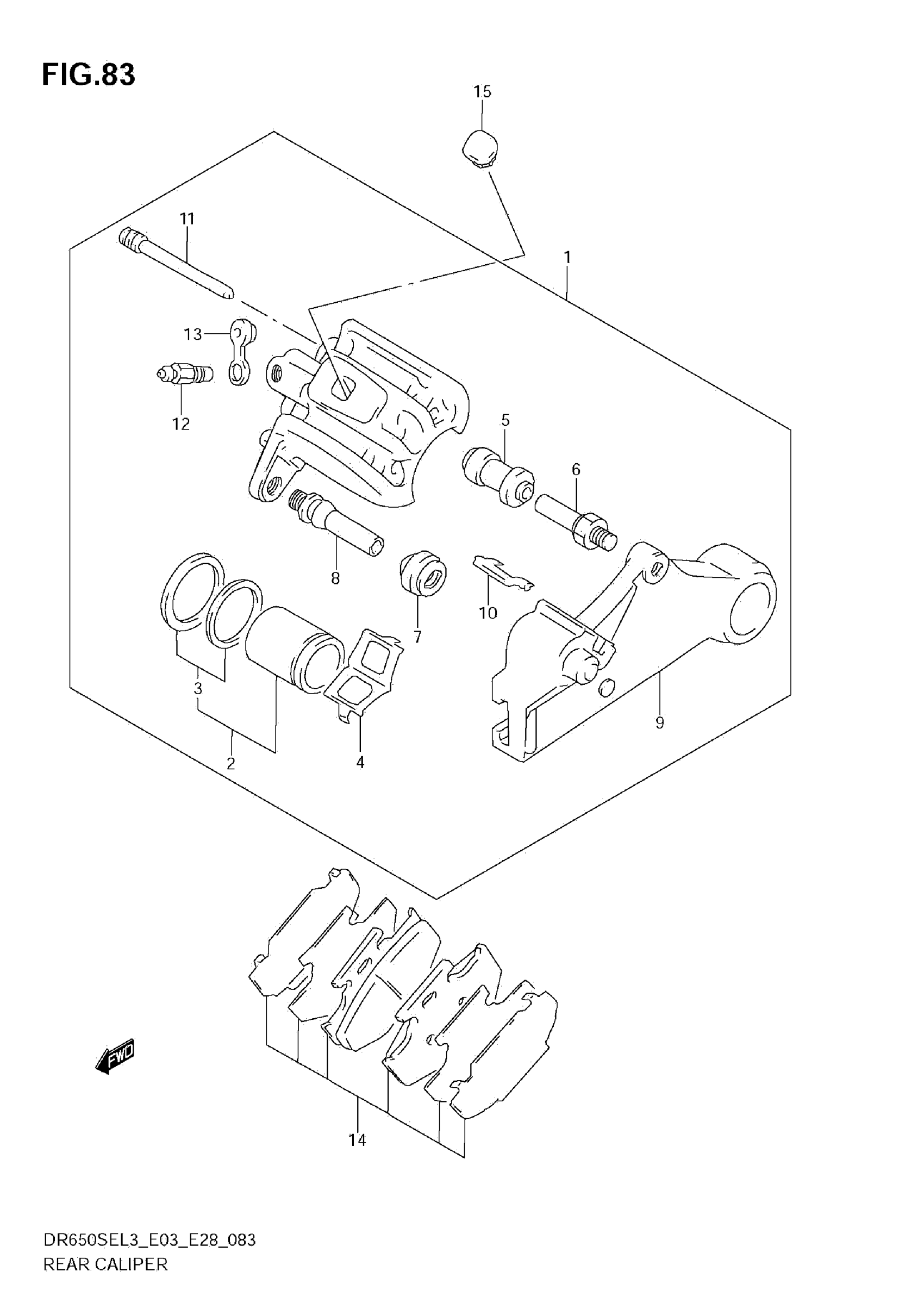

Suzuki DR650SEL3 (2013) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,REAR

69100-32E00-999

$320.00

2

PISTON SET

69100-43830

$59.73

3

SEAL SET, PISTON

69100-13810

$9.04

4

SPRING

59315-27C10

$13.20

5

BOOT

59386-13A00

$7.28

6

PIN

59382-27C30

$8.54

7

BOOT

59303-14500

$5.06

8

PIN

59305-27C00

$26.52

9

BRACKET

69150-32E00

$169.70

10

RETAINER

69113-43D00

$9.97

11

.PIN HANGER

69345-43D00

$10.88

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

PAD & SHIM SET

69100-32830

$52.78

15

COVER, CALIPER BODY

69171-14D00

Unavailable
