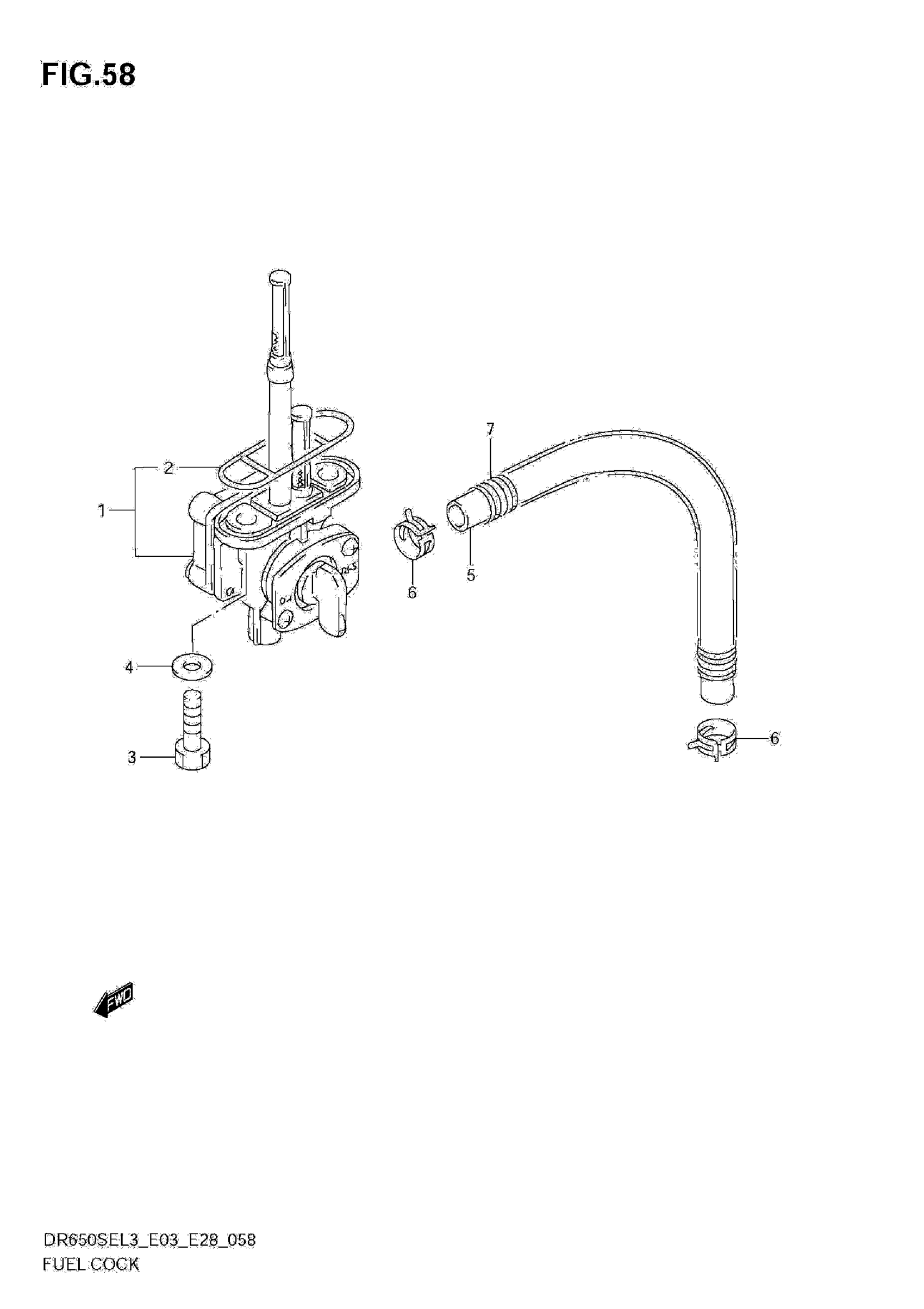

Suzuki DR650SEL3 (2013) FUEL COCK (DR650SEL3 E33) Diagram

#

Description

Price

1

COCK ASSY,FUEL This part replaces 44300-32E00.

44300-32E01

$89.43

2

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$4.90

3

BOLT This part replaces 09128-06006.

09128-06057

$1.64

4

GASKET (6.4X11.5X0.8)

09168-06026

$2.80

5

HOSE,FUEL (7X11X160) This part replaces 44421-32EA0.

44421-32EA1

$14.28

6

CLIP (ID:10.5,H:8)

09401-10409

$2.28

7

SPRING

09440-13041

$3.56
