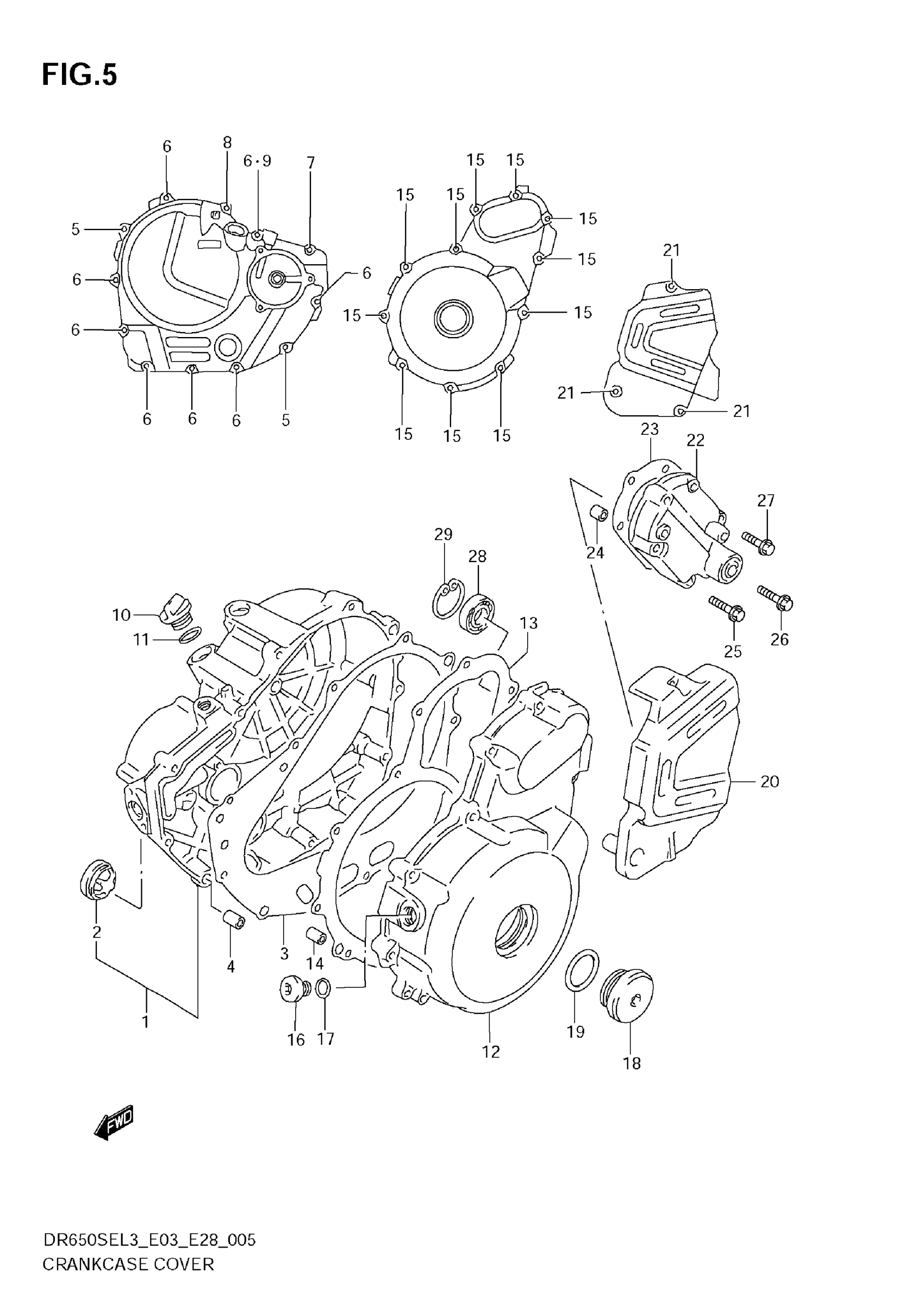

Suzuki DR650SEL3 (2013) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-32E00

$375.68

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-32E00

$19.30

4

PIN

04211-09149

$1.64

5

BOLT (6X45)

09103-06224

$2.68

6

BOLT (6X35)

09103-06214

$2.57

7

BOLT (6X30)

09103-06213

$2.53

8

BOLT (6X25)

09103-06212

$2.53

9

GASKET (5.8X13X1.2)

09168-06023

$2.01

10

PLUG

09259-20019

$10.55

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

12

COVER,MAGNETO

11351-32E01

$304.95

13

GASKET

11483-32E00

$16.94

14

PIN

04211-09149

$1.64

15

BOLT (6X30)

09103-06213

$2.53

16

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.80

17

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

18

PLUG (SILVER)

09259-36016-20H

$12.45

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

COVER,ENG SPROCKET

11361-32E00

$102.83

21

BOLT (6X35)

09103-06214

$2.57

22

COVER,GEAR SHF

11371-12D30

$98.00

23

GASKET

11485-12D01

$5.34

24

PIN

04211-09149

$1.64

25

BOLT

01547-0635A

$2.31

26

BOLT

01547-0630A

$2.31

27

BOLT

01547-0620A

$2.01

28

BEARING (12X28X8)

09262-12001

$16.90

29

CIRCLIP

08331-41289

$2.92
