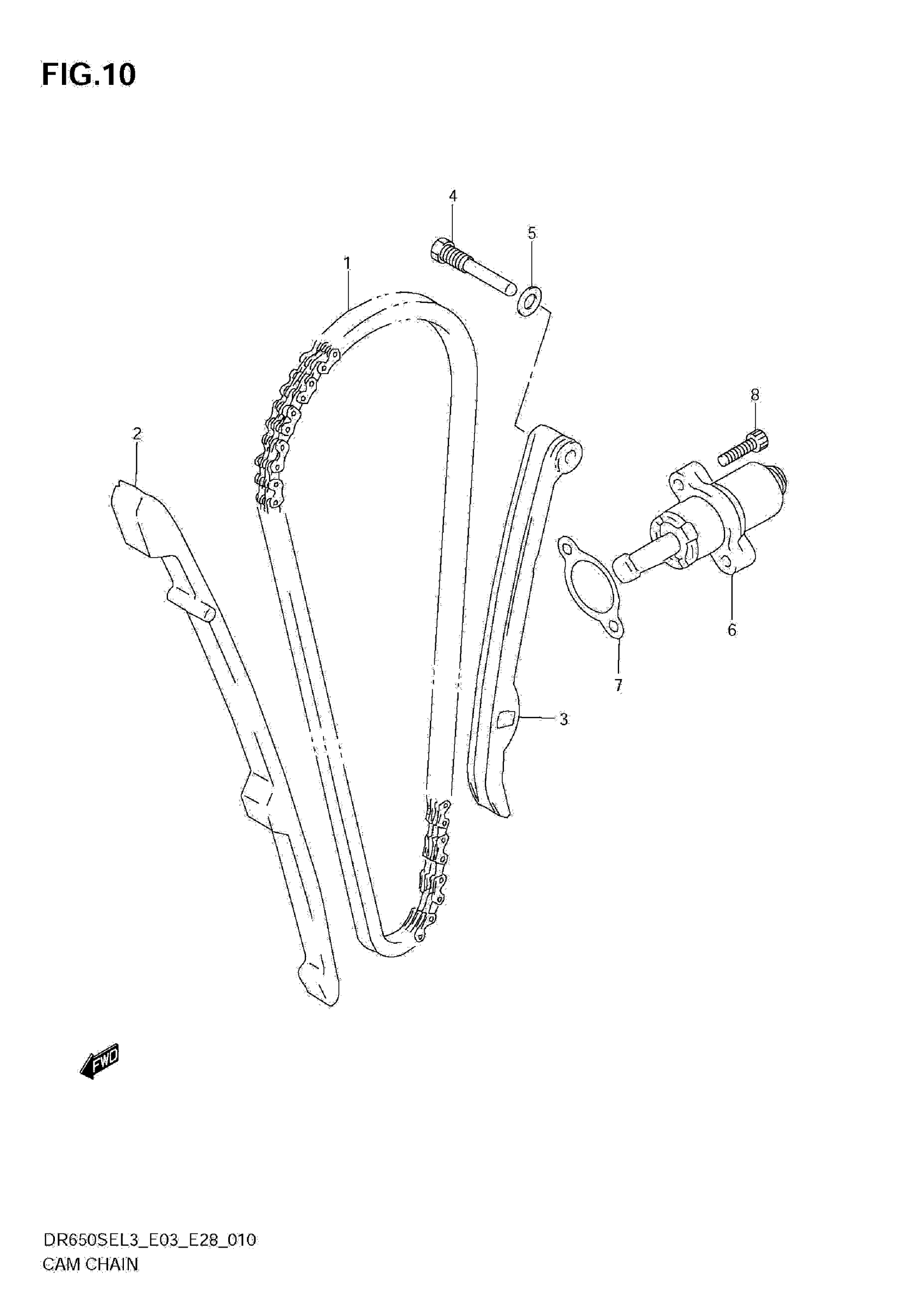

Suzuki DR650SEL3 (2013) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAM SHAFT DRIVE (120LE) | 120LE

12760-32E00

$184.22

2

GUIDE,CAM CHAIN This part replaces 12771-32E00.

12771-32E01

$49.80

3

TENSIONER,CAM CHAIN This part replaces 12811-32E00.

12811-32E01

$48.98

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1)

09168-08016

$1.64

6

ADJUSTER ASSY, TENSIONER

12830-32E00

$107.12

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

$2.97

8

BOLT (6X25)

07130-0625A

$2.64
