2011 Suzuki DR650SEL1 Stand/rear Brake Diagram

← All diagrams

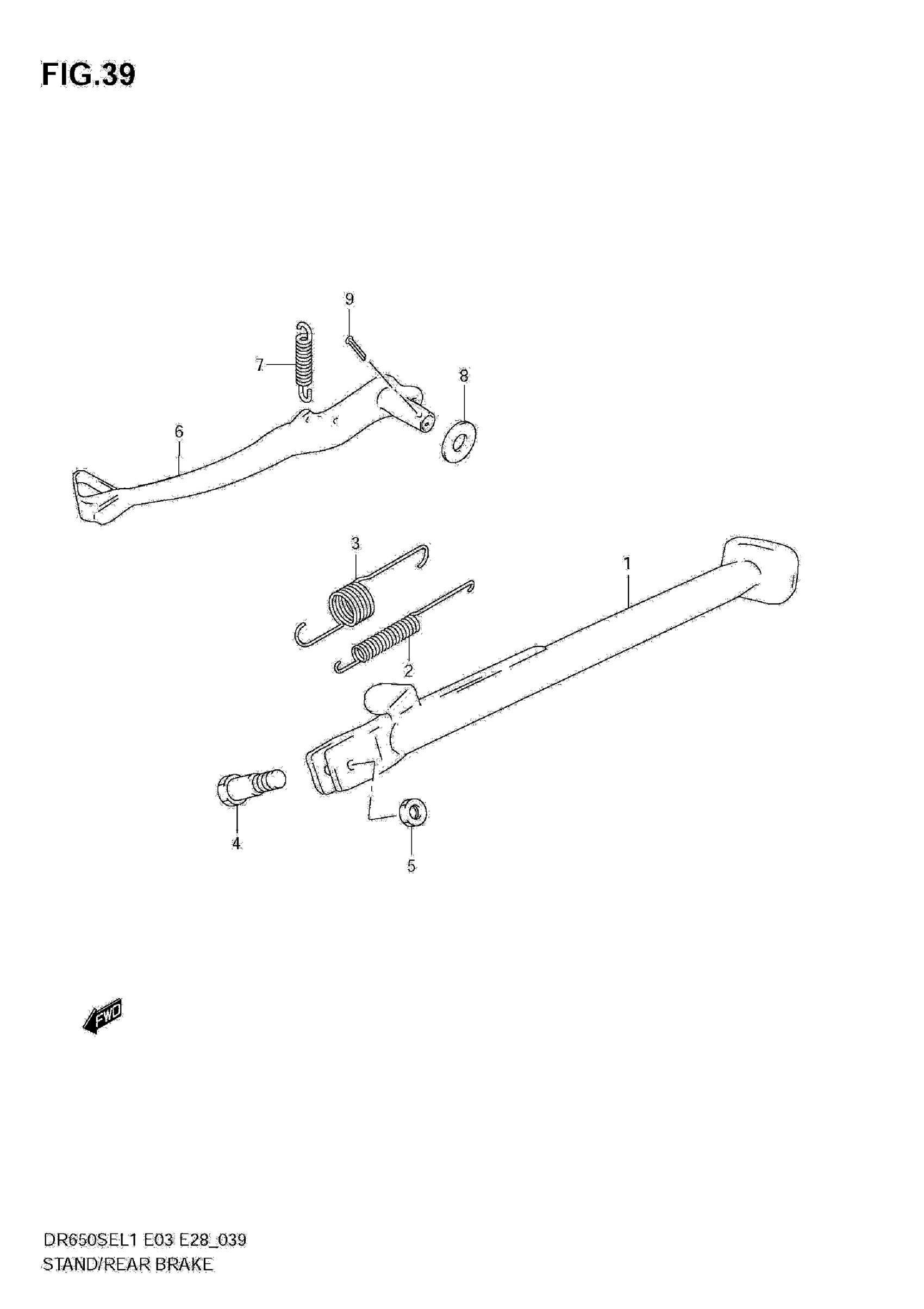

Find the part on the Stand/rear Brake diagram for your 2011 Suzuki DR650SEL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki DR650SEL1 Stand/rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-32E20

1
Out of stock

2

SPRING

09443-12045

1
Out of stock

3

SPRING

09443-19010

1

$6.41

In stock

4

BOLT (10X30)

09111-10047

1
Out of stock

5

NUT

09159-10097

1
Out of stock

6

PEDAL,BRAKE

43110-32E00

1
Out of stock

7

SPRING

09443-11030

1
Out of stock

8

WASHER (15.5X24X2.3)

09160-15049

1
Out of stock

9

COTTER PIN

04111-3025A

1
Out of stock
