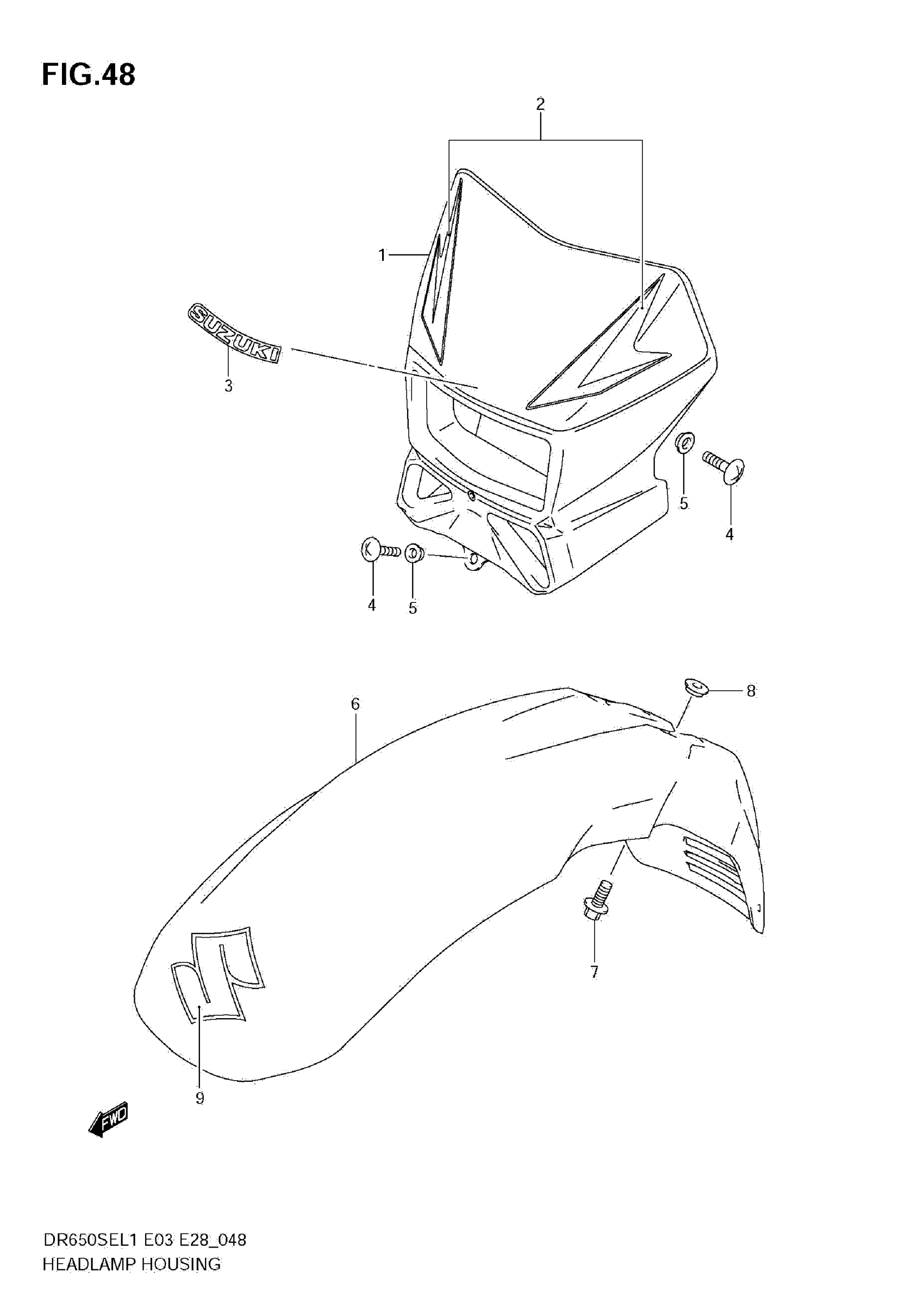

Suzuki DR650SEL1 (2011) HEADLAMP HOUSING Diagram

#

Description

Price

1

COVER, HEAD LAMP (BLACK)

51811-29F50-019

$87.04

1

COVER HEADLAMP (WHITE)

51811-29F50-30H

$126.40

2

TAPE SET | FOR 019

68720-32E00-HLV

Unavailable

2

TAPE SET,HEADLA | FOR 30H This part replaces 68720-32E00-HLW.

68720-32E01-HLW

$42.25

3

EMBLEM,"SUZUKI" This part replaces 68281-01H00-YD8.

68281-01H01-YD8

$12.82

4

SCREW

02142-0612A

$1.37

5

WASHER

09169-06071

$2.50

6

FENDER,FRONT (BLACK)

53111-13E00-019

$146.28

6

FENDER,FRONT (WHITE)

53111-13E00-30H

$179.90

7

BOLT (6X16)

09116-06170

$2.50

8

WASHER

09169-06073

$3.08

9

EMBLEM,S(SILVER This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$13.10
